Wacker Neuson BS 50-4 Repair Manual

Ramming System Rammer Repair
100 wc_tx001547gb.fm

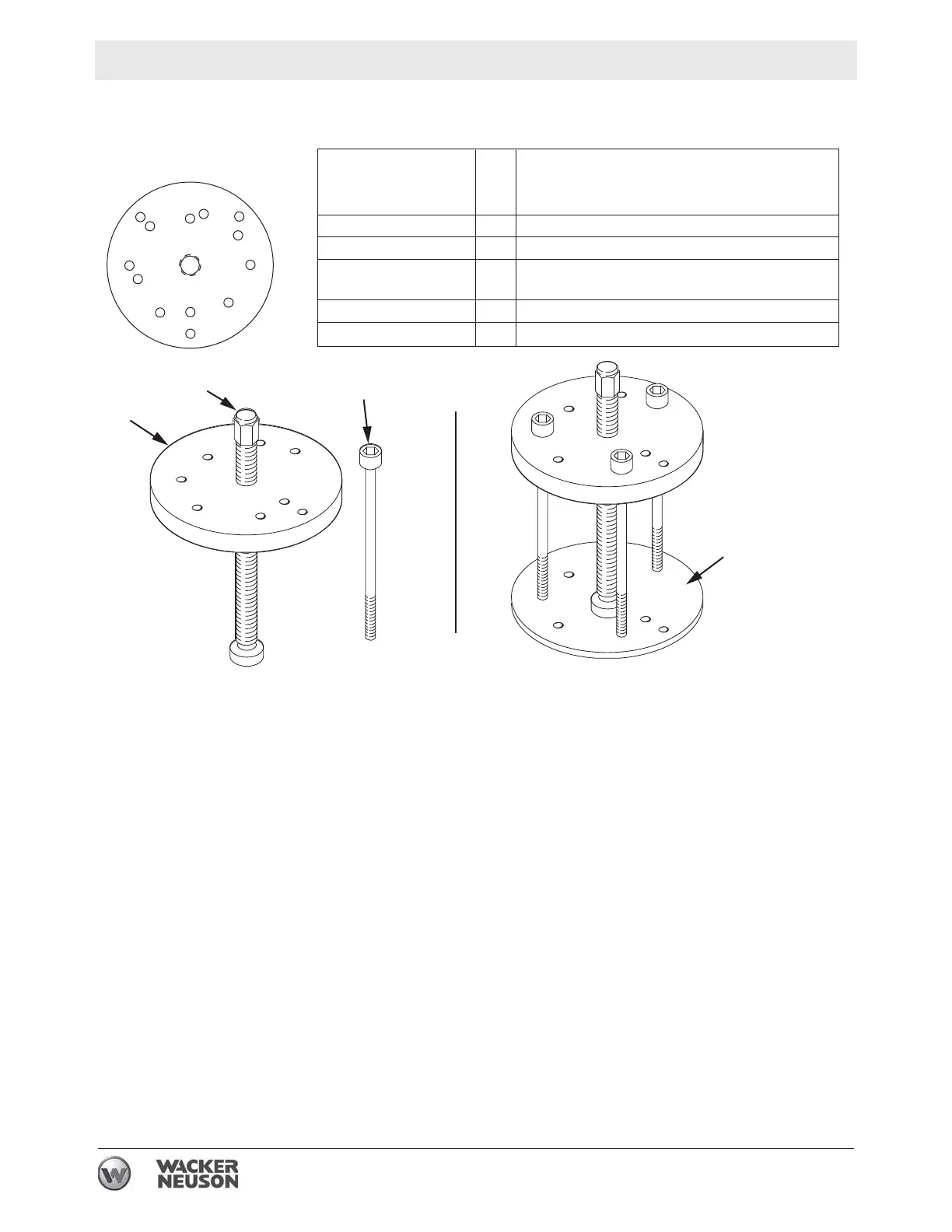

Spring Box Tool Method
a
b
d
c
wc_gr001326
4
3
1
5
3
2
4
5
1
3
4
5
2
Screw Position Qty. Machine
1 2 BS45Y, BS52Y, ES45Y, ES52Y
2 2 BS60Y, GVR151Y
3 3 BS62Y, BS65y, BS600, BS650, BS700, BS60-2i,
BS70-2i, BS65V, BS60-4, DS72Y, DS720, DS70
4 3 BS92Y, BS105Y
5 3 BS500, BS50-2I, BS50-4
Schraube position
La posicion del tornillo
La position de vis
St.
Maschine
Qté.
Cont.
Máquina
Machine

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
