Repair Engine and Upper Machine Components

wc_tx001546gb.fm 71

4.23 Replacing the Carburetor (WM 100 Engines)

Requirements

• Machine shut down and cool

• Loctite® 243 or equivalent

• Torque wrench

Removal

Perform the procedure below to remove the engine.

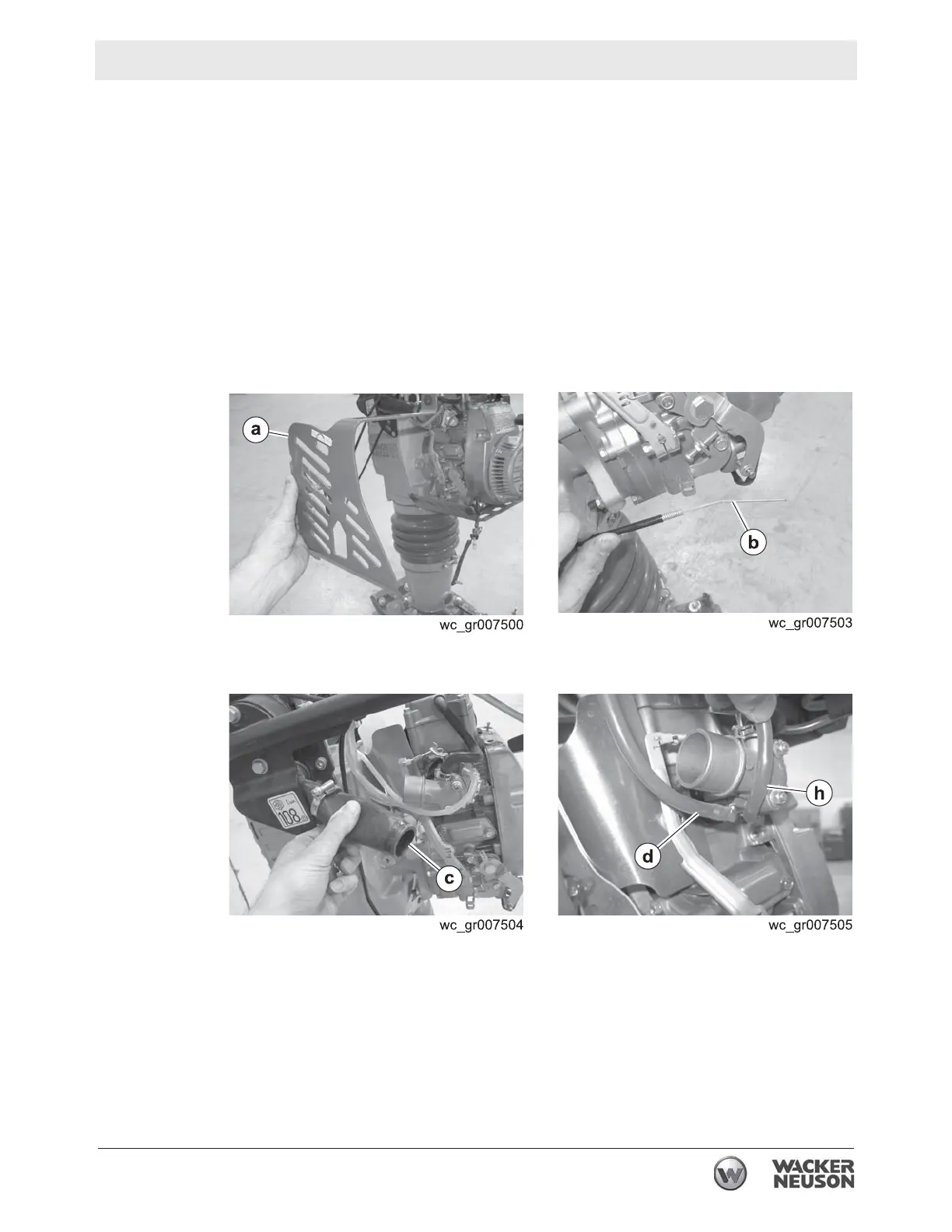

4.23.1 Disconnect the spark plug.

4.23.2 Remove the side guard

(a).

4.23.3 Disconnect the throttle cable

(b).

4.23.4 Disconnect the air hose

(c).

4.23.5 Disconnect the fuel hose

(d) and the compensation hose (h).

4.23.6 Disconnect the hose

(e).
