Wacker Neuson BS 50-4 Repair Manual

Ramming System Rammer Repair
92 wc_tx001547gb.fm

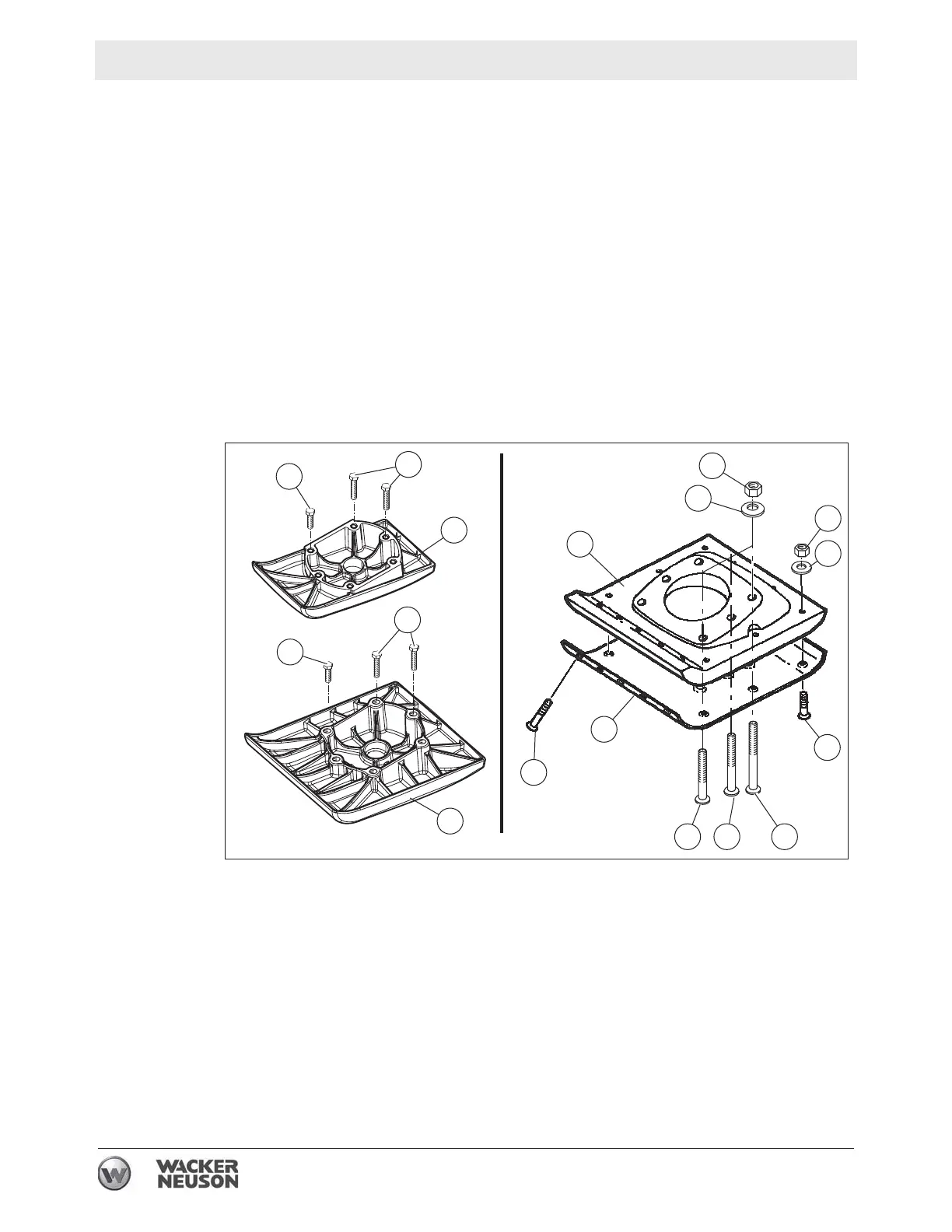

5.2 Replacing the Ramming Shoe
Requirements
• Torque wrench
• Lifting device capable of lifting the machine
Removal
Perform the procedure below to remove the shoe.
5.2.1 Support the machine with a lifting device capable of lifting the weight
of the machine. See chapter Technical Data for weights.
5.2.2 On machines with cast iron shoes, remove the hex head screws (a
and b) that hold the shoe (c) to the machine. For all others, remove
the lock nuts (d) and washers (e) that hold the ramming shoe (f) and
the bottom plate
(g) to the machine.
5.2.3 Raise the machine off the shoe. Position the machine in a secure
place.
5.2.4 Remove the plow bolts
(m), (n), and (o).
5.2.5 Remove the plow bolts
(i and j), lockwashers (k), and lock nuts (l).
5.2.6 Separate the shoe (g) from the bottom plate (f).
wc_gr007519
a
d
e
k
l
f
g
i
j
c
c
b
a
b
m n o

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
