Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
62 wc_tx001546gb.fm
4.19 Replacing the Walbro Carburetor (auto-release choke models)
Removal
4.19.1 Stop the machine and allow it to cool.

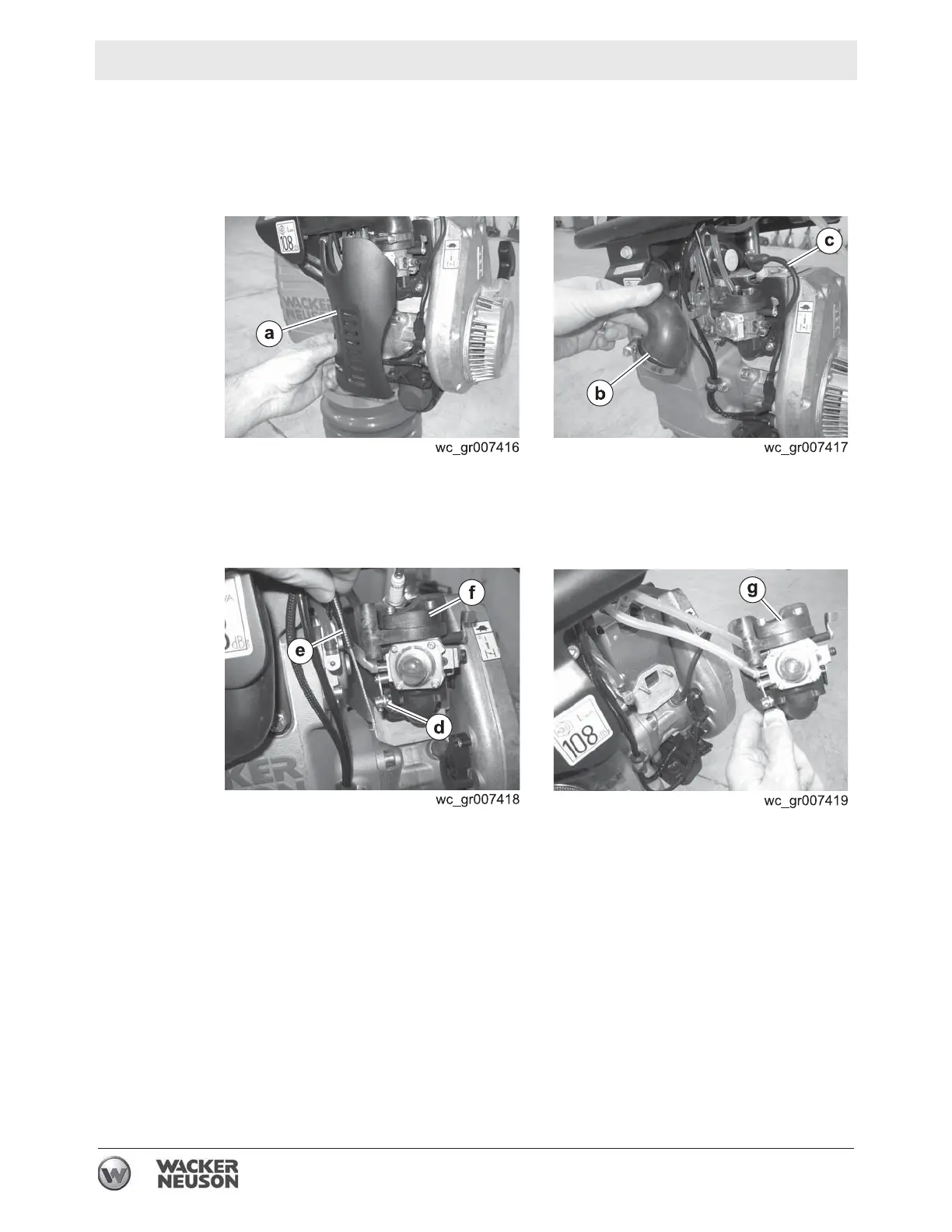

4.19.2 Remove the carburetor guard (a).
4.19.3 Loosen the hose clamp and remove the air duct
(b).
4.19.4 Disconnect the ignition wire (c) from the spark plug.
4.19.5 Loosen the clamp
(d) and remove the throttle cable (e) from the
carburetor adapter (f).
4.19.6 Remove the two nuts and washers and remove the carburetor
assembly
(g) from the machine.
This procedure continues on the next page.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
