Wacker Neuson BS 50-4 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 63
Continued from the previous page.

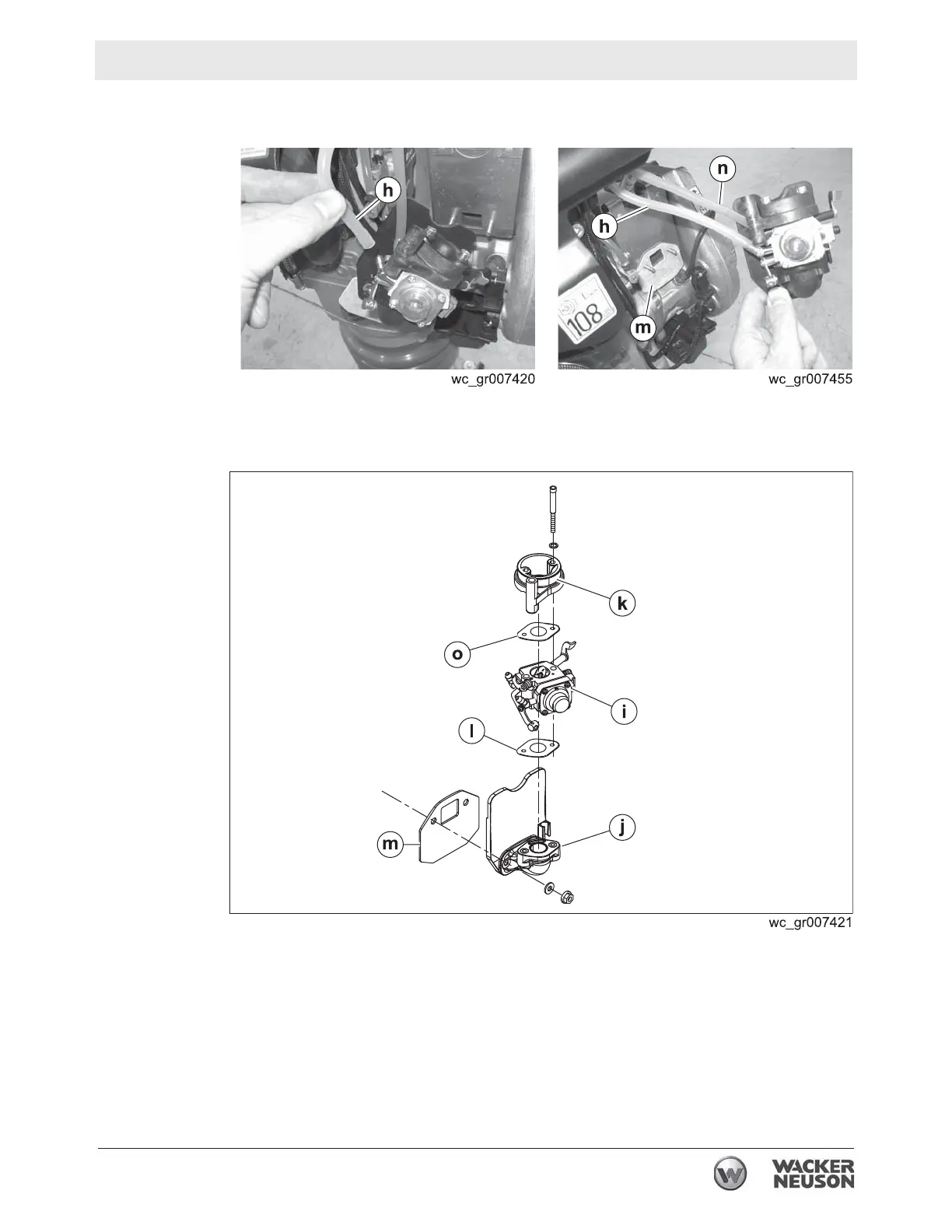

4.19.7 Have a container ready, then remove the oil hose (h) and drain it.
4.19.8 Make sure the throttle is in the OFF position. This position also closes
the fuel valve. Then, remove the fuel hose
(n) and drain it.
4.19.9 Remove the gasket
(m).
4.19.10 Disassemble the carburetor
(i) from the adapter (j), flange (k), and
gaskets
(l and o).
Result
The removal procedure is now complete.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
