Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
68 wc_tx001546gb.fm

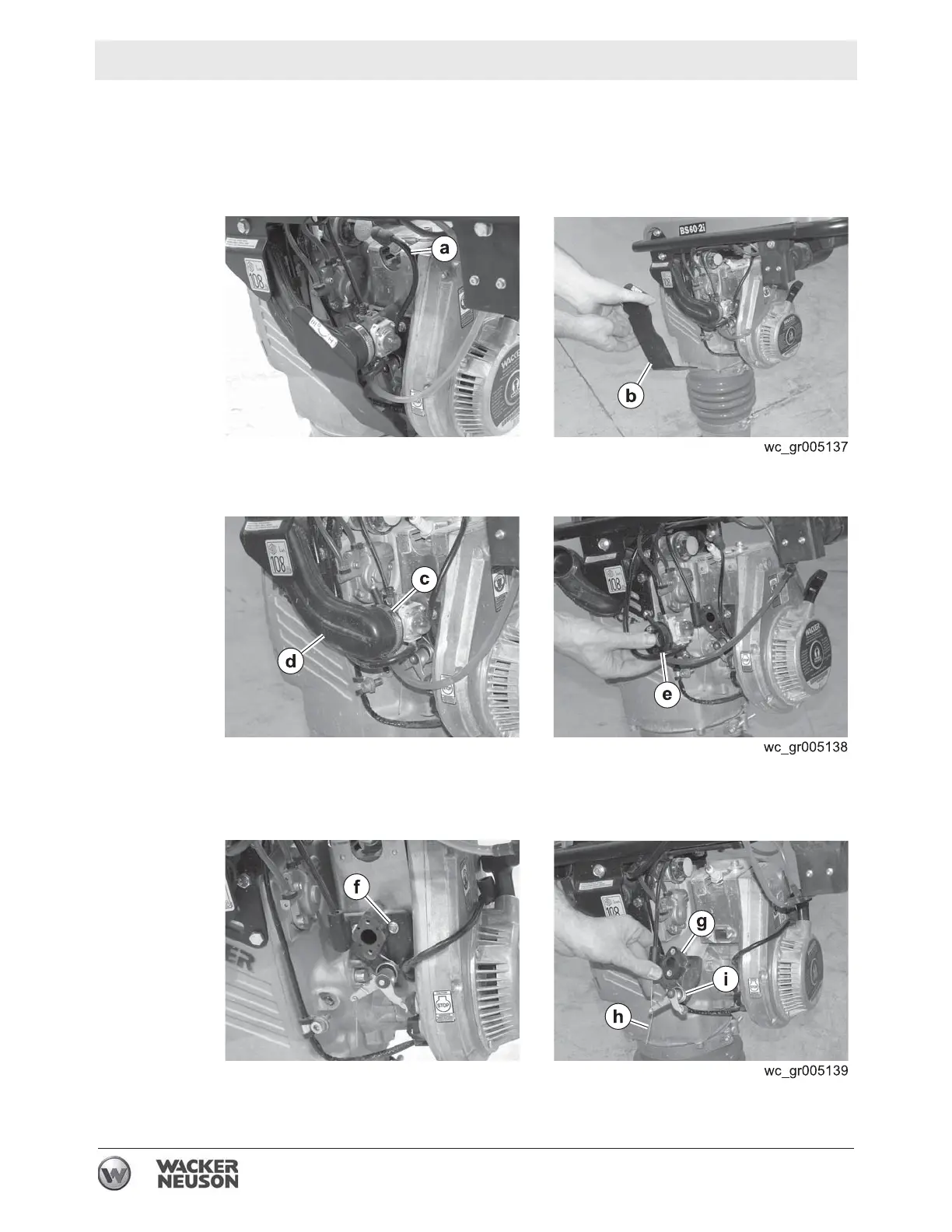

4.21 Removing Walbro Carburetor (standard choke models)
4.21.1 Stop the machine and allow it to cool.
4.21.2 Place the throttle in the OFF position.
4.21.3 Disconnect the ignition wire (a) from the spark plug.
4.21.4 Remove the carburetor guard
(b).
4.21.5 Loosen the hose clamp
(c) and remove the air duct (d).
4.21.6 Remove the two screws and remove the flange
(e) and the carburetor
from the machine.
4.21.7 Remove the screws (f) and remove the adapter (g).
4.21.8 Disconnect the throttle cable
(h). Remove the spring (i).

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
