Wacker Neuson BS 50-4 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 67
Installation
Perform the procedure below to install the engine.

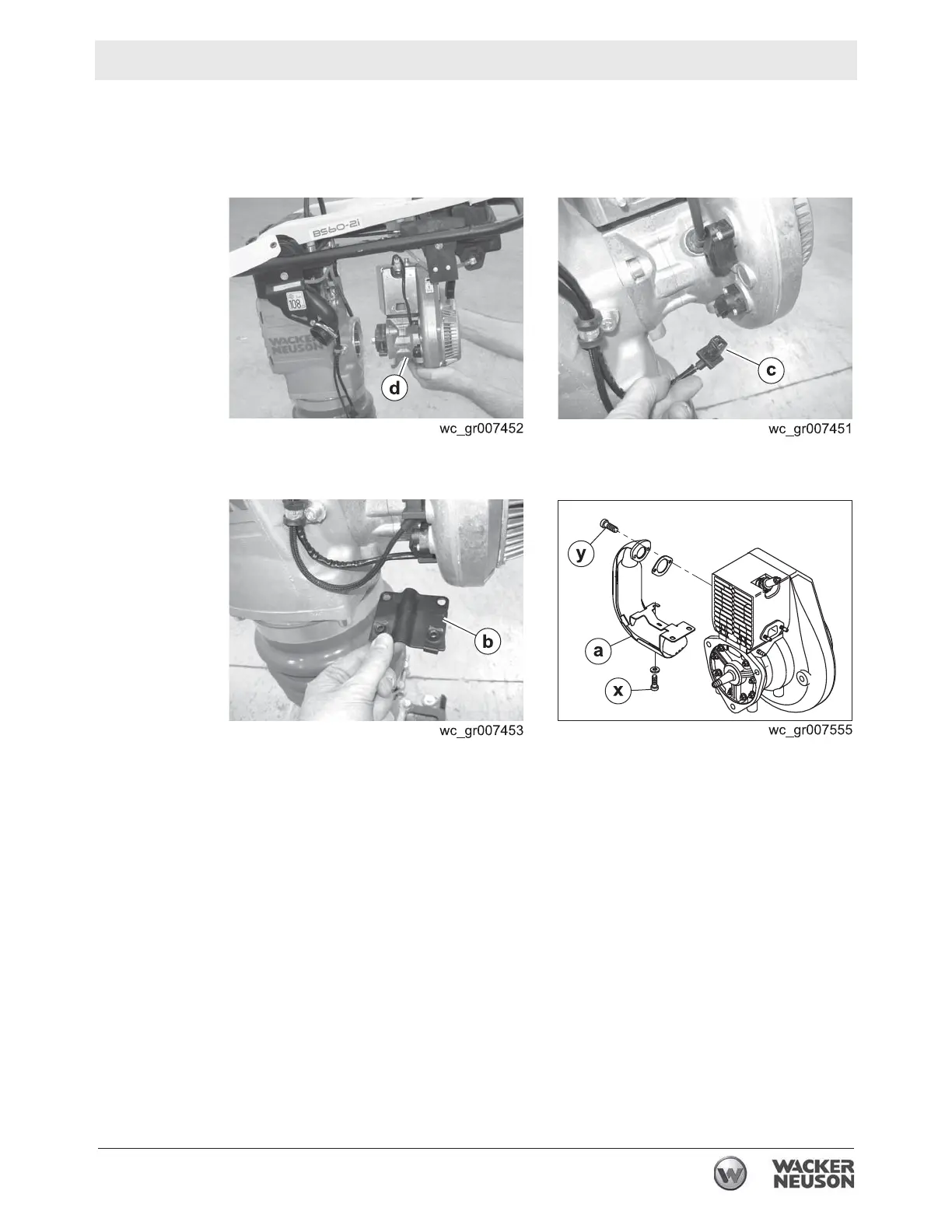

4.20.1 Install the engine
(d) to the machine with three screws. Torque the
screws to 28 Nm (20 ft.lbs.).
4.20.2 Reconnect the wiring
(c) to the switches.
4.20.3 Install the bracket (b).
4.20.4 Install the muffler
(a). Torque screws (x) to 18 Nm (13 ft.lbs.). Torque
screw (y) to 23 Nm (16 ft.lbs.).
4.20.5 Install the carburetor.
Result
The engine has now been installed.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
