Wacker Neuson BS 50-4 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 75
4.24 Replacing the WM 100 Engine
Requirements
• Machine shut down and cool
• Loctite® 243 or equivalent
• Torque wrench
• Two wire ties
Removal
Perform the procedure below to remove the engine.
4.24.1 Remove the carburetor. See topic Replacing the Carburetor (WM 100
engine)
.

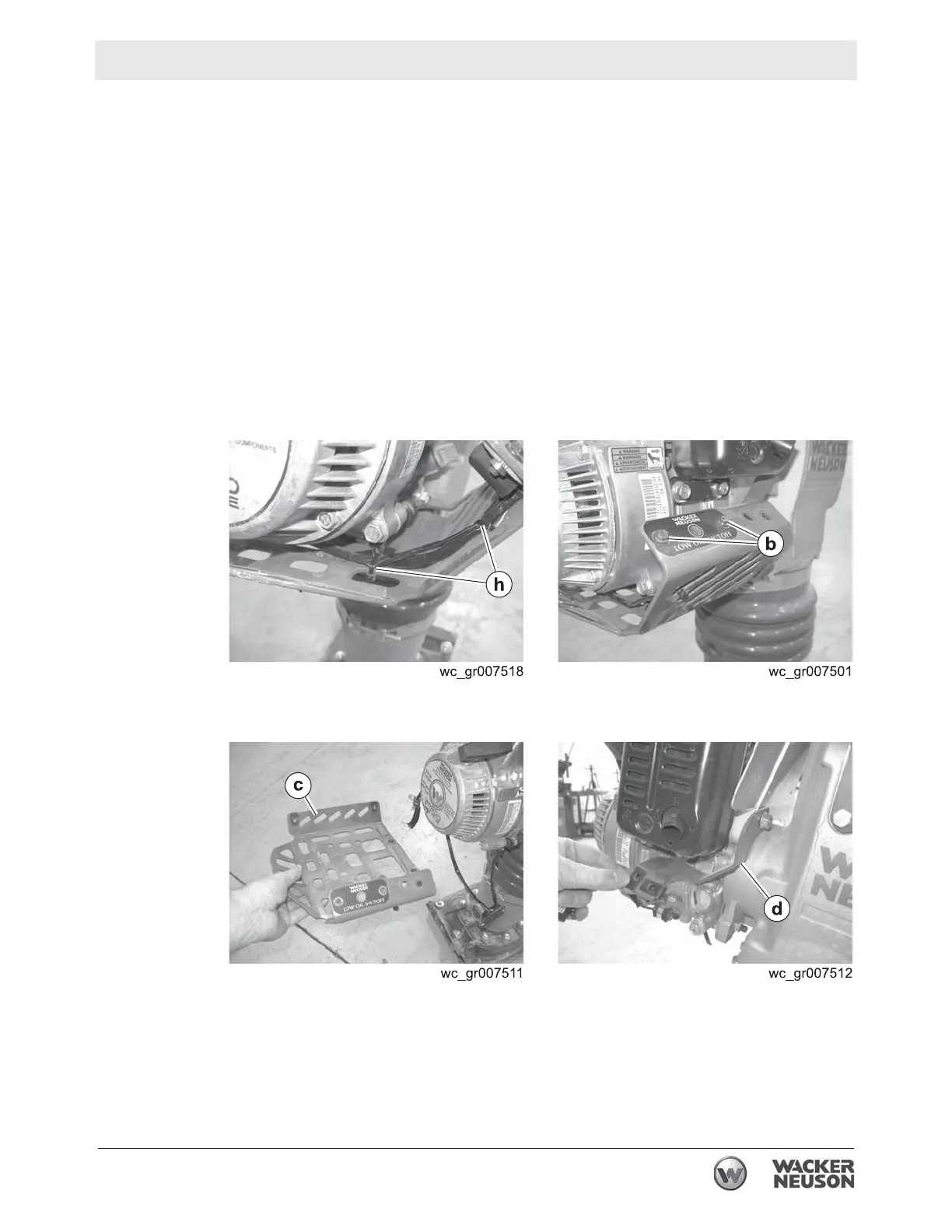

4.24.2 Clip the wire ties (h).
4.24.3 Remove the screws
(b) that hold the low oil shutdown switch.
4.24.4 Remove the lower guard (c).
4.24.5 Remove the support bracket
(d).
4.24.6 Remove the heat shield (a).

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
