Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
66 wc_tx001546gb.fm
4.20 Replacing the WM 80 Engine (2010 and later models)
Requirements
• Engine cool
• Carburetor removed
Removal
Perform the procedure below to remove the engine.

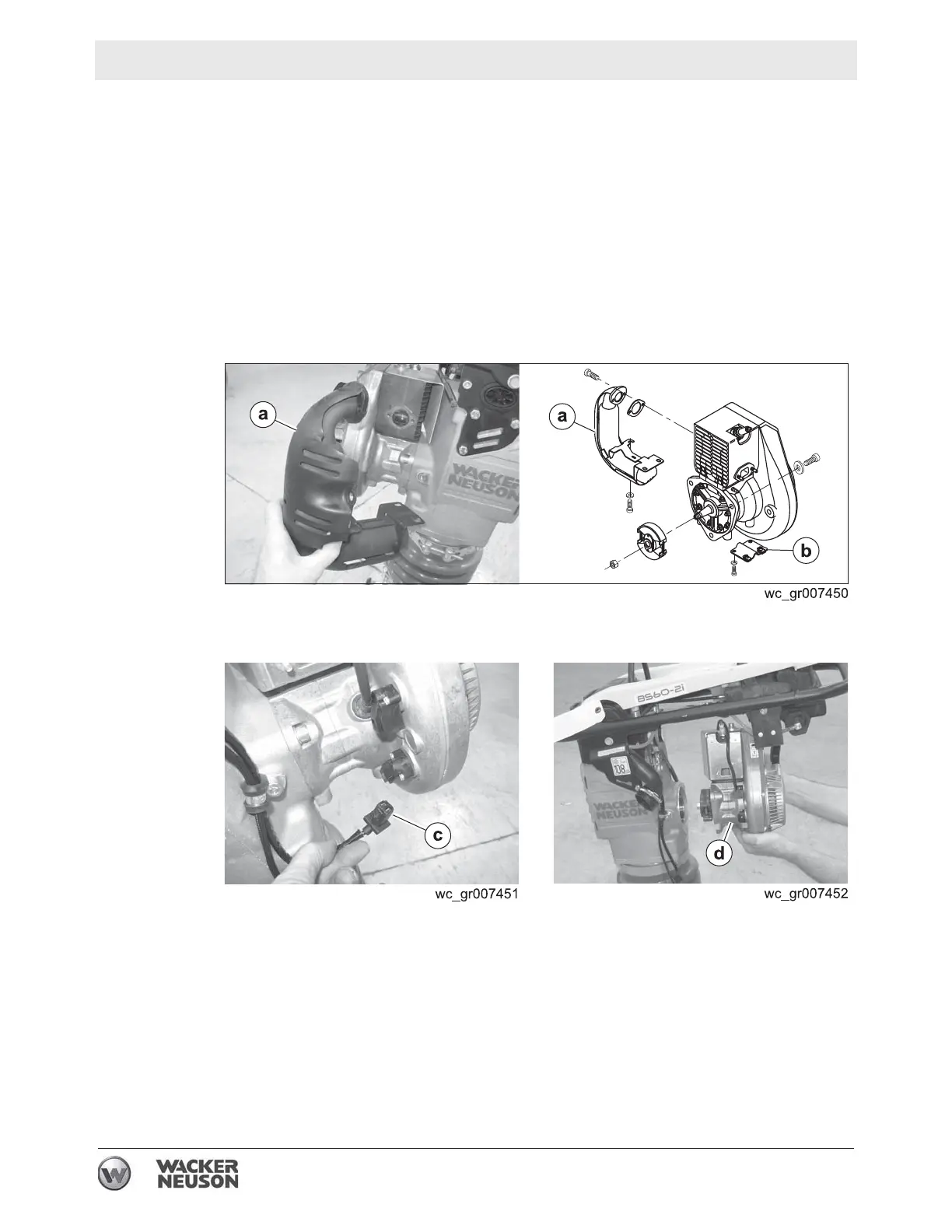

4.20.1 Remove the carburetor. See topic Removing the Carburetor.
4.20.2 Remove the muffler (a).
4.20.3 Remove the bracket
(b).
4.20.4 Disconnect the wiring to the switches (c).
4.20.5 Remove the screws that hold the engine and remove the engine
(d)
from the machine.
Result
The engine has now been removed.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
