Wacker Neuson BS 50-4 Repair Manual

Rammer Repair Ramming System
wc_tx001547gb.fm 93
Installation

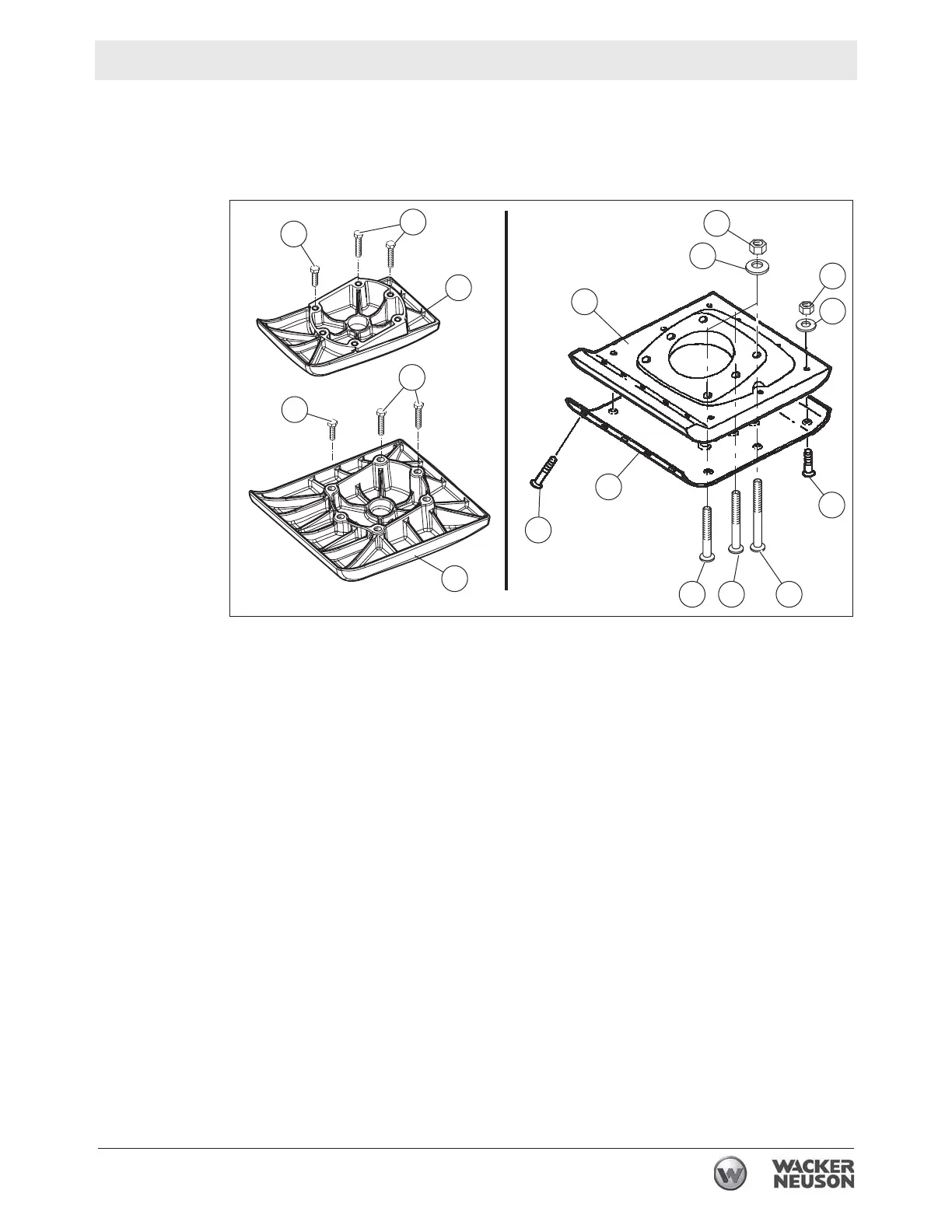

Follow the guidelines below when installing the shoes.
5.2.7 The plow bolts (m, n, and o) and (l and j) as well as hex bolts (a and b)
have different lengths. Use the longer of the bolts where needed.
5.2.8 When reusing bolts, clean the threads thoroughly before use.
5.2.9 Be sure notches of plow bolts seat in grooves of shoe.
5.2.10 Torques: (Recheck torques after first five hours of use.)
 hex bolt (a): 85.5 Nm (63 ft.lbs.)
 lock nuts (e): 79 Nm (58 ft.lbs.)
 lock nuts (l): 24 Nm (18 ft.lbs.)
wc_gr007519
a
d
e
k
l
f
g
i
j
c
c
b
a
b
m n o

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
