Wacker Neuson BS 50-4 Repair Manual

Ramming System Rammer Repair
108 wc_tx001547gb.fm

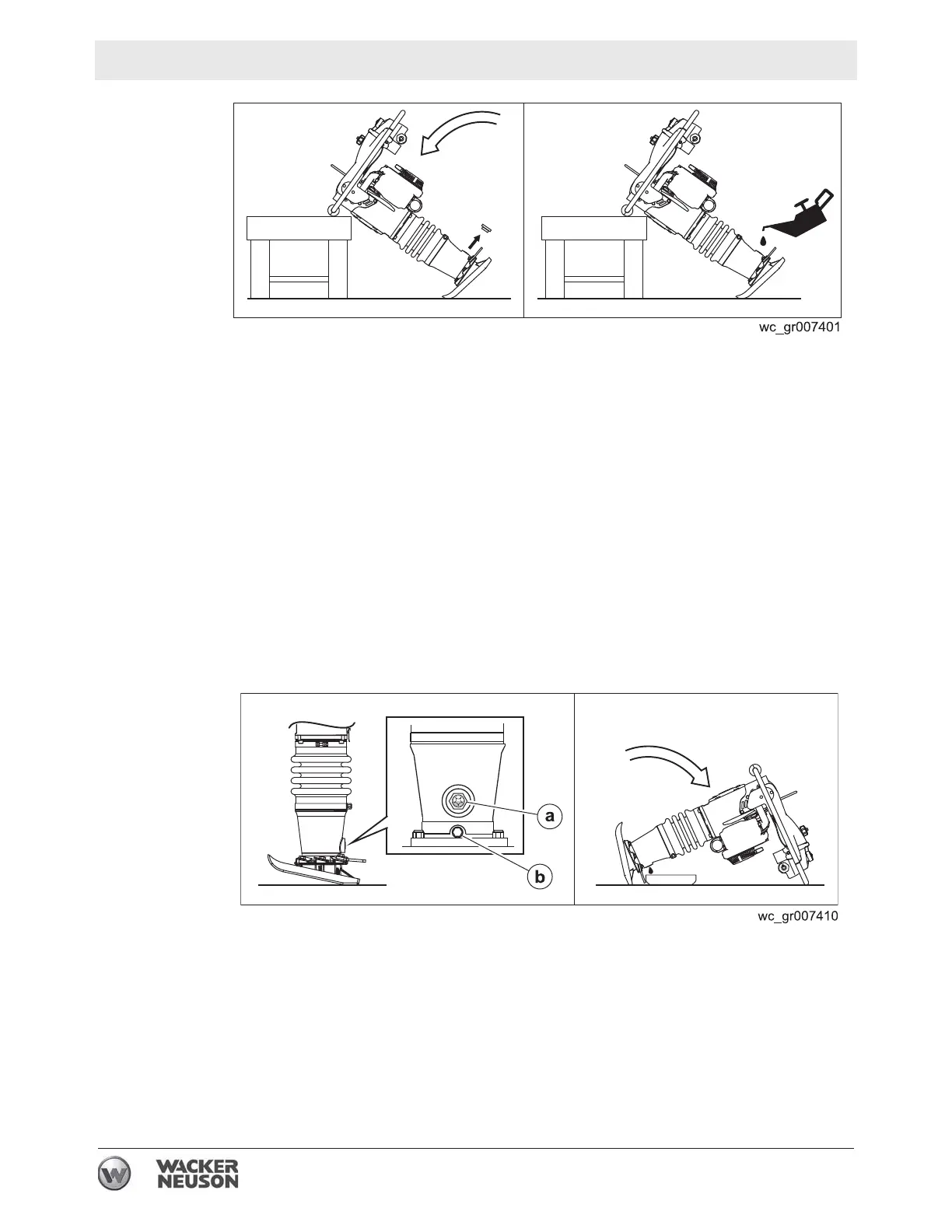

5.8.4 Remove the sightglass. Clean the threads of the sightglass, then
wrap the threads with Teflon tape.
5.8.5 Add oil to the machine through the sightglass opening in the housing.
5.8.6 Stand the machine upright to check the oil level. Add enough oil so
that when the machine is upright, oil will fill 1/2 to 3/4 of the sightglass.
At that point, install the sightglass. Torque the sightglass to 9 Nm (6
ft.lbs.).
Changing oil
Perform the following procedure to change the ramming system oil.
Note: Dispose of used oil in accordance with local environmental regula-
tions.
5.8.7 Remove the drain plug (b). (On BS 50 machines, remove the
sightglass
(a).)
5.8.8 Tilt the rammer backward until it is resting on the handle and drain the
oil into a suitable container.
Note: It may take up to 10 minutes for the oil to drain.
5.8.9 Reinstall the drain plug. Torque it to 54 Nm (40 ft.lbs.).
5.8.10 Add oil as stated above.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
