Wacker Neuson BS 50-4 Repair Manual

Rammer Repair Oil Injection (if equipped)
wc_tx001549gb.fm 119

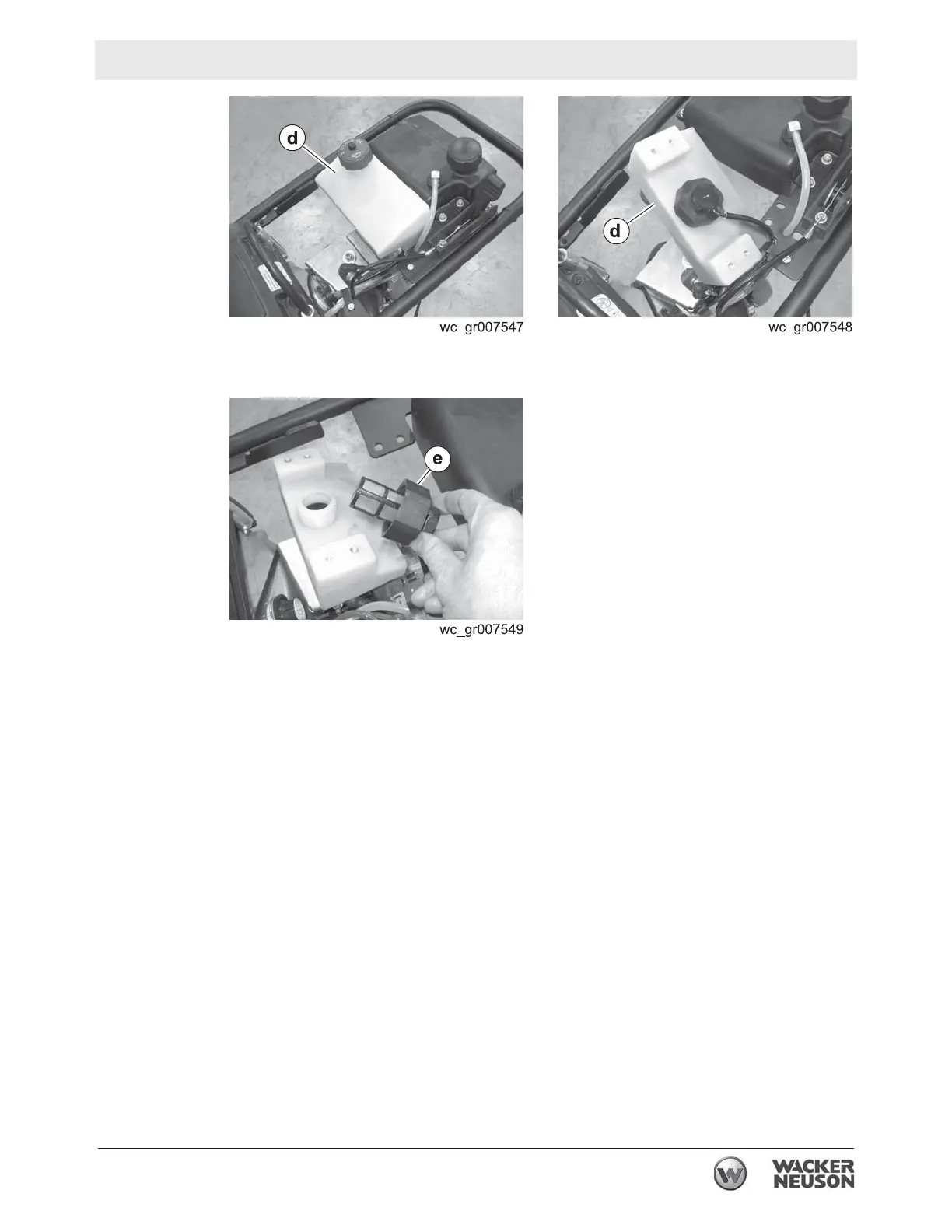

7.2.5 Remove the screws that hold the oil tank and turn it upside down.
7.2.6 Unscrew the float switch assembly (e) from the oil tank.
7.2.7 Remove the float switch and wiring from the machine.
Installation
Perform the procedure below to install the float switch.
7.2.1 Screw the new float switch assembly into the oil tank.
7.2.2 Thread the wiring through the machine to the engine.
7.2.3 Reinstall the oil tank. Torque screws to 9 Nm (6 ft.lbs.).
7.2.4 Reinstall the silencing cover.
7.2.5 Connect the wiring to the engine.
7.2.6 Reinstall the carburetor guard. Torque screws to 23 Nm (16 ft.lbs.).
Result
The replacement procedure is now complete.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
