Repair Engine and Upper Machine Components
wc_tx001546gb.fm 29
Installation

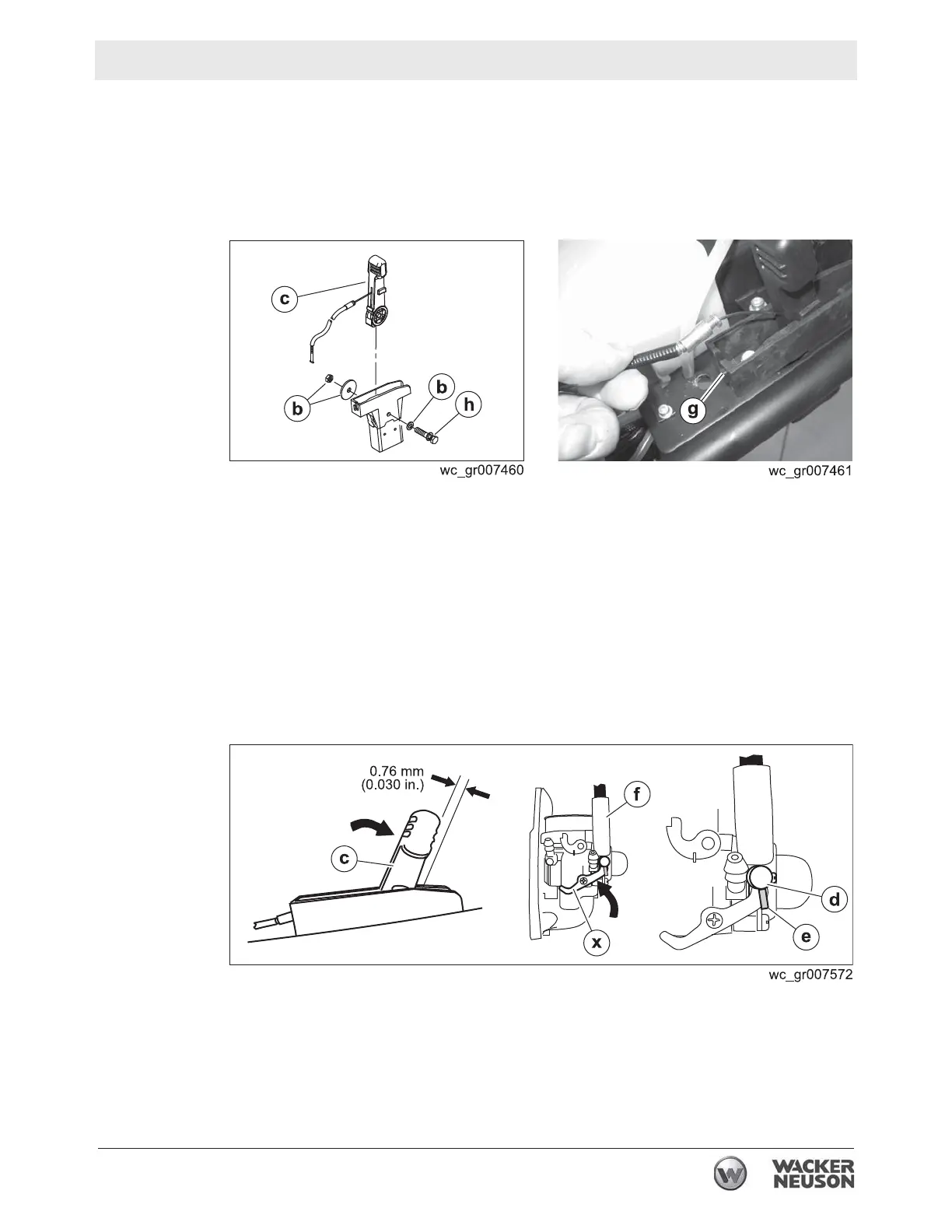

Perform the procedure below to install the throttle control.
4.2.1 Connect the throttle control (c) to the machine with bolt (h) and
hardware
(b). Adjust the nut on the throttle control lever so that the
lever moves freely but still holds its position while the rammer is
operating. The recommended torque value is 2.9 Nm (2.1 ft.lbs.).
4.2.2 Connect the throttle cable to the machine at point
(g).
4.2.3 Connect the throttle cable to the carburetor. To do so:
a. Place the throttle control
(c) in the full throttle position with a 0.76
mm (0.030 in.) feeler gauge between the throttle control and the
machine.
b. Rotate the throttle lever
(x) so that it is tight against the carburetor
adapter (f).
c. Thread the throttle cable
(e) through the carburetor adapter and
through the swivel
(d). Pull the throttle cable taught, then tighten the
swivel screw.
d. Release the throttle lever.
4.2.4 Install the carburetor guard
(a). Torque the screws to 23 Nm (16 ft.lbs.)
Result
The replacement procedure is now complete.
