Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
36 wc_tx001546gb.fm
Continued from the previous page.

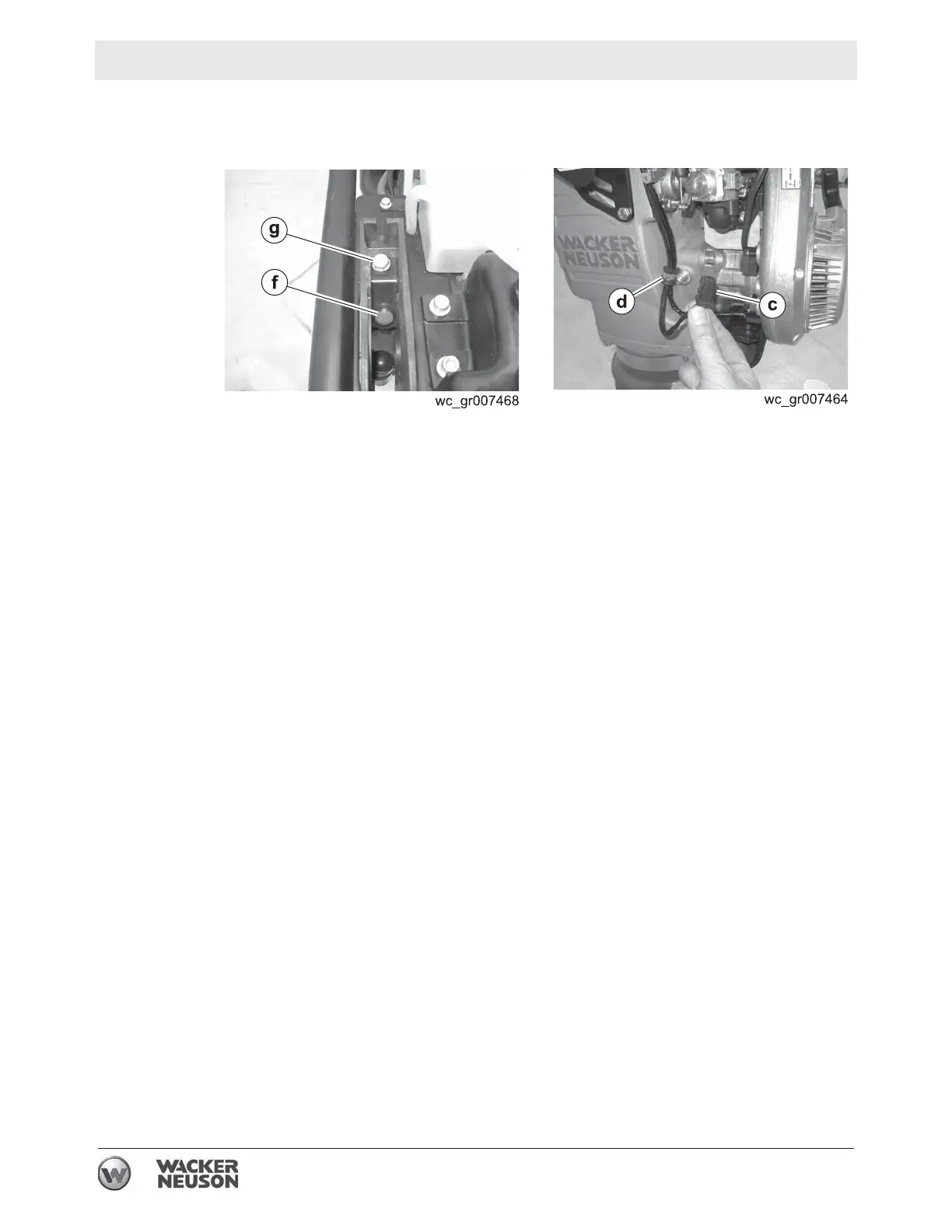

4.5.2 Install the throttle control bracket and the stop switch (f) with screws
(g).Torque the screws to 10 Nm (7 ft.lbs.).
4.5.3 Reconnect the stop switch wiring
(c) to the engine.
4.5.4 Reinstall the clamp
(d).
4.5.5 Reinstall the throttle control.
4.5.6 Reinstall the silencing cover.
Result
The replacement procedure is now complete.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
