Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
38 wc_tx001546gb.fm

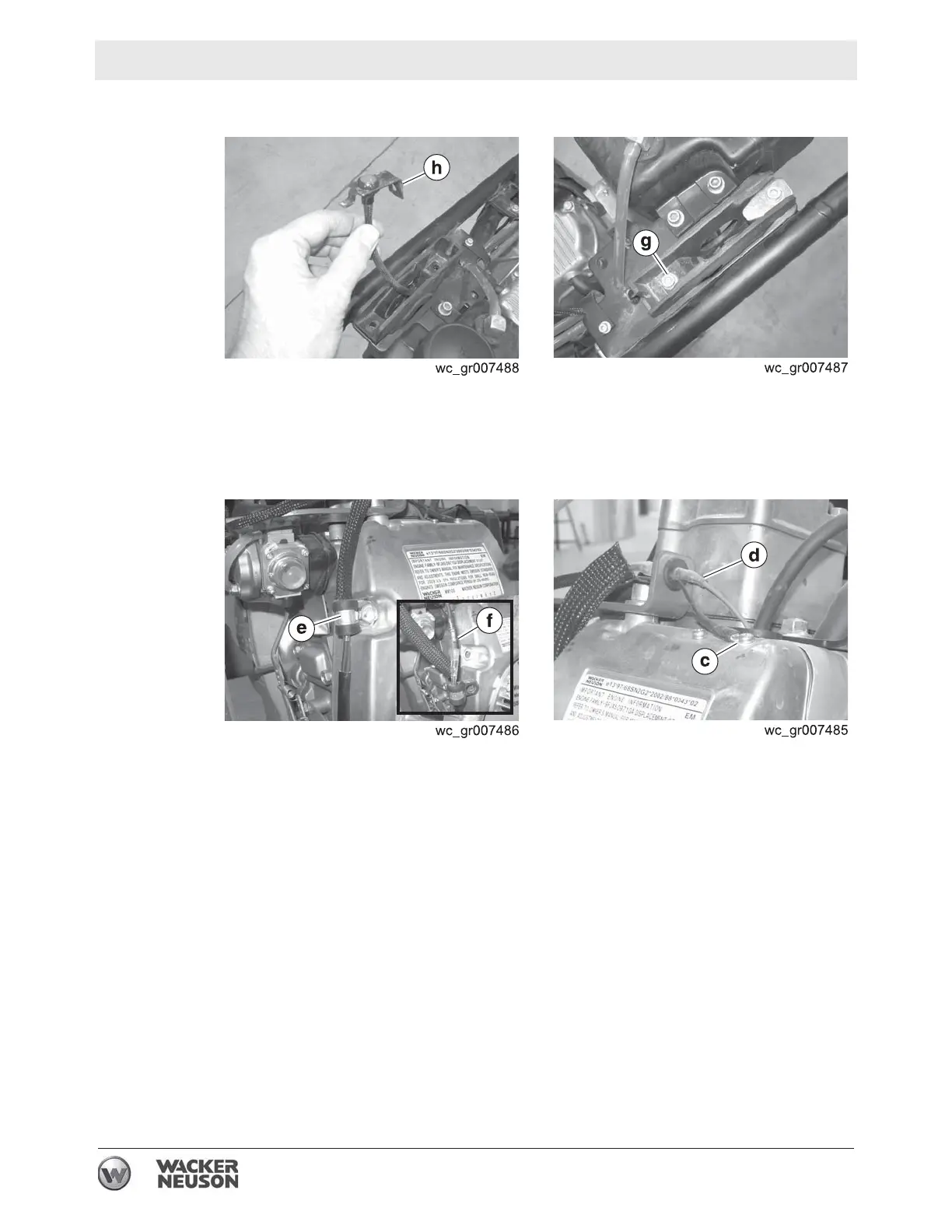

4.6.1 Slide the stop switch (h) into the throttle control bracket and thread the
wiring through the throttle control bracket.
4.6.2 Install the stop switch to the machine with screw
(g). Torque the screw
to 9 Nm (6 ft.lbs.).
4.6.3 Reconnect the wiring connector (f). Apply Loctite 243® to the screw
holding the clamp
(e) and reinstall the clamp (e). Torque the screw to
25 Nm (18 ft.lbs.).
4.6.4 Reconnect the wiring
(c and d) to the engine.
Result
The procedure to replace the stop switch is now complete.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
