Engine and Upper Machine Components Repair
50 wc_tx001546gb.fm
4.11.4 Close the fuel valve and disconnect the fuel line from the carburetor.
See the section Fuel Lines for removal of fuel and vent lines for models
BS 50/60/70/65.
4.11.5 Loosen the air duct clamps and remove the air duct.

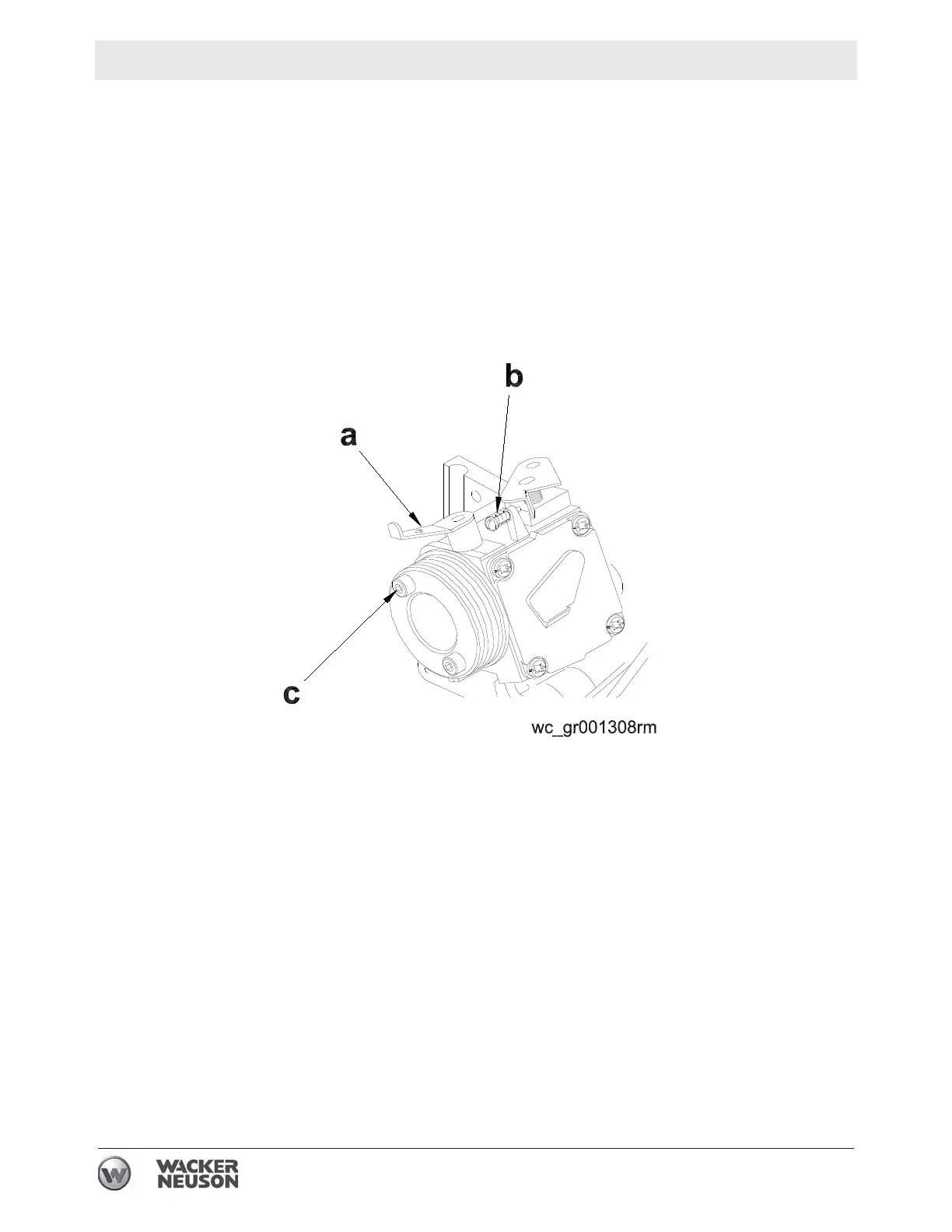

4.11.6 Remove the two socket head cap screws (c) holding the carburetor to
the engine. When reinstalling the carburetor, apply Loctite 243 and
torque the screws to 5.4 Nm (4.0 ft.lbs.).
Note: It is not necessary to disconnect the throttle cable to remove the
carburetor.
