Repair Engine and Upper Machine Components

wc_tx001546gb.fm 73

Installation

Perform the procedure below to install the carburetor.

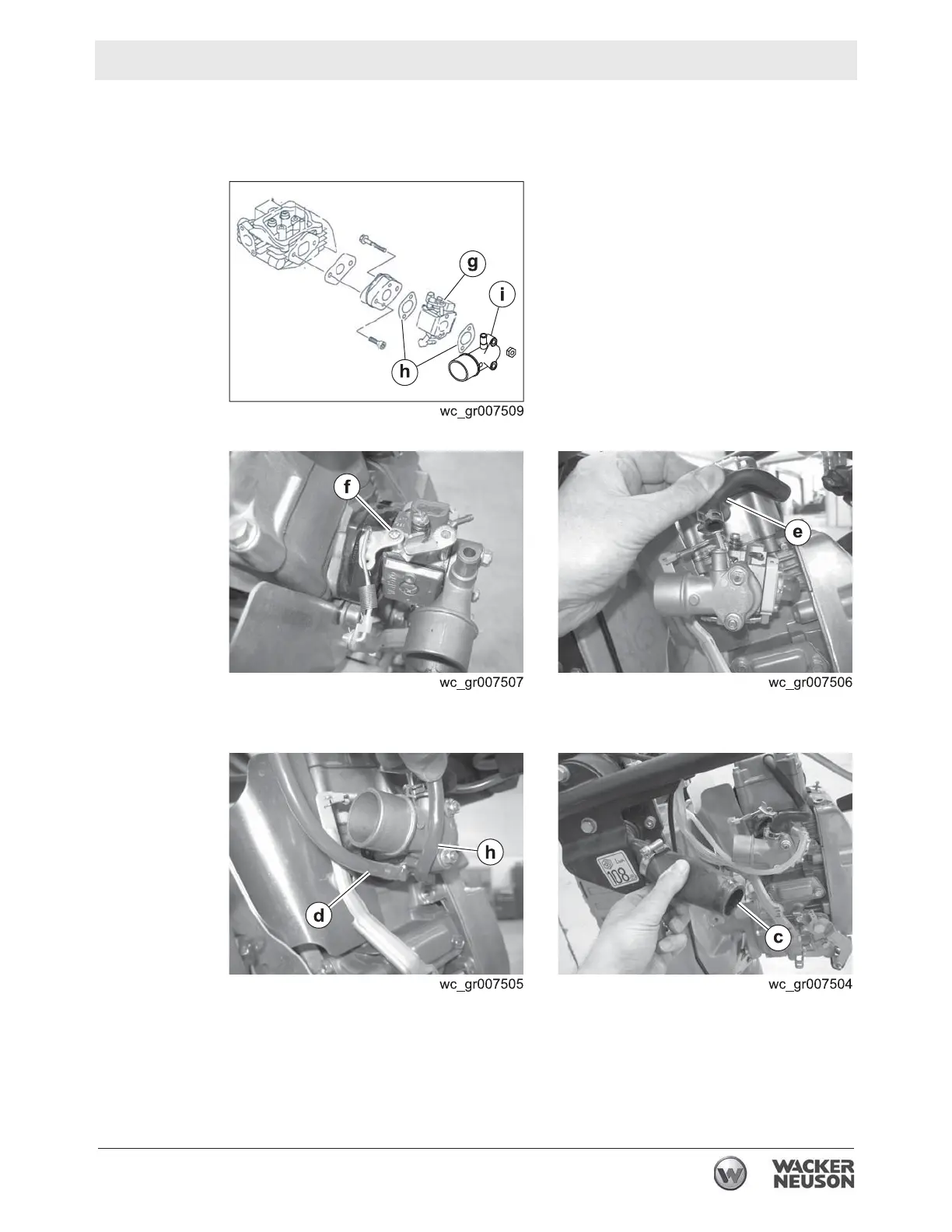

4.23.1 Install the carburetor (g), gaskets (h), and adapter (i).

4.23.2 Reconnect the linkage with screw

(f).

4.23.3 Reconnect the hose

(e).

4.23.4 Reconnect the fuel hose (d) and the compensation hose (h).

4.23.5 Reconnect the air hose

(c).

4.23.6 Reconnect the throttle cable (b).

Other manuals for Wacker Neuson BS 50-4

Need help?

Do you have a question about the Wacker Neuson BS 50-4 and is the answer not in the manual?

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
