Repair Engine and Upper Machine Components
wc_tx001546gb.fm 77

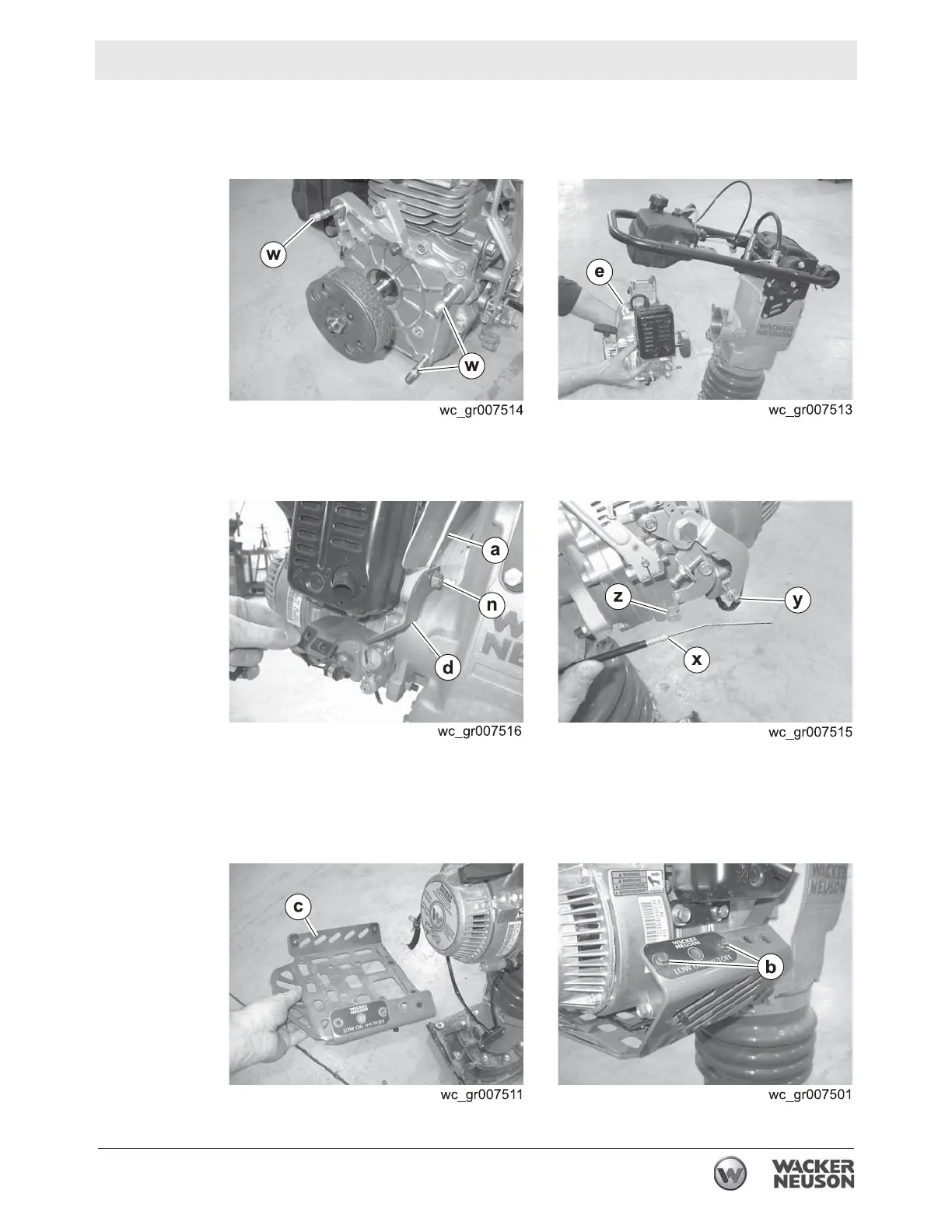

Installation
Perform the procedure below to install the engine.
4.24.1 Apply Loctite® 243 to the four engine studs (w).
4.24.2 Slide the engine
(e) (with clutch installed) into the machine.
4.24.3 Loosely install the support bracket (d) and heat shield (a) with nut (n).
Install the other three nuts and torque them to 25 Nm (18 ft.lbs.).
4.24.4 Reconnect the throttle cable
(x) to the swivel (y) and the clamp (z).
4.24.5 Fit the lower guard to the support bracket. Then, using Loctite® 243
on the screws, install the lower guard (c) to the engine. Torque the
screws to 25 Nm (18 ft.lbs.). Torque the support bracket screw
(n) to
25 Nm (18 ft.lbs.).
4.24.6 Install the low oil shutdown switch with screws
(b).

Table of Contents

Other manuals for Wacker Neuson BS 50-4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Wacker Neuson BS 50-4 and is the answer not in the manual?

Wacker Neuson BS 50-4 Specifications

General IconGeneral
Engine ManufacturerHonda
Stroke Height65 mm
Fuel TypeGasoline
Centrifugal Force15 kN
Sound Pressure Level92 dB(A)
Sound Power Level105 dB(A)
Height965 mm
Ramming Shoe Size280 mm
Tank Capacity3.1 l
Fuel Tank Capacity3.1 l
Engine Type4-cycle, single-cylinder, air-cooled
Percussion Rate680 blows/min
