Wacker Neuson BS 50-4 Repair Manual

Ramming System Rammer Repair
90 wc_tx001547gb.fm

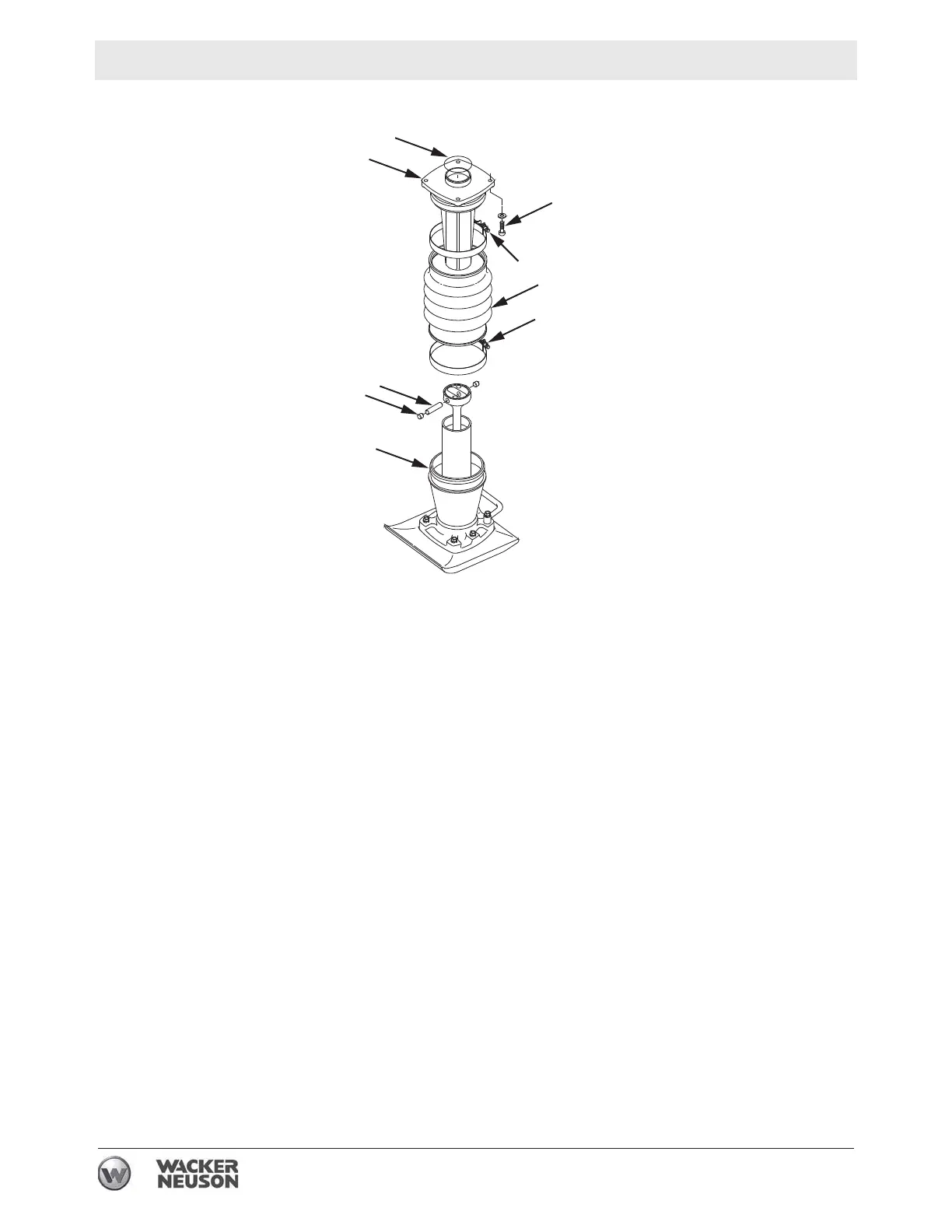

Installation
5.1.9 Oil the inner edges of the bellows.
5.1.10 Place the lower clamp (f) on the protective pipe (j).
5.1.11 Press the bellows (e) onto the protective pipe (j) with a strong
downward push.
5.1.12 Partially tighten the clamp onto the bellows.
5.1.13 Place the upper clamp (d) on the bellows.
5.1.14 Press the guide cylinder (a) onto the bellows with a strong downward
push.
5.1.15 Partially tighten the spring clamp onto the bellows.
5.1.16 Install a new O-ring (b).
5.1.17 Position the upper machinery over the guide cylinder.
5.1.18 Align the connecting rod inside the ram.
5.1.19 Install the piston pin (g) and new end plugs (h).
Note: Use new end plugs whenever the piston pin has been removed.
Note: To aid in installation, it may be necessary to gently heat the
clamping area of the bellows with an electric heat gun.
wc_
g
r001321rm
a
b
c
d
e
f
g
h
j

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
