BA ET18, 20, 24 en* 1.5 * et18_20_24b510.fm 5-13
Operation 5
5.9 Work hydraulics

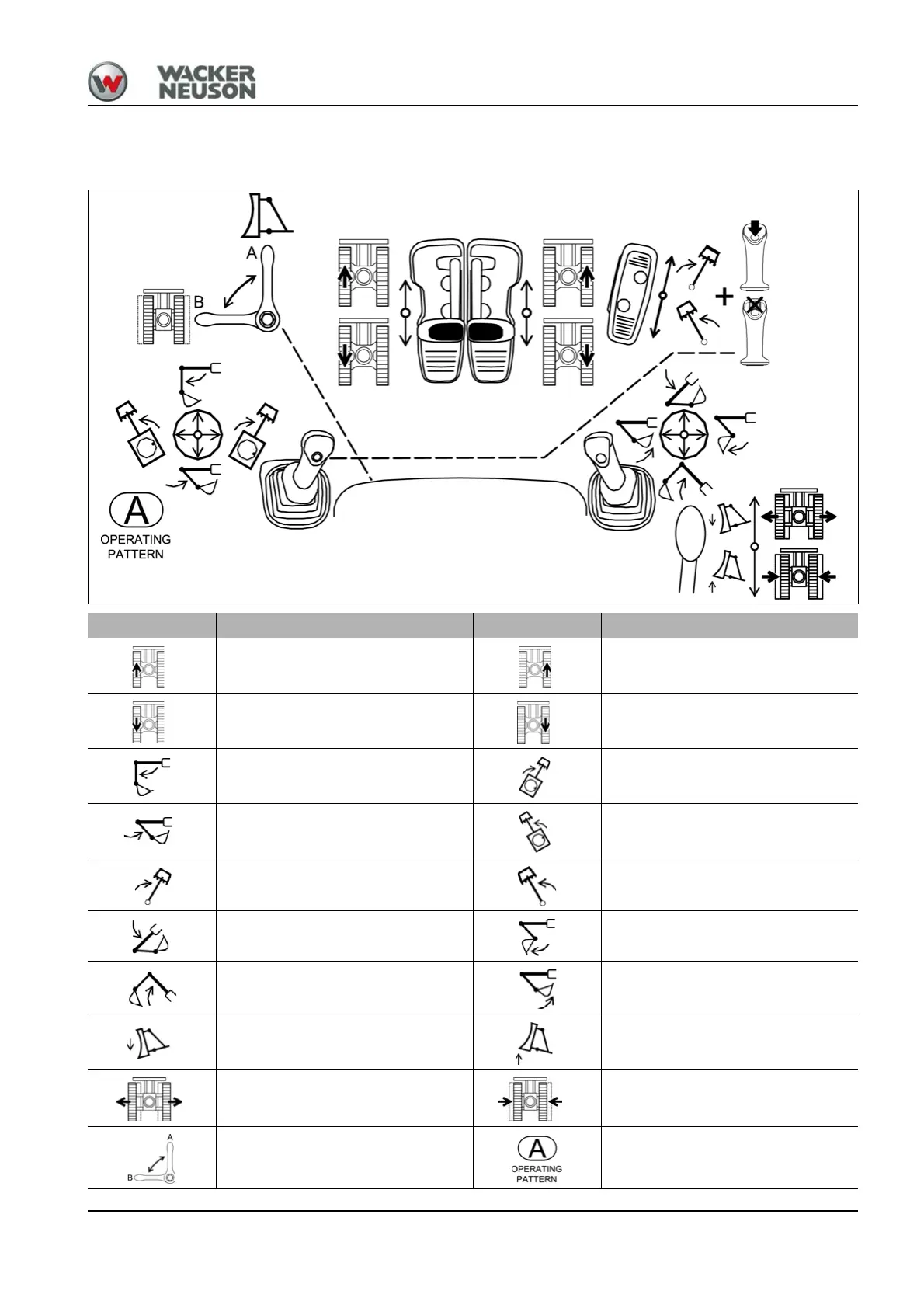

Overview of pedals and control levers (Operating Pattern A)
Symbol Designation Symbol Designation
Left track (forward) Right track (forward)
Left track (reverse) Right track (reverse)
Extend stick Swivel upper carriage to the right
Retract stick Swivel upper carriage to the left
Swivel boom to the right Swivel boom to the left
Lower the boom Tilt out the bucket
Raise the boom Tilt in the bucket
Lower stabilizer blade Raise stabilizer blade
Extend telescopic travel gear Retract telescopic travel gear
Telescopic travel gear/stabilizer
blade changeover
ISO controls (Europe)
Operation
