5 Operation
Changing the width of the stabilizer blade (option)
Damage to machine when driving through door frames, etc.
► Pay attention to the width of the stabilizer blade and of the telescopic
travel gear when performing machine travel through passages.
► Adjust the stabilizer blade and the telescopic travel gear to the same
widths when operating the machine.
Reducing the width of the stabilizer blade
1. Raise the dozer blade to about 1 – 2 cm (about 0.4 - 0.8 in).
2. Pull out pins A on either side.
3. Turn in the stabilizer blade extensions B on either side.
4. Insert pins A on either side.
Increasing the width of the stabilizer blade
1. Raise the dozer blade to about 1 – 2 cm (about 0.4 - 0.8 in).
2. Pull out pins A on either side.
3. Turn out the stabilizer blade extensions B on either side.
4. Insert pins A on either side.

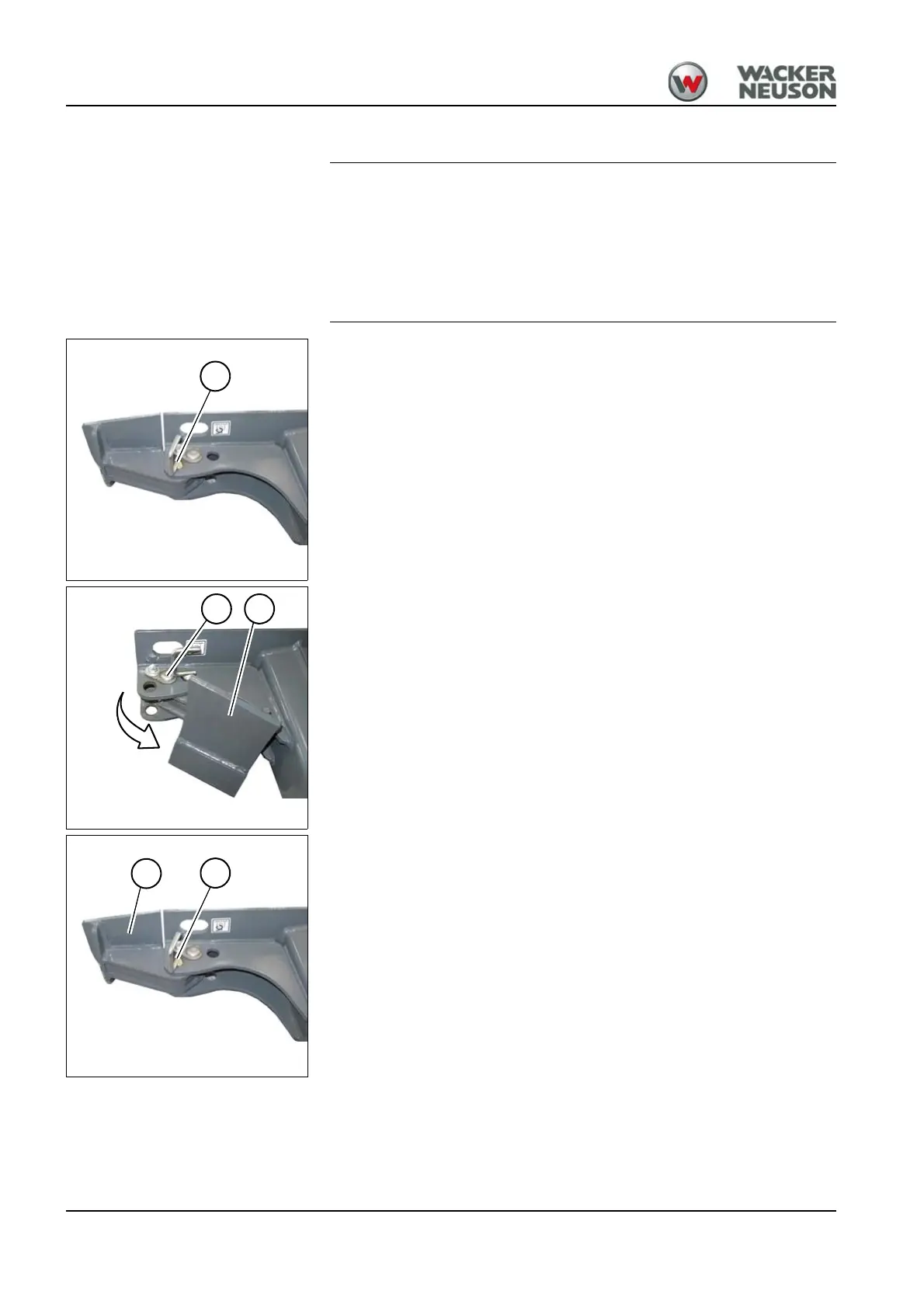

Fig. 148Changing the width of the stabilizer blade
A
Fig. 149Changing the width of the stabilizer blade
A B
Fig. 150Changing the width of the stabilizer blade
A
B
