Control lever base
Crushing hazard! In the area of the moving parts of the control lever
base.
Injury hazard due to crushing of parts of body!
► Stay clear (extremities, clothing) of the moving parts.
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Raise the control lever base.
3. Spray fluid grease onto guide lever A.
4. Spray fluid grease on both sides of the double spring B.
5. Raise and lower the control lever base several times.
Keep the lubrication points clean and remove ejected grease.

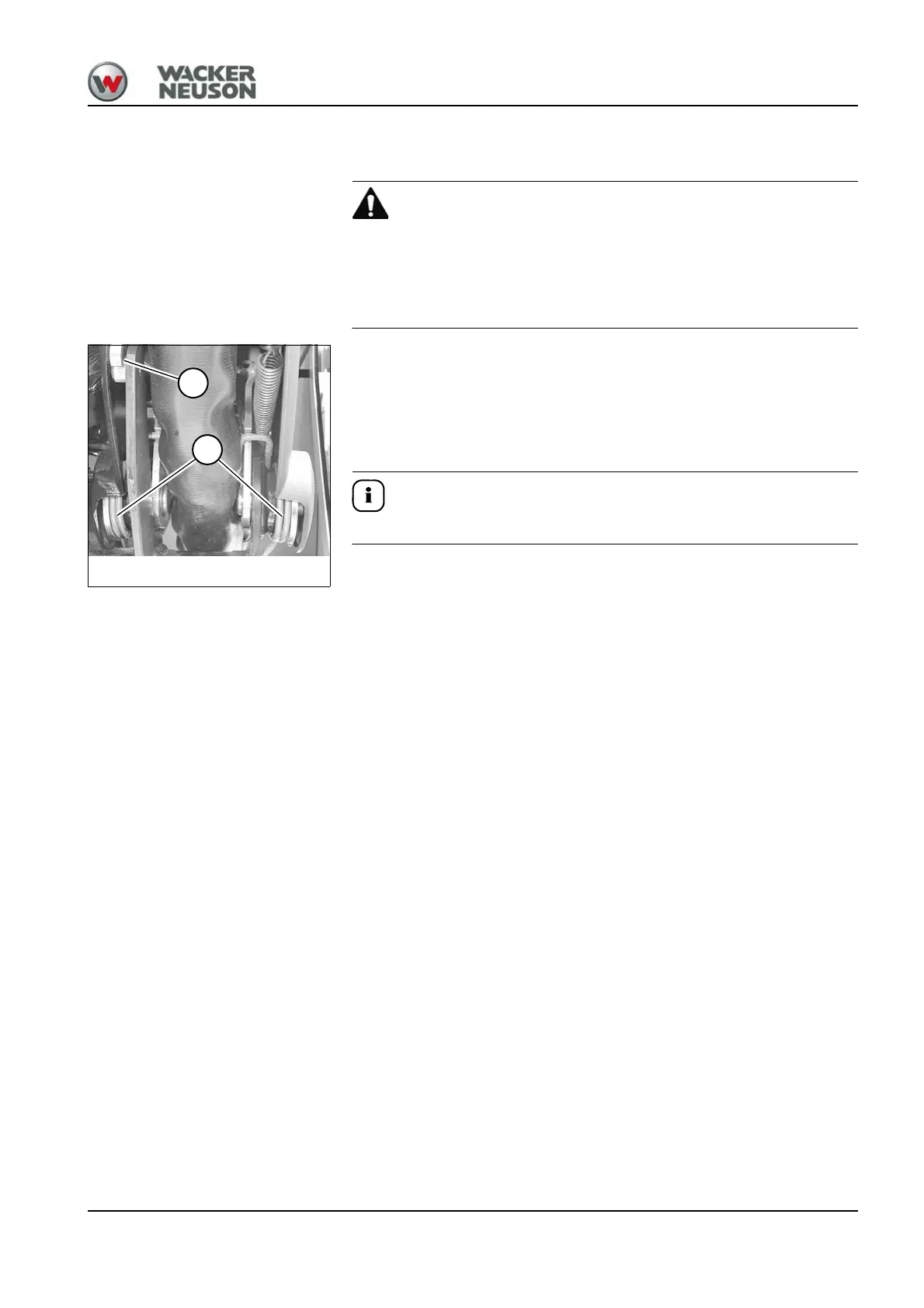

Fig. 253Guide lever and double spring
A
B
