BA ET18, 20, 24 en* 1.5 * et18_20_24t900.fm 9-31
Technical data 9

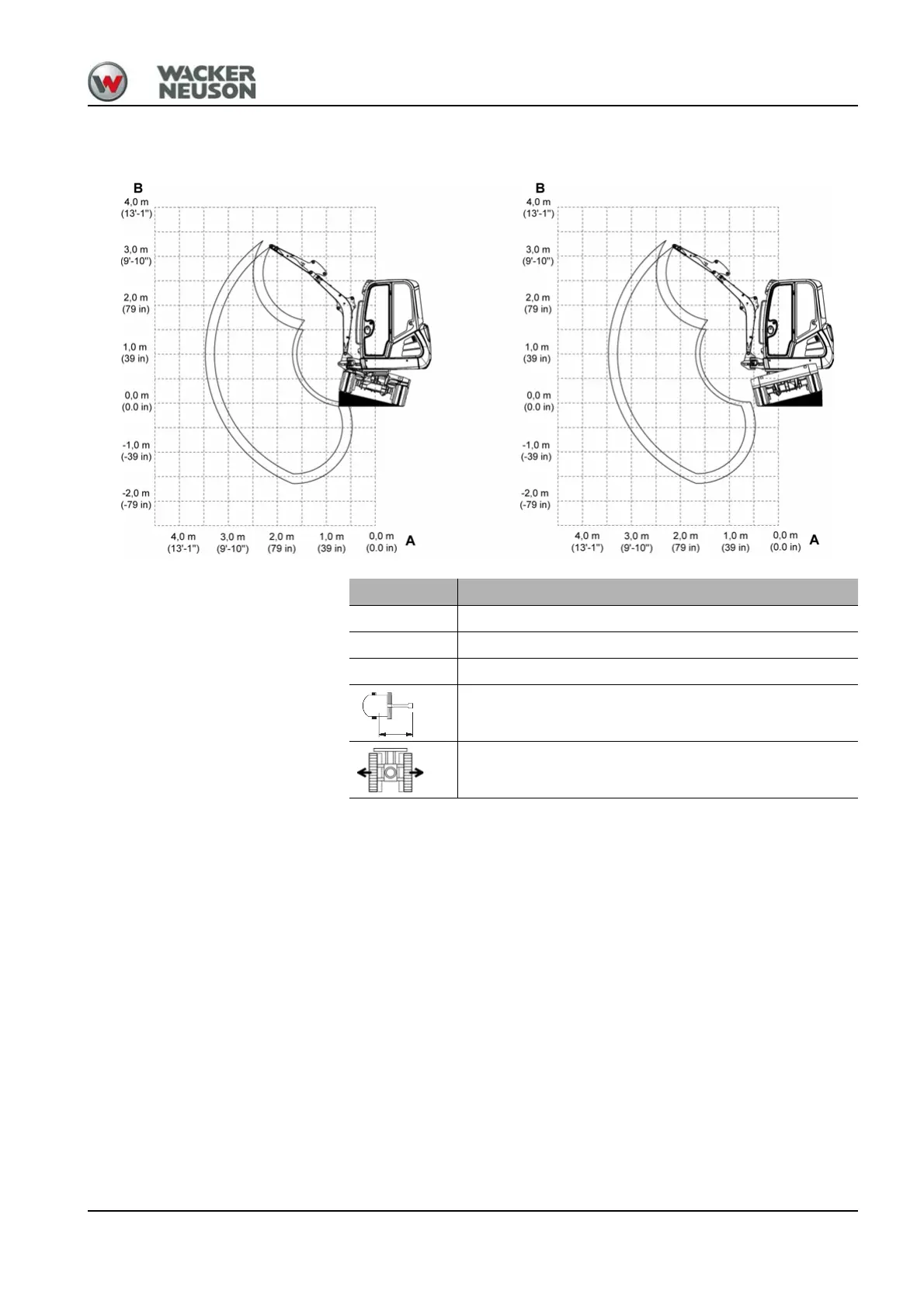

Lift capacity tables VDS (upper carriage tilted)
Boom uphill (15° slope)
Boom downhill (15° slope)
Symbolic representation
Symbolic representation
Designation Explanation
A Reach from live ring center
B Load hook height
max Authorized lift capacity with horizontal boom
Without the stabilizer blade, 90° to travel direction
Telescopic travel gear extended
