4 Putting into operation
Protective FOPS structure/small screen – category I (option)
Crushing hazard! Falling objects!
Causes serious injury or death.
► Install a protective FOPS structure in areas with danger of falling
objects.
► Machine operation is prohibited without a protective FOPS structure.
The protective FOPS structure corresponds to category I according to ISO
3449:1992
► The machine owner must ensure that the hazard situation is evaluated
and that the national regulations are observed.
► The machine owner must ensure that only work is performed that does
not require any higher protection.
► Accidents cannot be fully avoided despite equipping a machine with
protective structures.
Assembly (gray screen)
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Remove all lights and mirrors (option).
3. A minimum 2 persons are required for installing/removing.
4. Mounting point for protective structure: A

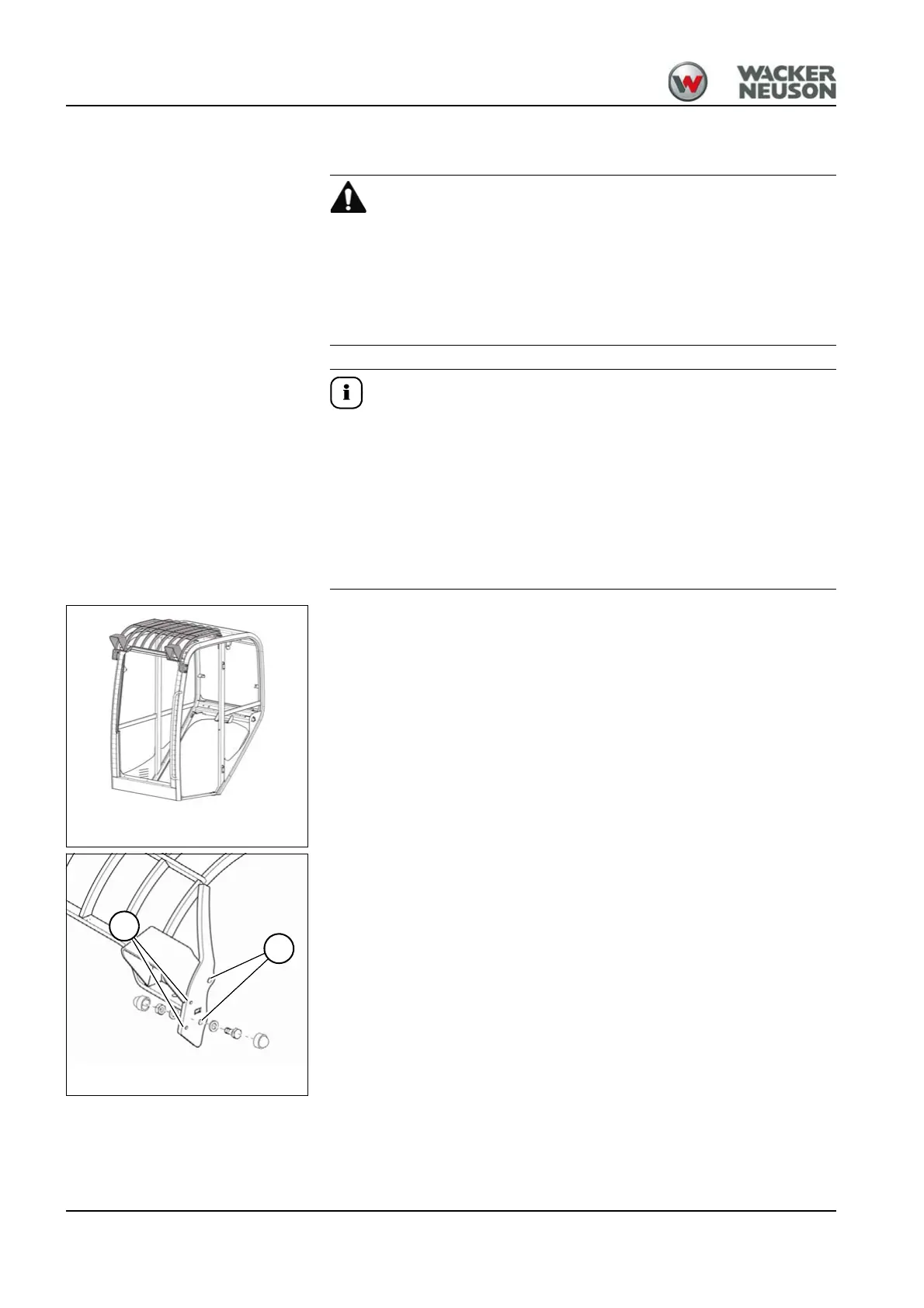

Fig. 87Protective FOPS structure/small screen –
category I (symbolic representation)
Fig. 88Small/gray FOPS (assembly)
C
A
