7 Maintenance
Permissible Bolt Settings Lehnhoff MSWS
The bolt settings can differ, depending on the condition of the quickhitch
and attachment receptacle.
Maximum permissible bolt settings:
Y: outer edge of the attachment support
In the case of deviating bolt settings, do not operate the mechanical
quickhitch; contact an authorized service center.
Check the bolt settings on a monthly basis.
The indicated bolt settings only apply to the attachments presented in this
Operator's Manual. (System Lehnhoff MSWS).
Quickhitch
X (inwards)
mm (in)
Z (outwards)
mm (in)
MS 03 0 (0) 6 (15/64)
MS 08 4 (5/32) 4 (5/32)

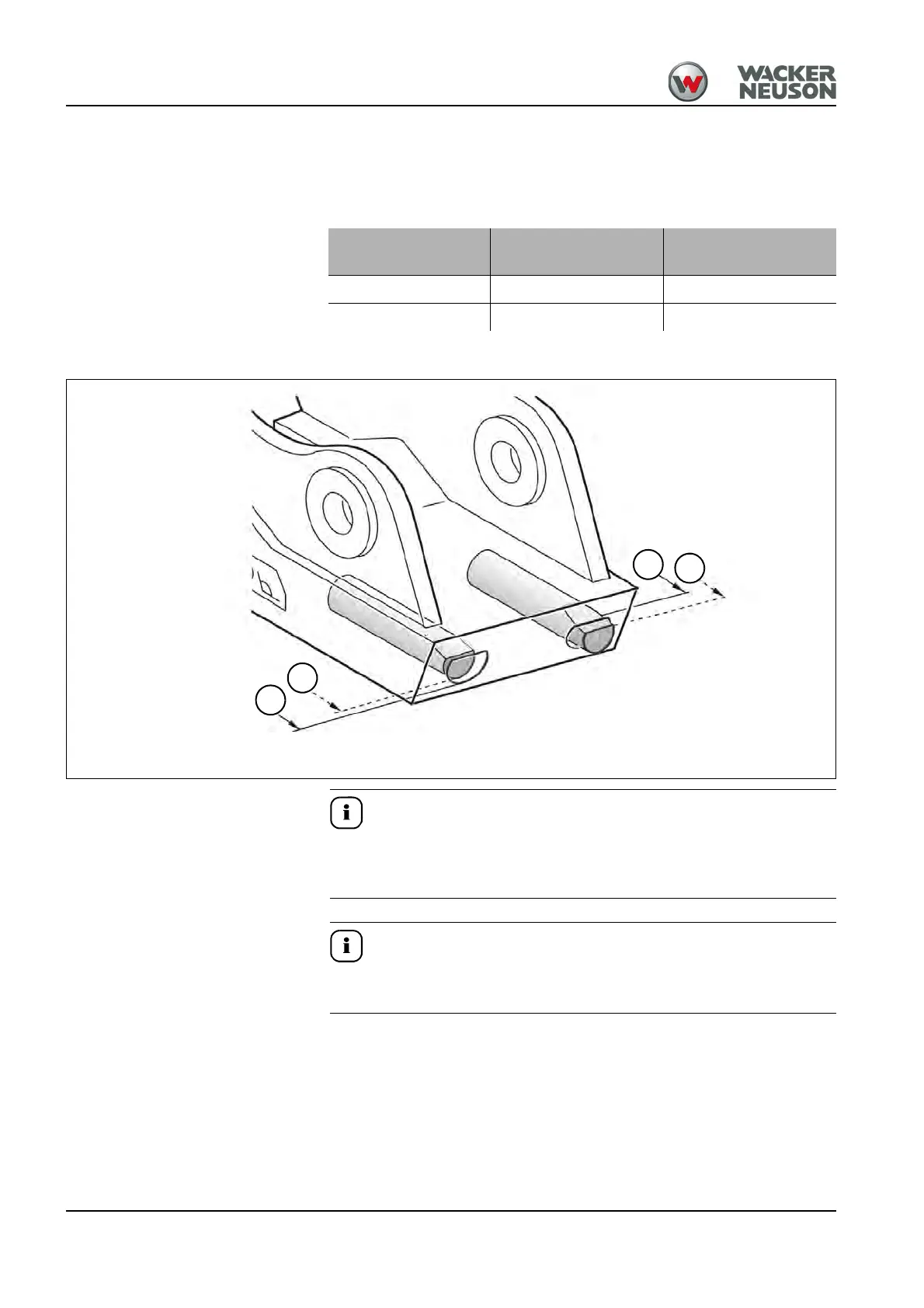

Fig. 269 Symbolic representation
Z
Y
Y
X
