Maintenance
Drive
BA RD24_RD28 en us 06
119
Exchanging the scraper
NOTE
Drive the machine over an inspection pit in order to obtain
easier access to the clamps to change the scraper.
1. Switch off diesel engine and remove ignition key.
2. Turn stop lever [536] to 0 position and move the scraper away.

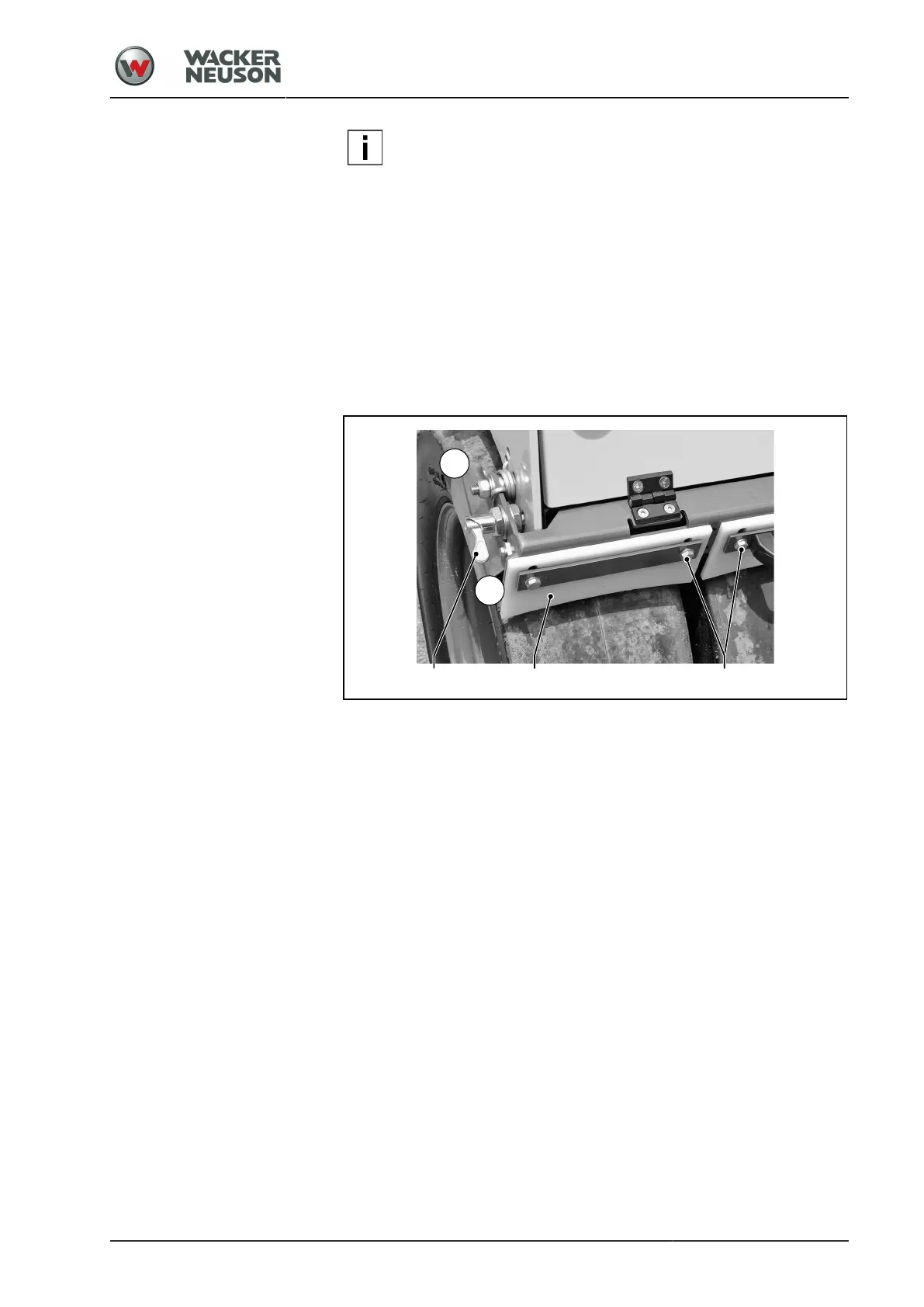

3. Loosen clamp connection [B].
4. Exchange the scraper [A].
5. Tighten the clamp connection.
4.04.03 Checking scraper tyre
General Only with scrapers that are properly adjusted you will achieve a clean tyre
surface. Check the condition of the scrapers. Replace worn scrapers in
good time.
If the scrapers are worn to the extent that dirt adhering to the tyres is
no longer removed during work, the scrapers must be re-adjusted or
changed.
Readjusting the scraper
(basic setting)
1. Switch off diesel engine and remove ignition key.
2. Turn stop lever [536] to 0 position and move the scraper [A] away.
3. Loosen clamp connection [B] (2x).
4. Push scraper [A] to the tyres. Establish a clearance of 10 mm
between the tyres and the scrapers.
5. Tighten clamp connection [B].
