Wacker Neuson RD 24 User Manual

Maintenance
General maintenance instructions
100
BA RD24_RD28 en us 06

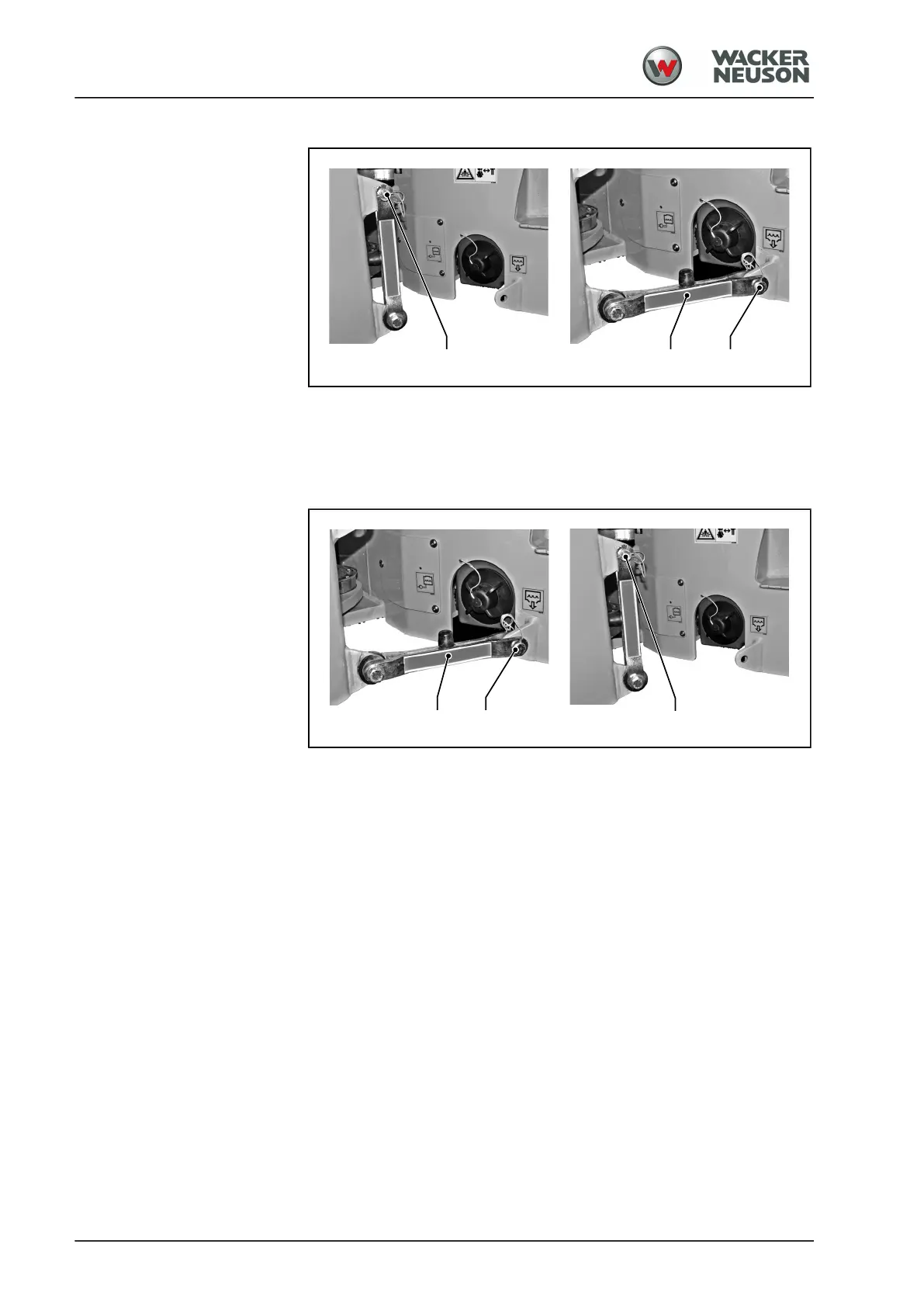

4.00.05 Safety strut
Applying safety strut
15460
C
A / B
A / B
1. Open bolt retainer [A] and remove together with the bolt [B].
2. Turn coupling bar [C] to the opposed locking device and secure with
the bolt [B].
3. Mount the bolt retainer [A] on the bolt [B] and lock the retainer.
Releasing safety strut
15461
C
A / B
A / B
1. Open bolt retainer [A] and remove together with the bolt [B].
2. Turn coupling bar [C] to the frame and fasten it with the bolt [B] on the
frame.
3. Mount the bolt retainer [A] on the bolt [B] and lock the retainer.
4.00.06 Welding work on the machine
Preparation
■
Observe the instruction manual of the diesel engine.
■
In order to protect electronic components as e. g. central processing
unit, monitor unit, sensors, relays etc., all connectors must be pulled
out prior to welding work.
■
The negative terminal of the welding appliance must be applied in
the vicinity of the weld directly on the component to be welded. Pay
attention that it has good contact and remove insulating colour coats.
■
If possible, keep welding leads away from the leads of the machine
(induction). If not possible, the welding leads must cross the machine
leads.
■
Touch only the welds with live electrodes. Other components may be
damaged if coming in contact with the electrodes. Prior to welding
works remove components which may get damaged by heat or
welding work.
■
Ensure that there are no inflammable or combustible materials /
gases (e.g. fuel, oil, etc.) can get into the vicinity of the welds.
