Operation
Water sprinkling
84
BA RD24_RD28 en us 06
Sprinkler nozzle check when
engine is at a standstill
Requirement:
1. Engine stopped
2. EMERGENCY STOP [302] — position DOWN
3. Switch [310] — position I
4. Parking brake [304] — APPLIED
5. Driving lever [501] — max. to the FRONT
6. Switch [317] — ON
If these preconditions are met, the water pump runs in interval operation
with the selected sprinkling stage.
To switch off:
1. Switch [317] — OFF
2. Drive lever [501] — CENTRE
3. EMERGENCY STOP [302] — position UP
On risk of frost
Frozen water leads to damage to the sprinkler system. Therefore, it must
be drained before frost begins.
Emptying the water sprinkling system:

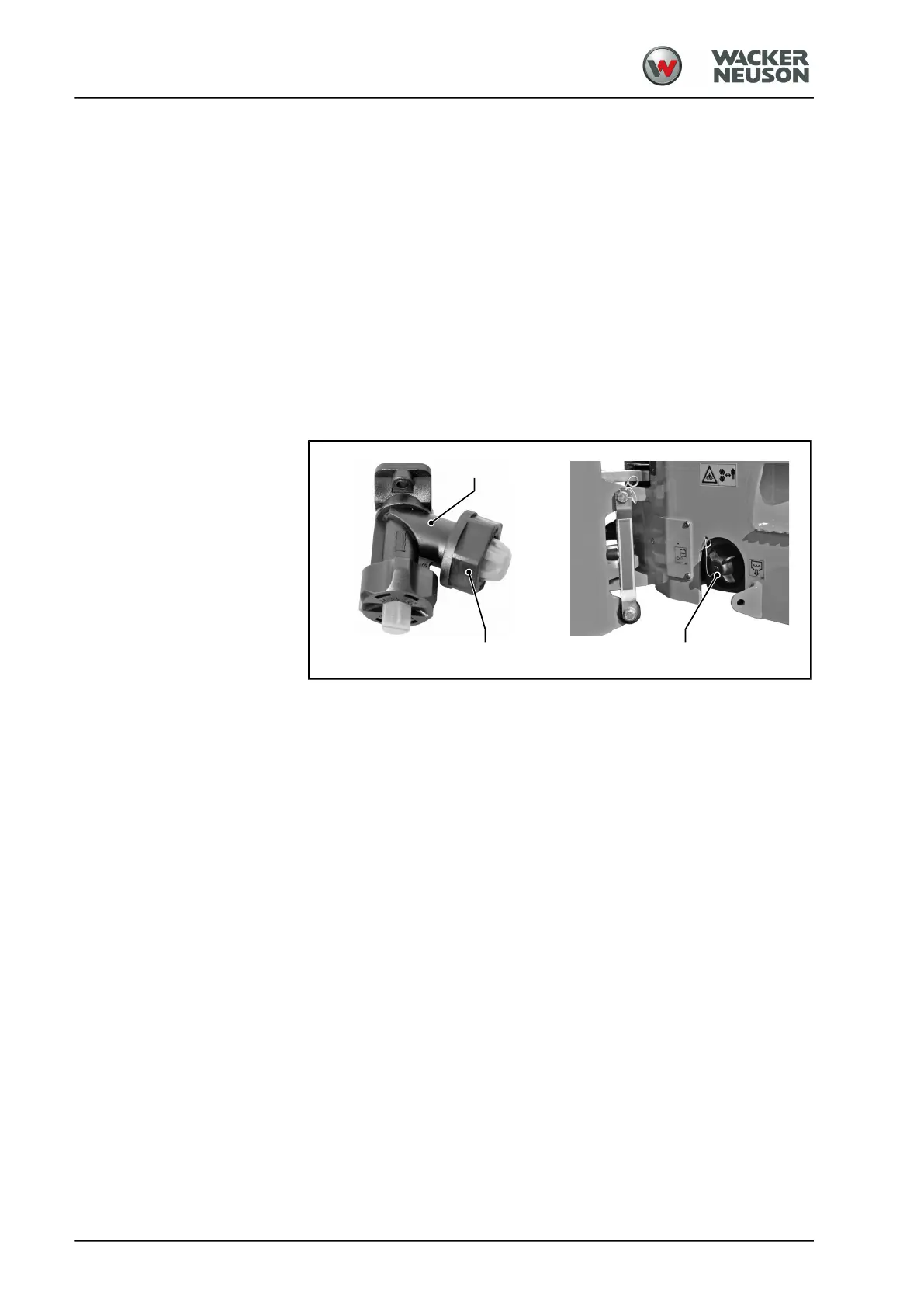

1. Unscrew lateral cap nut [D] from the sprinkler nozzles [C] and remove
together with valve insert and membrane. Reassemble spraying
nozzle after emptying the nozzle casing.
2. Unscrew filter head [E] at the water tank and remove it together with
the compression spring (observe gasket ring on filter head).
3. Pull the filter insert from the water tank.
4. Clean filter insert, compression spring, and filter head and store in
tool cabinet.
5. Re-fit filter insert, compression spring and filter head only before
starting work.
