RD 27 Lifting and Transporting
wc_tx001351gb.fm 23
3 Lifting and Transporting
3.1 Lifting the Machine
Prerequisites
Lifting equipment (crane or hoist) capable of supporting 2722 kgs. (6000 lbs.)
Four lifting hooks and chains capable of supporting 2722 kgs. (6000 lbs.)
Procedure
Follow the procedure below to lift the machine.
1. Stop the engine.
2. Engage the parking brake.

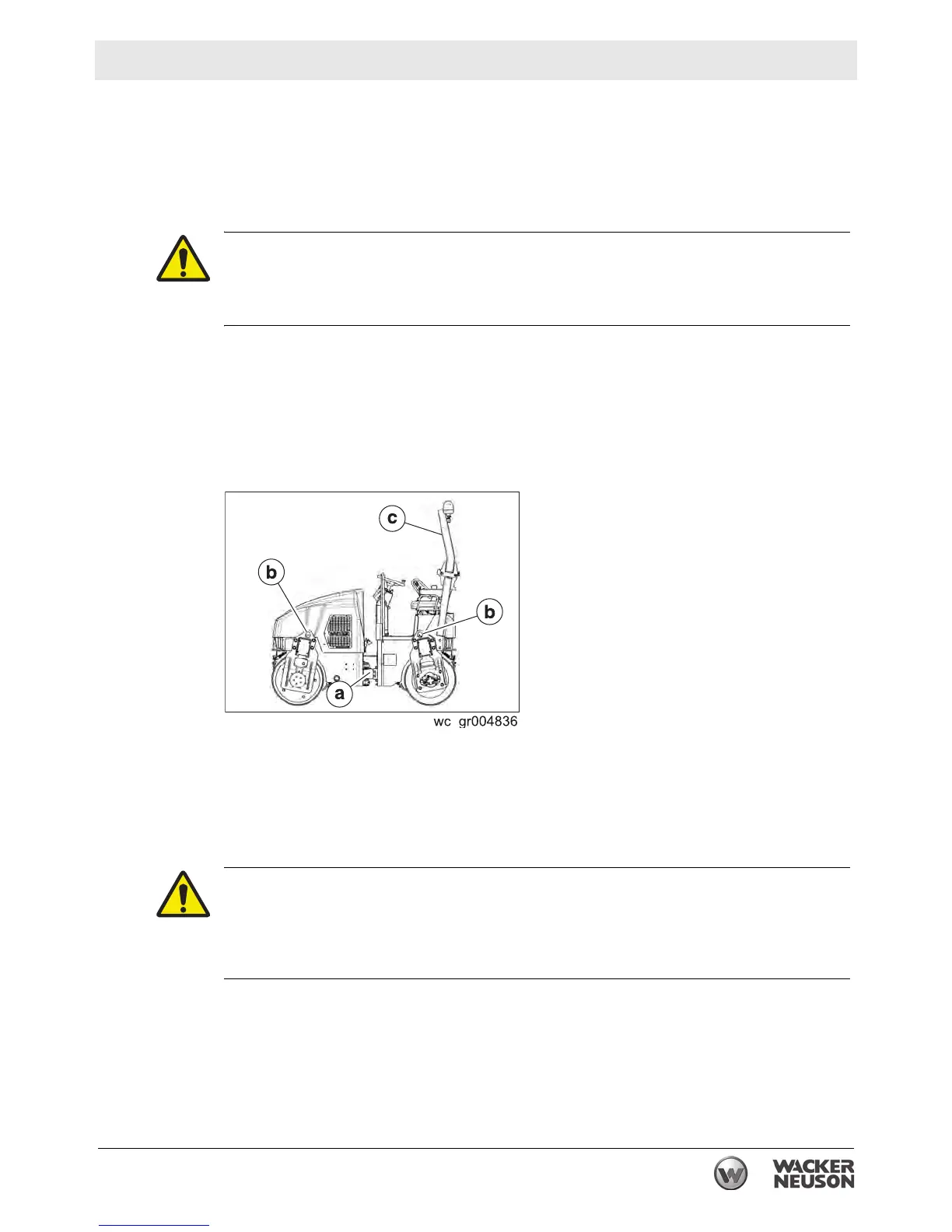

3. Lock the articulated steering joint (a).
4. Attach one lifting chain to each of the four lifting eyes (b) on the machine (two
per side) using hooks or shackles.
5. Attach the other end of the chains to the lifting equipment.
6. Lift the machine as necessary.
WARNING
Crushing hazard. You may be crushed if the lifting devices fail.
f Never stand under, or get onto, the machine while it is being lifted or moved.
f Use only the designated lifting points to lift the machine.
CAUTION
Crushing / machine damage hazards. The Roll Over Protection Structure (ROPS)
(c) is intended strictly to protect the operator during a rollover or tip-over incident.
The ROPS must not be used to lift the machine.
f Use only the designated lifting eyes to lift the machine.
