5.31 Adjusting the Forward/Reverse Lever
Prerequisites
Machine shut down
Parking brake engaged
When
Every 1000 hours of service or yearly
Procedure
Follow the procedure below to adjust the tension (i.e., the amount of force required
to move) of the forward/reverse lever.

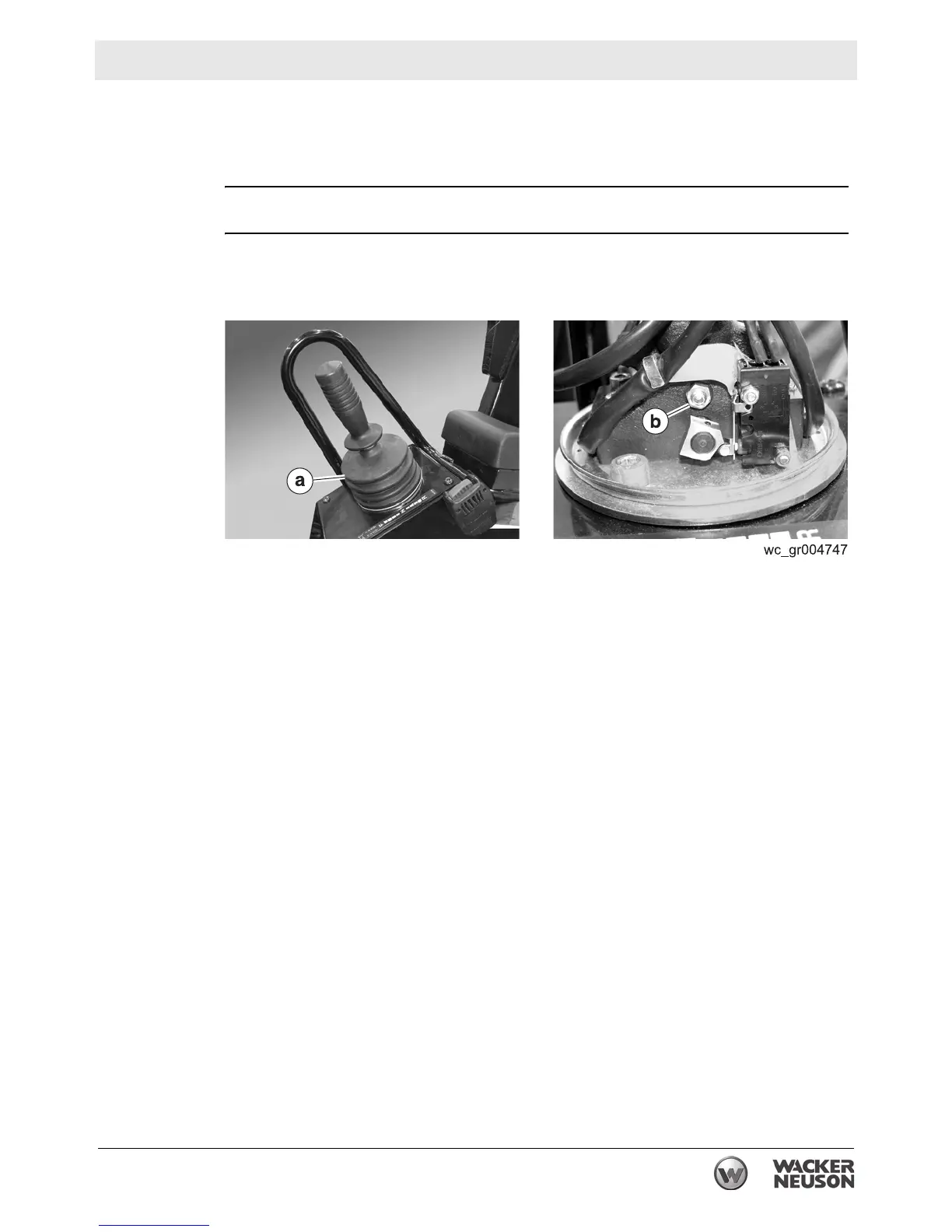

1. Lift up the boot (a) of the forward/reverse lever to expose the mechanism.
2. Loosen the lock nut (b).
3. Adjust the Allen screw until the desired firmness of the forward/reverse lever is
reached, then tighten the lock nut.
4. Reposition the boot.
