5.24 Lubricating the Steering Cylinder
Prerequisites
Machine shut down
Grease gun
When
Every 250 hours of service or every 3 months
l
Procedure
Follow the procedure below to lubricate the steering cylinder.

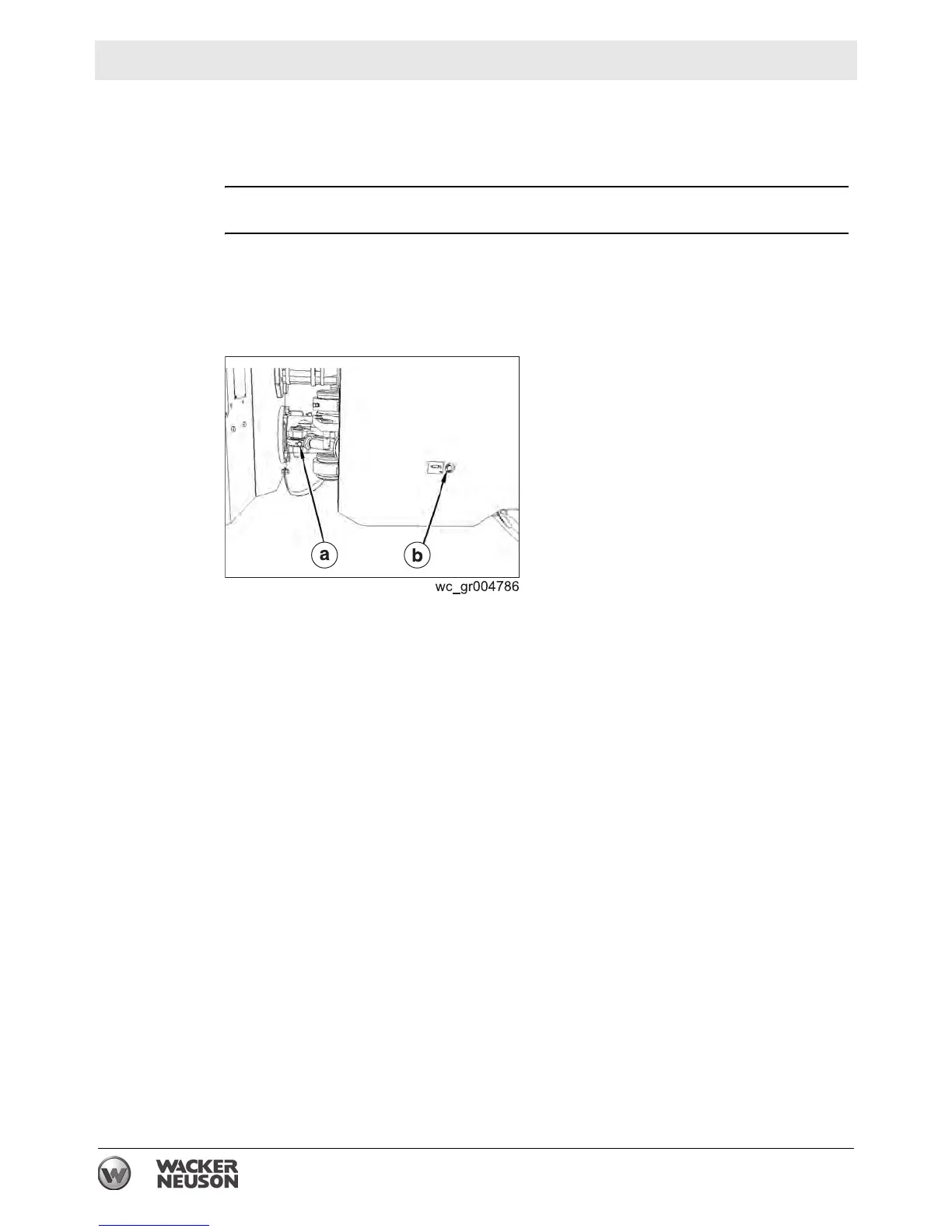

One end (a) of the steering cylinder is located in the pivot area. The other end (b) is
located on the right side of the engine compartment.
1. Clean the fittings.
2. Lubricate the fittings with a grease gun.
