RD 27 Operation
wc_tx000814gb.fm 29
4.5 Using the Roll Over Protection Structure (ROPS)
Background
The machine is equipped with a Roll Over Protection Structure (ROPS). The ROPS
is designed to protect the operator in a rollover accident.
Positioning
Follow the procedure below to position the ROPS in the upright position.

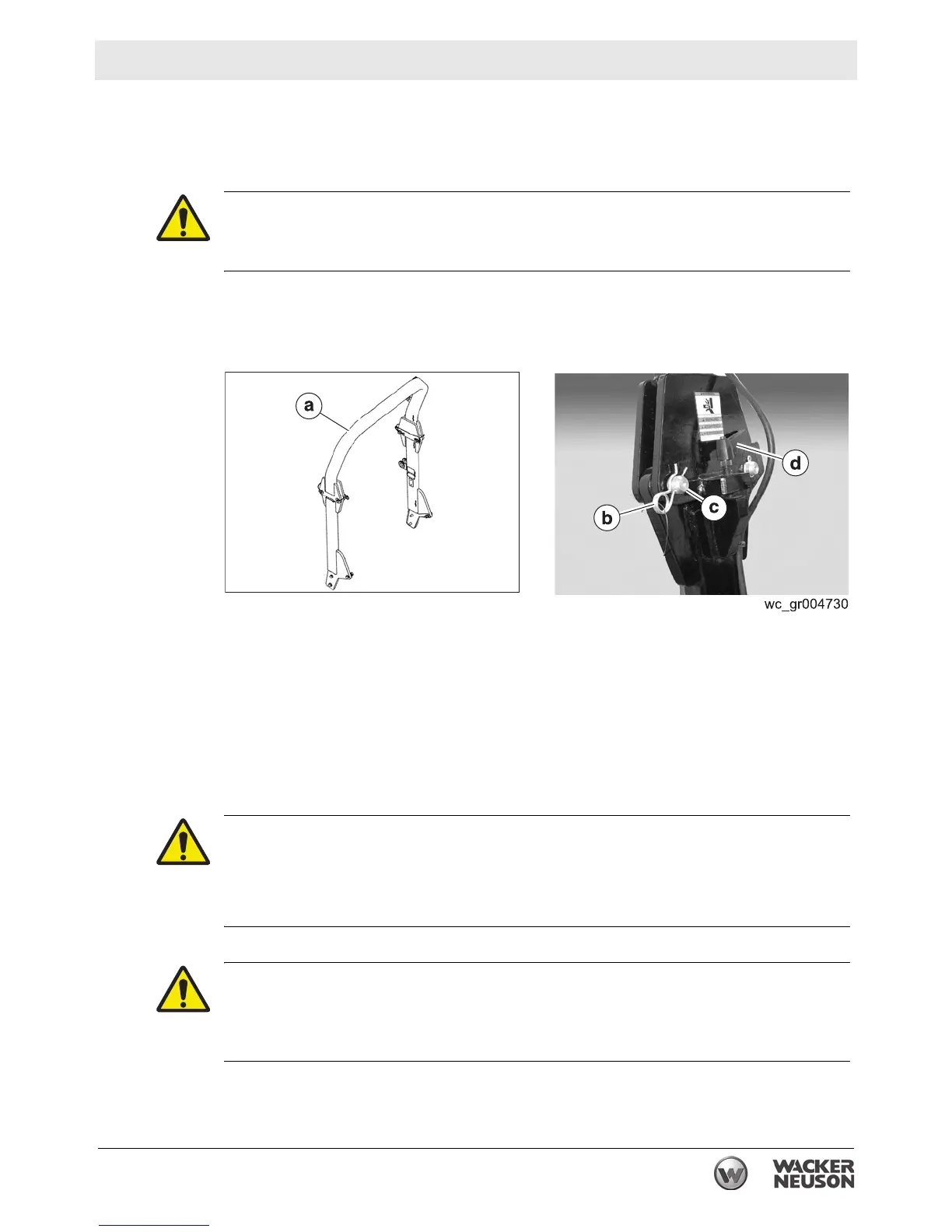

1. Support the ROPS (a) using a crane and suitable rigging capable of supporting
70 kg (155 lbs.).
2. Remove the safety pin (b) and pull out the locking pin (c).
3. Lift the ROPS into the upright position.
4. Insert the locking pin and secure it with the safety pin.
5. Tighten the adjusting screw (d) as needed to reduce vibration.
Keep the ROPS in the extended (upright) position when using the roller.
WARNING
Crushing hazard. You may be crushed if the machine rolls over.
f Never use the machine without the ROPS in place.
WARNING
Crushing / machine damage hazards. The ROPS is intended strictly to protect the
operator during a rollover or tip-over incident and must not be used to lift the
machine.
f Use only the designated lifting eyes to lift the machine. See Lifting the Machine.
WARNING
Personal injury hazard. The ROPS is not a handhold for passengers. Passengers
can be seriously injured or killed from falls, tip-overs, or roll-over incidents.
f Do not allow anyone to ride on any part of the machine.
