4.4 Unlocking/Locking the Articulated Joint
Locking

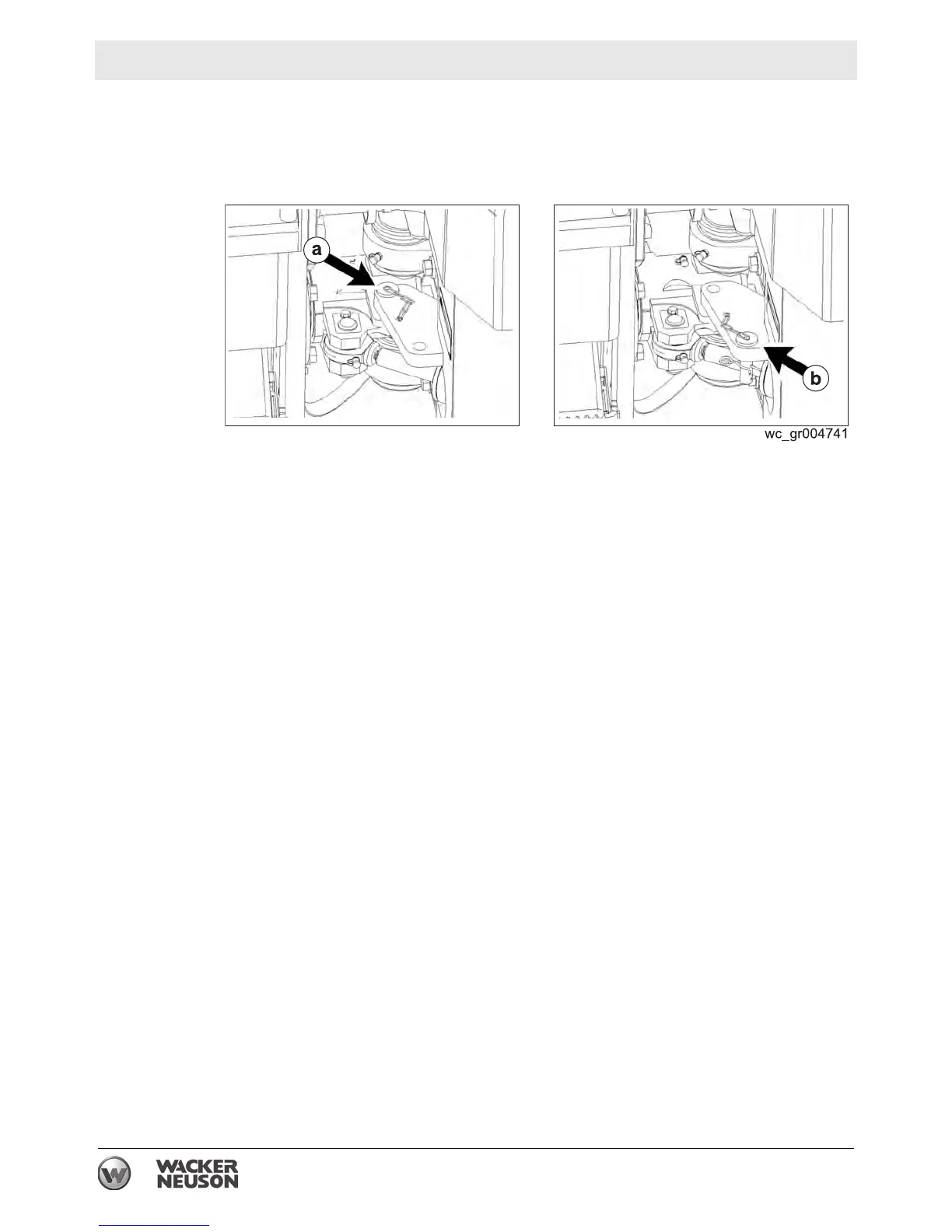

Install the articulated steering joint pin in the LOCKED position (a) before you lift
the machine, transport the machine, or perform maintenance near the center of the
machine.
Unlocking
Install the articulated steering joint pin in the UNLOCKED position (b) before you
operate the machine.
NOTICE: Attempting to steer the machine with the articulated steering joint pin in
the locked position may destroy the steering cylinder and locking mechanism.
