Maintenance RD 27
96 wc_tx000815gb.fm
Continued from the previous page.

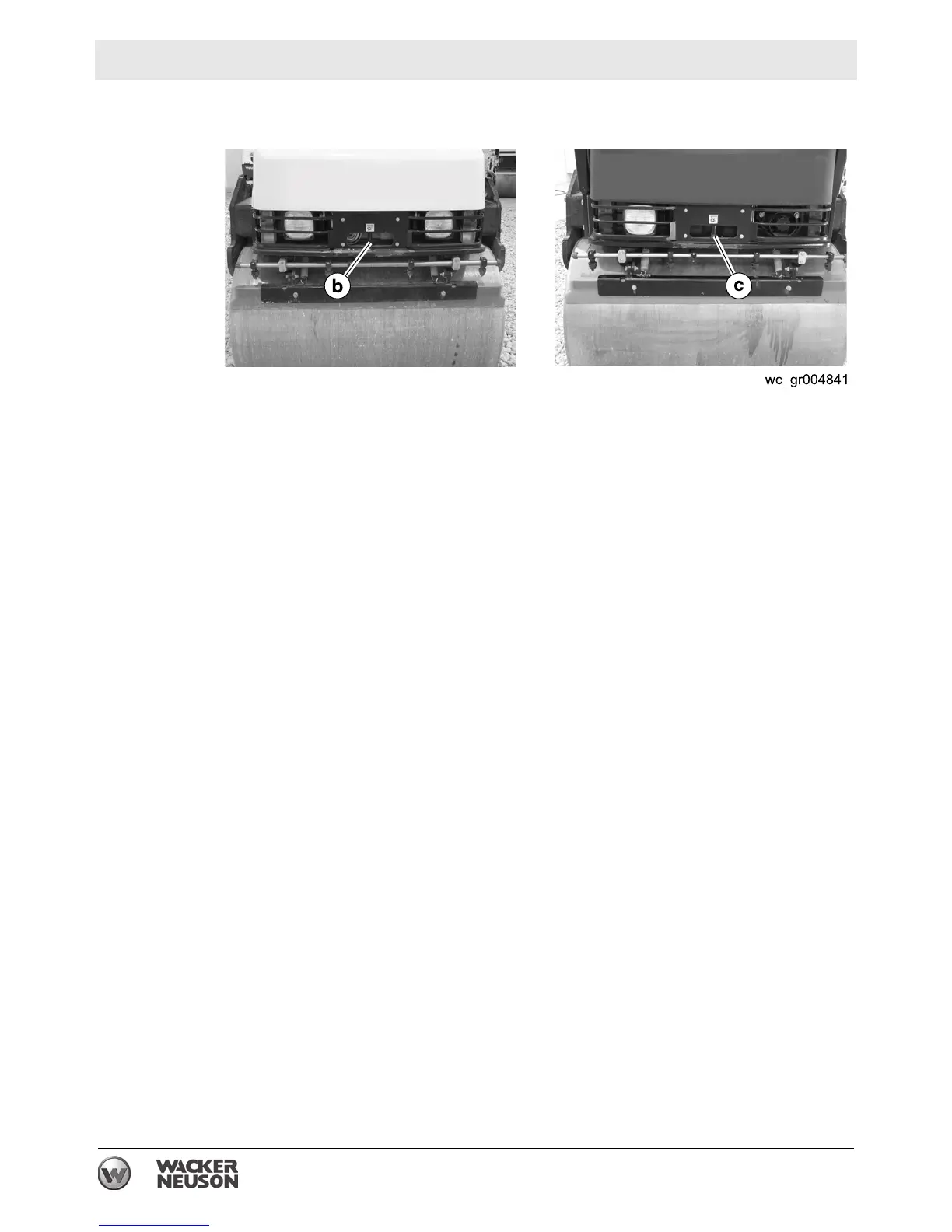

6. Connect the tow lines at the tie down bars (b and c).
7. Attach tow lines to the towing machine.
8. Remove the blocks from the drums.
9. Tow the machine as needed.
10.Once the machine is at the desired location, block the drums.
11.Close the bypass valve by turning it two full turns in the clockwise direction.
12.Disconnect the tow lines.
To Next Page
