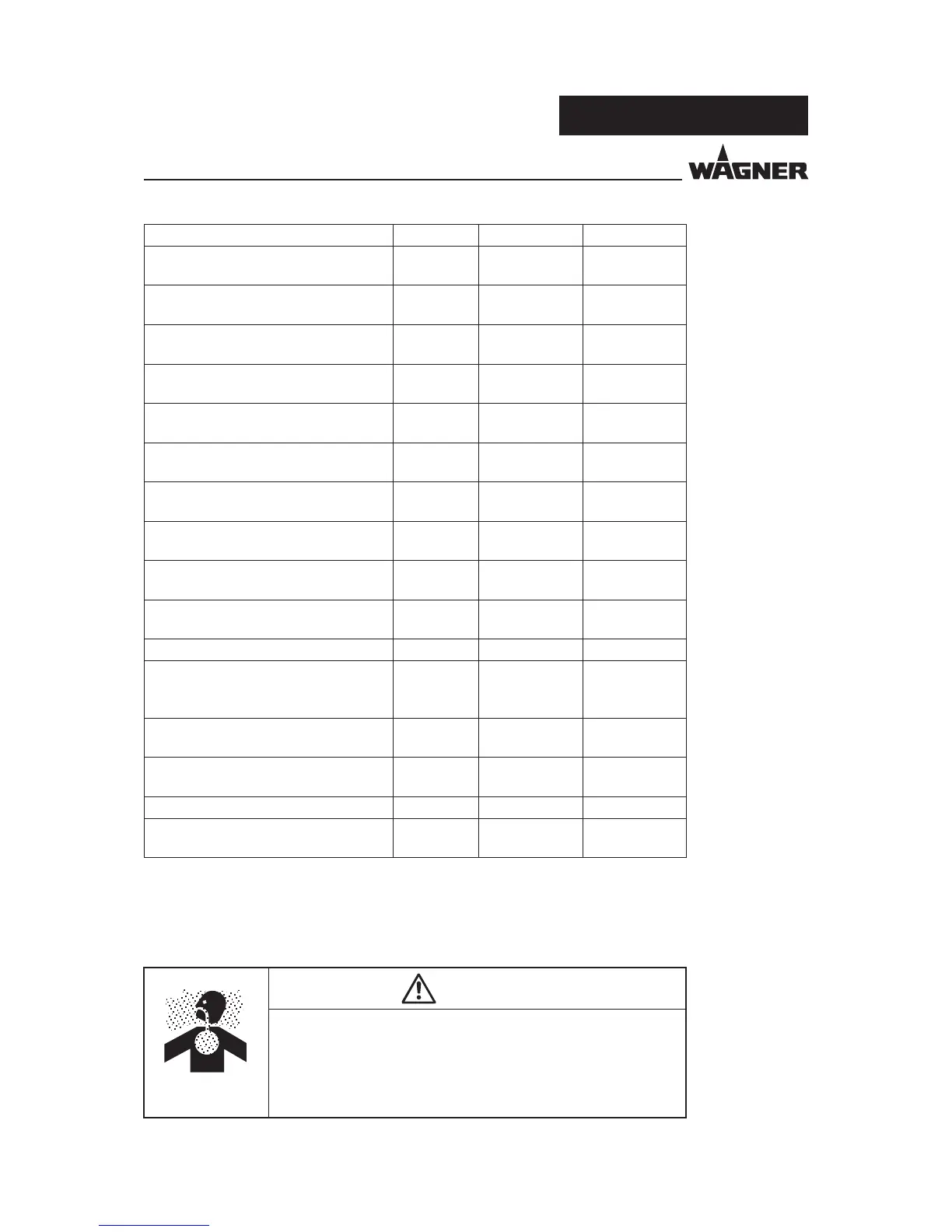

WAGNER Cobra 40-10 Operating Manual

14
Cobra.
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851
SIHI_0023_GB
WARNING
Outgoing air containing oil!
Risk of poisoning if inhaled
Provide water-free and oil-free compressed air (quality standard
5.5.4 as per ISO 8573.1) 5.5.4 = 40 μm / +7 / 5 mg/m³.
* A rated sound pressure level measured at 1 m distance according to DIN EN 14462: 2005.
Reference measurements have been made by SUVA (Swiss accident insurance institute).
Description Units Cobra 40-10 Cobra 40-25
Ø air inlet connection (female) Zoll
inch
G 1/2 G 1/2
Min. Ø compressed air hose mm
inch
13
0.51
19
0.75
Air consumption at 0.6 MPa; 6 bar; 87
psi per DS
NL 3.5 8.3
Sound pressure level at maxi.
permissible air pressure *
dB(A) 74 76
Sound pressure level at 0.45 MPa; 4.5
bar; 65.27 psi air pressure *
dB(A) 72 74
Sound pressure level at 0.3 MPa; 3 bar;
43.5 psi air pressure *
dB(A) 69 71
Diameter piston of air motor mm
Inch
80
3.15
100
4
Diameter material inlet connection
(male)
mm M36x2 M36x2
Diameter material outlet connection
(female)
Zoll
Inch
G 3/8 G 1/2
Weight kg
lb
19
41.9
33
72.8
pH range of the material pH 3.5-9 3.5-9
Maxi. material pressure at pump inlet MPa
bar
psi
2
20
290
2
20
290
Material temperature °C
°F
+10 ÷ +80
+50 ÷ +176
+10 ÷ +80
+50 ÷ +176
Ambient temperature °C
°F
+10 ÷ +60
+50 ÷ +140
+10 ÷ +60
+50 ÷ +140
Allowable sloping position at work


±10 ±10
Filling amount hydraulic oil L
Cu inch
0.065
3.97
0.120
7.32

WAGNER Cobra 40-10 Specifications

General

Brand	WAGNER
Model	Cobra 40-10
Category	Water Pump
Language	English
