OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

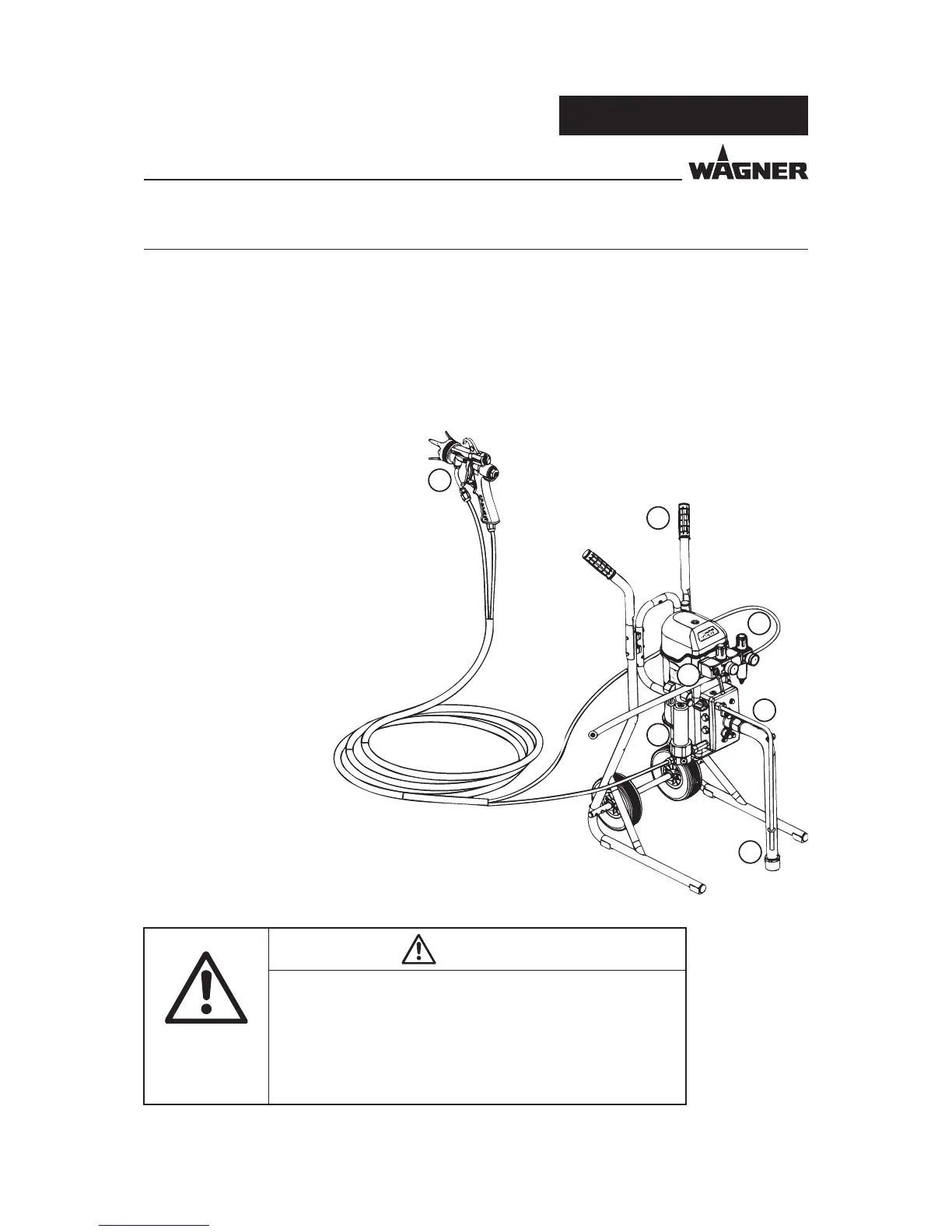

5 STARTING UP AND OPERATION
5.1 SET UP AND CONNECT
5.1.1 SET UP THE PUMP
Note
This pump can be used as part of a spraying system for Airless or AirCoat applications.
The components can be found in the accessories list, provided that the system was not
obtained as a spraypack.
The nozzles must be selected according to the gun instructions.
Procedure:
1. Assemble the pump on a base frame a
trolley (6), or wall mounting.
2. For AirCoat systems:
Fit the additional fi lter pressure regulator (7)
(optional).
3. Attach high-pressure fi lter (3) (optional).
4. Fit suction system (5).
5. Attach return hose (4) (optional).
6. Connect high-pressure hose and gun (2) as
laid down in operating instructions.
WARNING
Inclined surface!
Risk of accidents if the unit rolls away/falls
Position the carriage with the piston pump horizontally.
If the surface is inclined, position the feet of the carriage towards
the gradient.
Secure the carriage.
