56
Cobra.
105
106
109
51
53
54
55
53
57
59
60
61
62
70
63
58
58
B_02941
40 Nm; 29.5 lbft
111
111
29
59
30
31
15
16
32
33
34
35
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

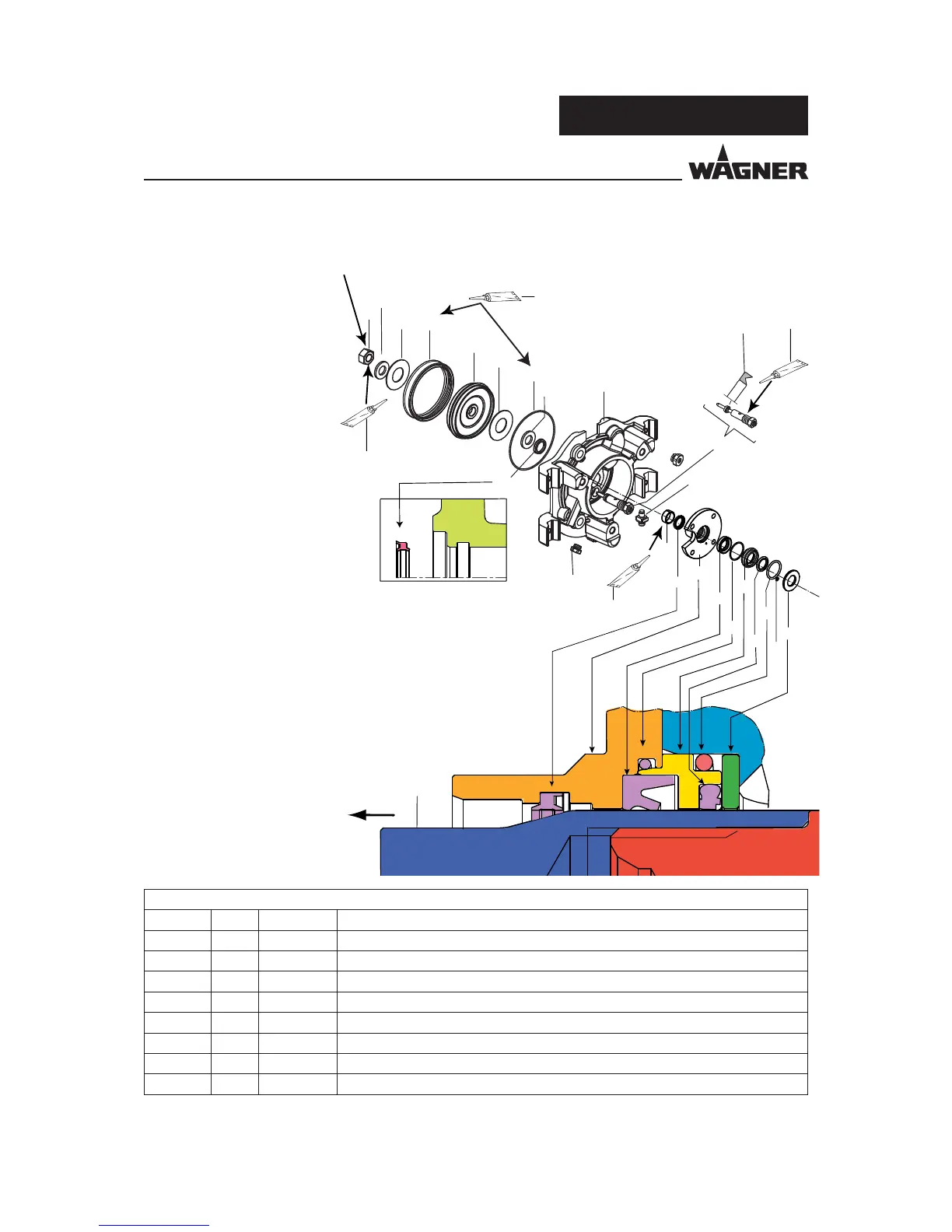

8.7 COBRA 40-25 MATERIAL PUMP
Cobra Material pump 40-25
Pos K Qty Part No. Description
1 1 322422 Inlet bushing
2 4 9900204 Hexagon screw
3 4 9920102 Washer
4 2 341241 Inlet valve pusher assy. see chapter 8.11
5 1 2316324 Inlet housing assy. see chapter 8.8
6 8 2306195 Hexagon screw
7 8 9925011 Washer
8
◆★
2 2306183 O-ring
◆ = Wearing part ★ = Included in Service set Cobra material pump 40-25
● = Not part of standard equipment. Available, however, as additional extra
Note:
The assembly of the piston rod (25) may
be accomplished only with screwed on
assembly arbor (109).
Grease all the o-rings and seal slightly
using grease (111) before mounting
them.
