WAGNER Cobra 40-10 Operating Manual

15
Cobra.
B
D
E
F
H
I
K
L
M
G
A
C
B_01201
Cobra 40-10
B_02943
G
P
Q
N
O
R
F
B_02944
B
D
E
F
H
I
L
M
G
A
C
K
Cobra 40-25
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

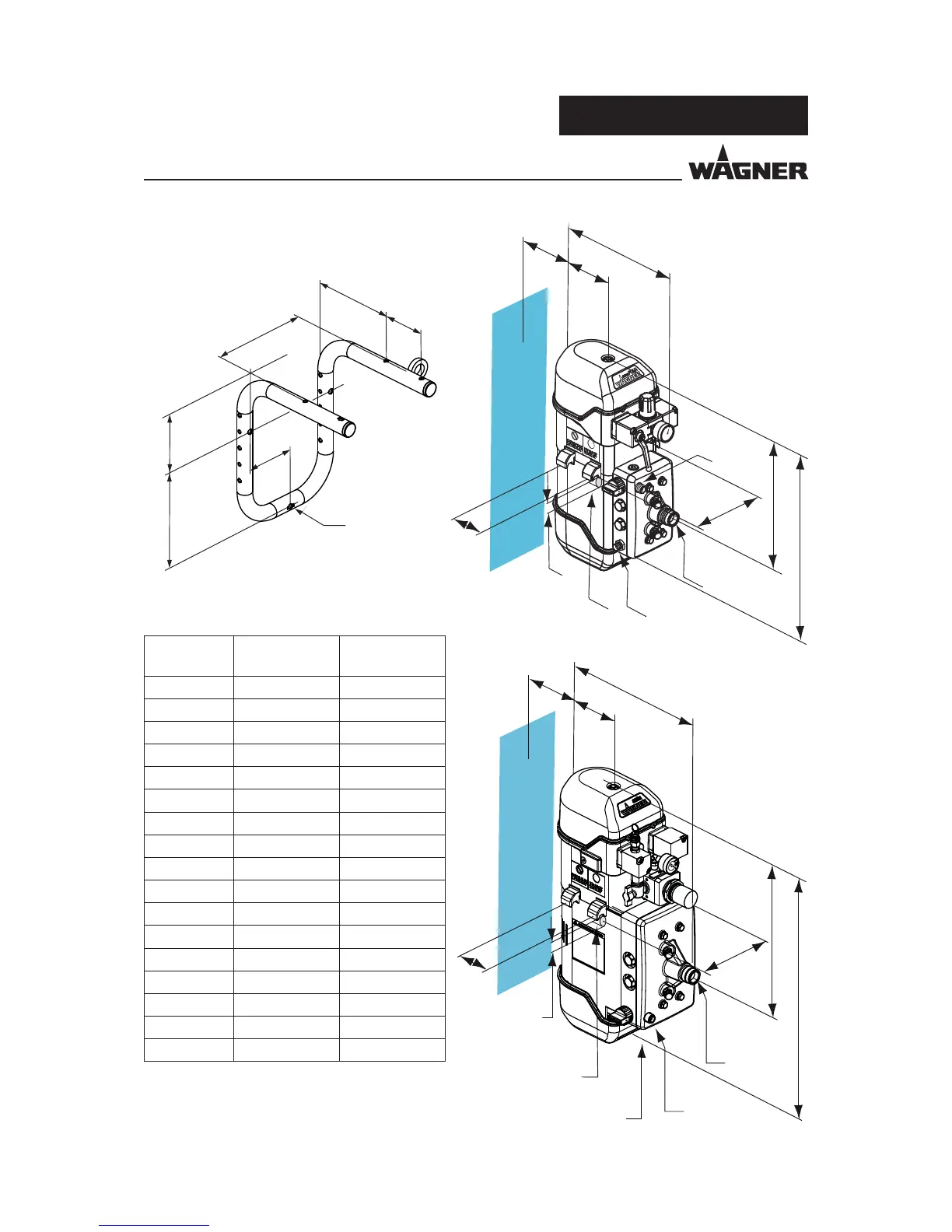

4.3.4 DIMENSIONS AND CONNECTIONS
Dimension Cobra 40-10
mm; inch
Cobra 40-25
mm; inch
A 505; 19.88 605; 23.82
B 313; 12.32 379; 14.92
C 322; 12.68 373; 14.69
D 134; 5.28 134; 5.28
E 55; 2.16 55; 2.16
F 182; 7.16 182; 7.16
G 80; 3.15 80; 3.15
HM6 M6
I ø25; ø0.98 ø25; ø0.98
K M20x2 M20x2
L M36x2 M36x2
M NPSM1/4-18 NPSM3/8-18
N 149; 5.87 149; 5.87
O 91; 3.58 91; 3.58
P 107; 4.21 107; 4.21
Q 175; 6.89 175; 6.89
R ø7; ø0.28 ø7; ø0.28
