WAGNER Cobra 40-10 Operating Manual

67
Cobra.
B_01239
1
3
2
10
10
10
12,13
14
9
7
8
12,13
12,13
11
6
4
5
90 Nm; 66 lbft
90 Nm; 66 lbft
100 Nm; 74 lbft
100 Nm; 74 lbft
90 Nm; 66 lbft
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

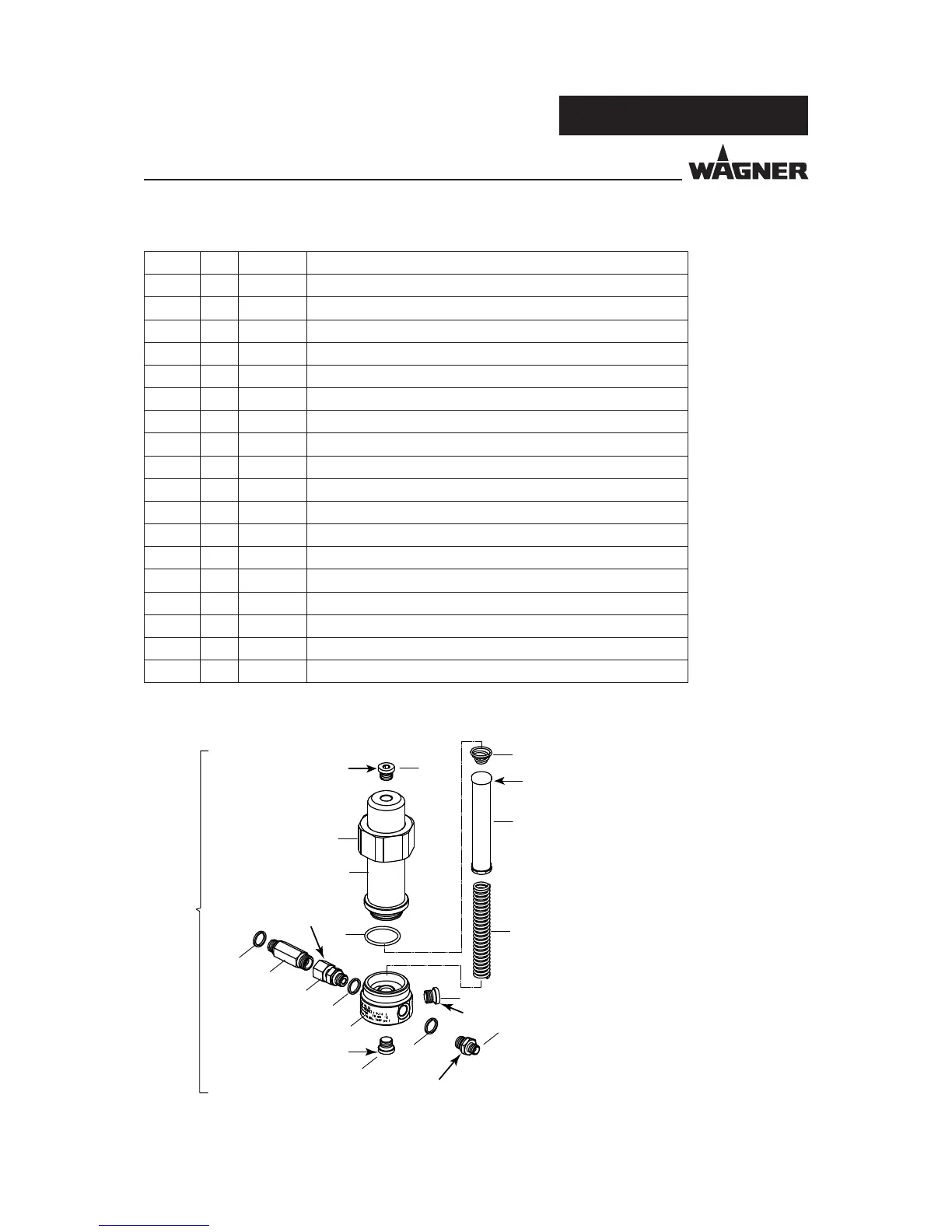

8.18 COBRA 40-10 HIGH PRESSURE FILTER
Identifi cation of the fi lter
Pos K Qty Part No. Description
1 1 322053 High pressure fi lter 3/8” (no ball valve)
2 1 367911 Filter housing
3 1 367912 Union nut
4 1 367555 Double connector NPSM1/4”-G3/8”
5
◆
1 367914 O-ring
6 1 367916 Screw-in socket
7 1 9894245 Filter support
8
◆
1 - Filter cartridges *
295721 * Filter cartridge 200
3514068 * Filter cartridge 100
3514069 * Filter cartridge 50
291564 * Filter cartridge 20
9
◆
1 3514058 Cone spring
10 3 9907127 Lock screw
11 1 9998680 Screw-in screw connection
12
◆
3 9925024 Sealing ring Cu
13
◆
3 9974111 Sealing ring Al
14 1 367910 Distribution housing
◆ = Wearing part
