WAGNER Cobra 40-10 Operating Manual

44
Cobra.
1
9
3
2
7
6
5
7
8
13
10
11
12
4
B_01226
25 Nm; 18 lbft
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

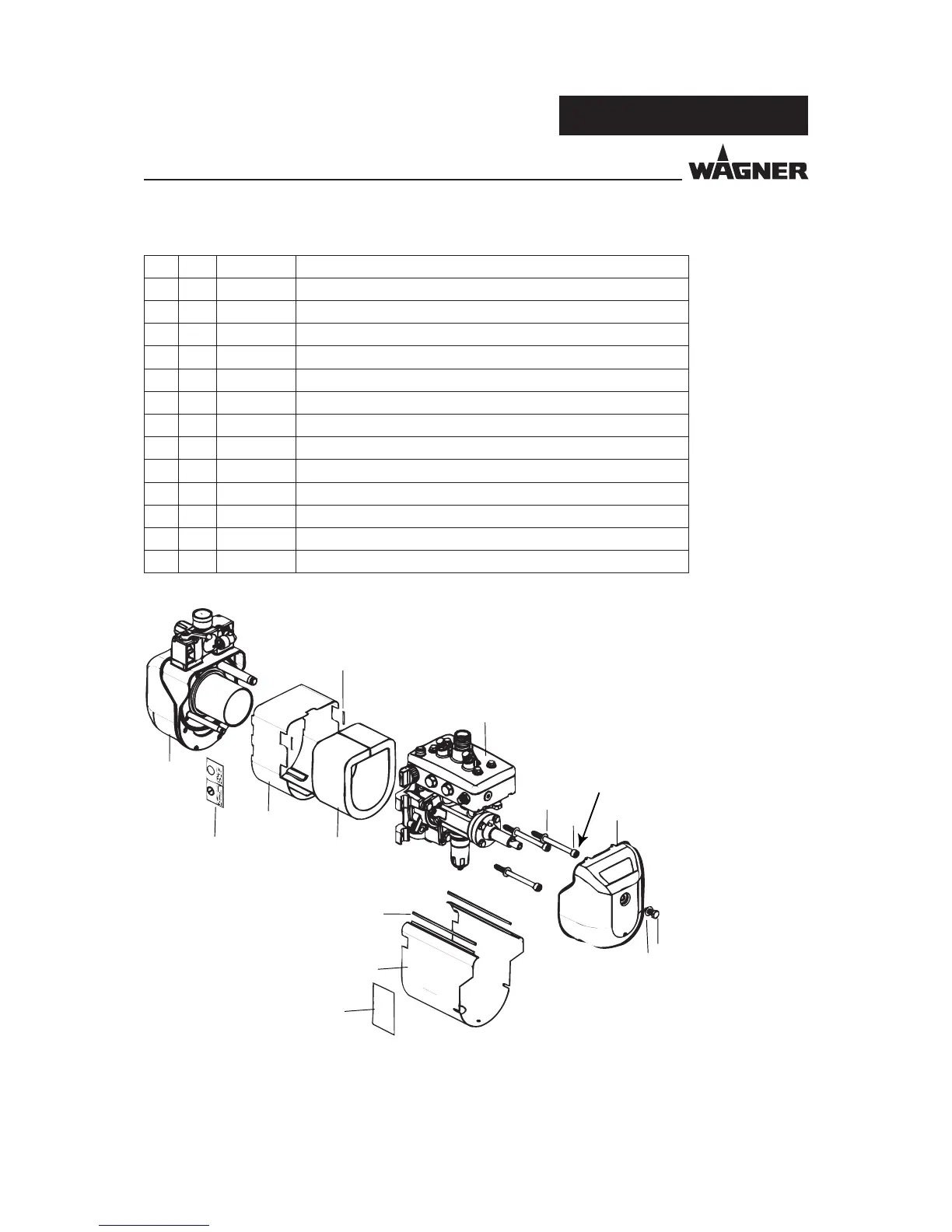

8.2 COBRA 40-10 - OVERVIEW MODULES
Pos Qty Part No.
Description
1 1 - Air motor 3/53
2 1 - Pump preassembled
3 1 322436 Shuttering air motor
4 1 322437 Shuttering Pressure stage
5 1 322235 Cap 4 with air-outlet
6 3 9907224 Hexagon socket head cap screw
7 4 9920106 Washer
8 1 9900107 Hexagon screw
9 1 367807 Danger sign
10 4 9999211 Edge protection profi le 30 mm; 1.18 inch
11 2 9999211 Edge protection profi le 164 mm; 6.46 inch
12 1 377887 Warning plate Fluid (only USA)
13 1 322438 Acoustical foam cylinder
