WAGNER Cobra 40-10 Operating Manual

61
Cobra.
2
3
4
5
6
7
11
6
8
1
10
1.9 ±0.1
B_01230
B_01232
7
4
5
6
3
2
1
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

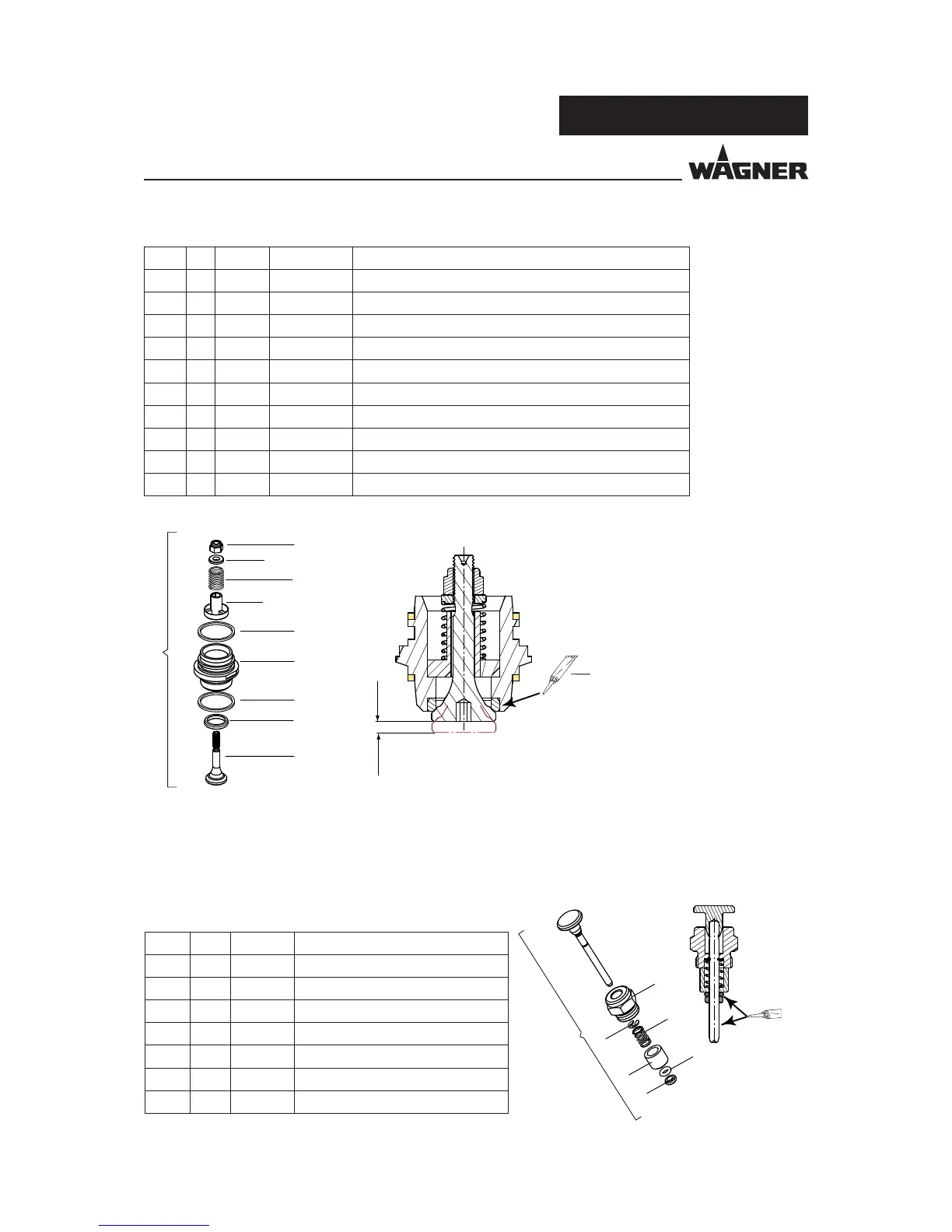

8.10 COBRA 40-10 INLET VALVE
Pos. 8:
Prepare the adhesive area with fast
cleaner Loctite Type 7063.
Pos K Qty Part No. Description
1 2 322914 Set inlet valves assy. Cobra 40-10
2 1 9912100 Hexagon nut with clamp
3 1 344334 Spring guide
4 1 190304 Compression spring
5 1 158333 Guide
6 2 341331 Sealing ring
7 1 344322 Valve housing
8 1 340346 Valve seat
10 1 9992528 Loctite 270, 50 ml; 50 cc
11 1 340342 Valve cone
8.11 INLET VALVE PUSHER
Pos Qty Part No. Description
1 1 341241 Inlet valve pusher assy.
2 1 9922724 Lock washer 3.2
3 1 341377 Sleeve
4 1 9994275 Compression spring
5 1 9971486 O-ring 4 x 2
6 1 341316 Scraper
7 1 341375 Lock screw
Grease with
vaseline
