WAGNER Cobra 40-10 Operating Manual

63
Cobra.
B_02292
1
2
3
4
6
7
8
5
OPERATING MANUAL
EDITION 01/2012
PART NUMBER DOC322851

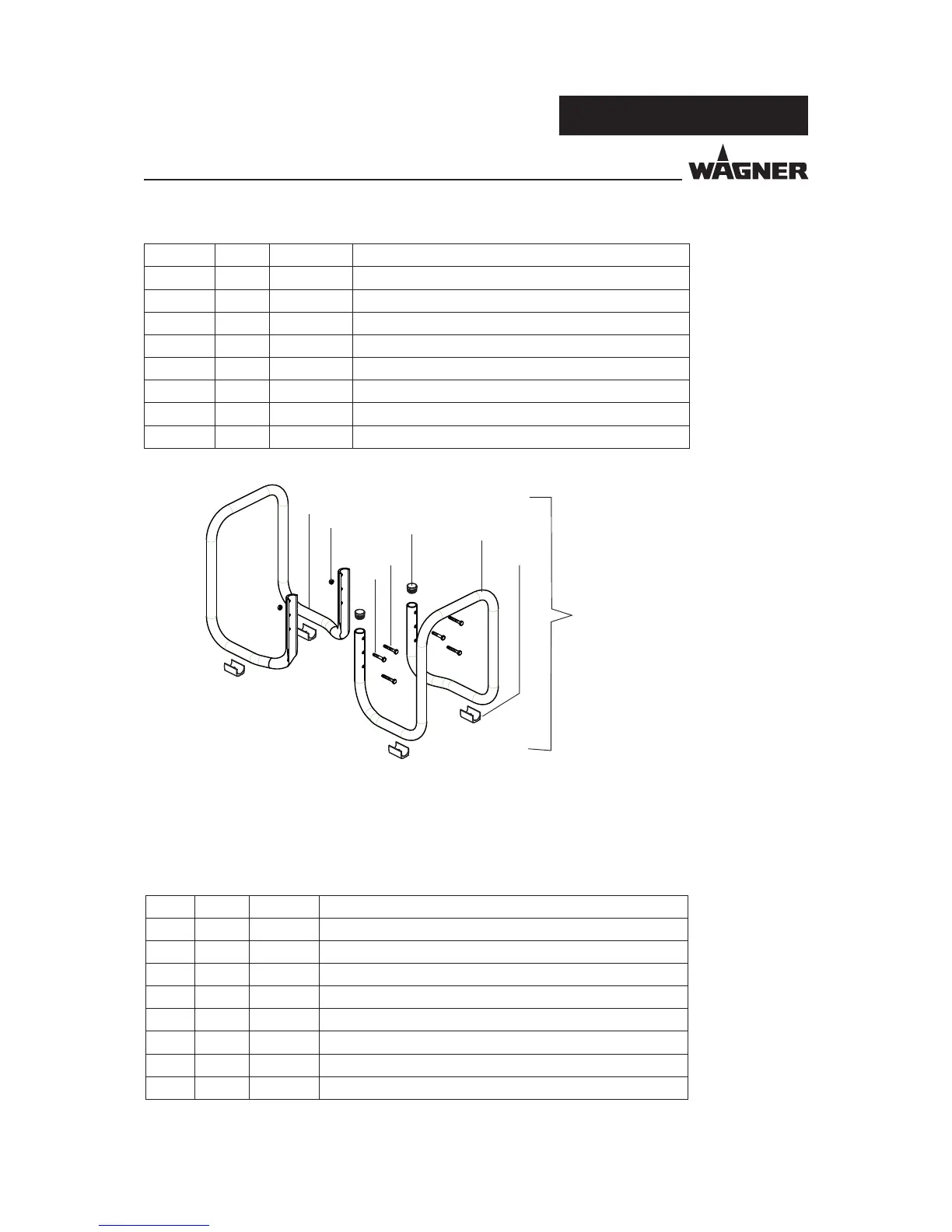

8.13 COBRA 40-10 BASE FRAME ASSY
Pos K Qty Part No. Description
1 322052 Base frame assy. Cobra 40-10
2 1 322442 Base frame pressed
3 1 322443 Carrier pipe
4 2 9990861 Stopper
5 4 9999209 Saddle feet for round tubes
6 2 9910204 Self-locking hexagon nut M6
7 2 9900202 Hexagon screw M6x40
8 4 9900126 Hexagon screw M6x45
Pos K Qty Part No. Description
1 2308732 Base frame Cobra 40-25
2 1 2308499 Base frame pressed
3 1 2308500 Carrier pipe
4 2 9990861 Stopper
5 4 9999209 Saddle feet for round tubes
6 2 9910204 Self-locking hexagon nut M6
7 2 9900202 Hexagon screw M6x40
8 4 9900126 Hexagon screw M6x45
8.14 COBRA 40-25 BASE FRAME ASSY.
