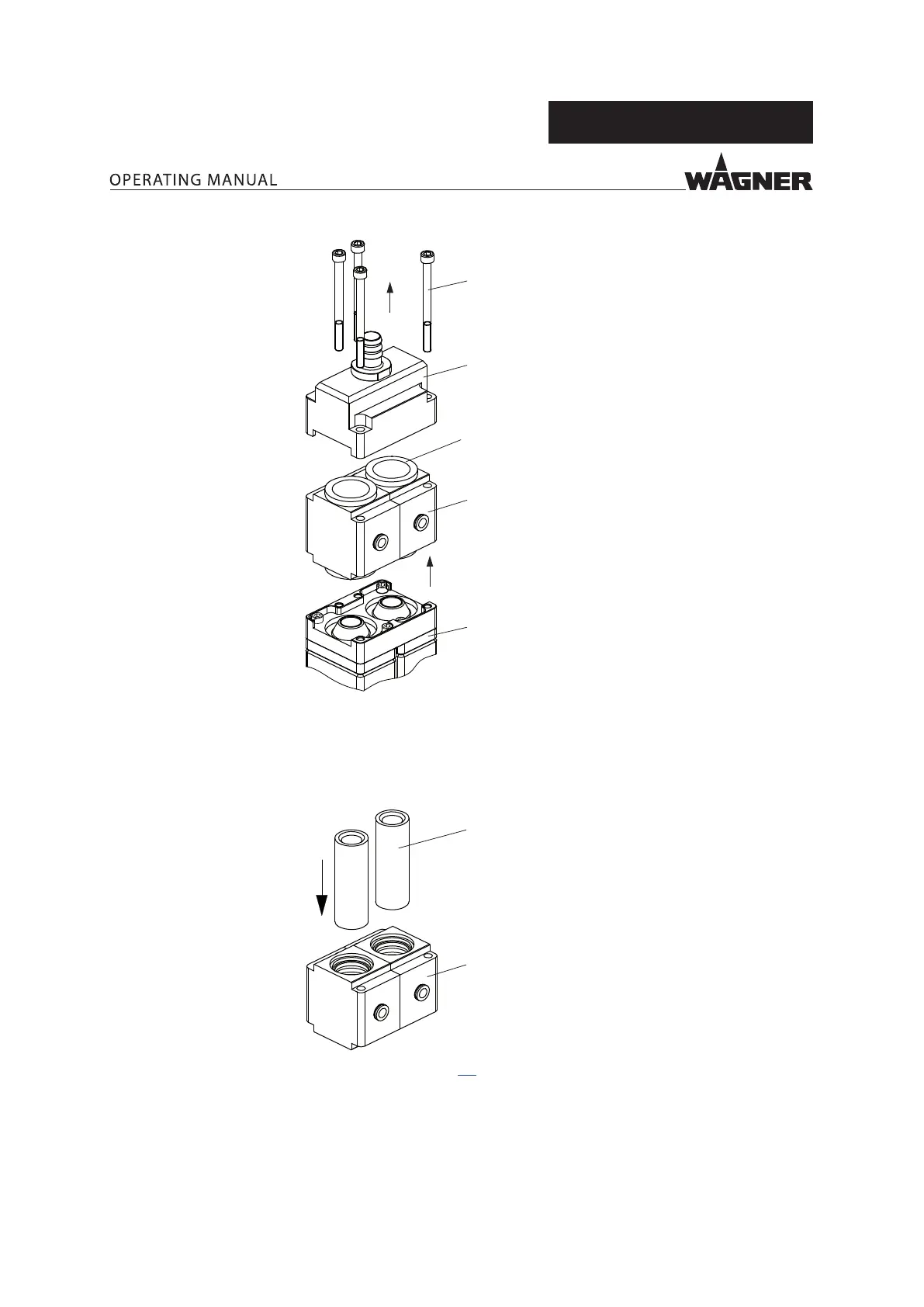

7. Unscrew screws 2 on the upper valve block.
8. Remove Y-piece 3 and valve housing 4 at the top of the pump body 5.
9. Unscrew screws (2) on the lower valve block.
10. Remove Y-piece (3) and valve housing (4) at the bottom of the pump body (5).
11. Remove old valve hoses 6 from the valve housings 4.
7
P_00009
4
12. Carefully insert new valve hoses 7 (note Chapter 8.3) into the upper and lower valve
housing 4.
