OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054
Hint:
For inserting the protective wedge the same wedge tool will be used.

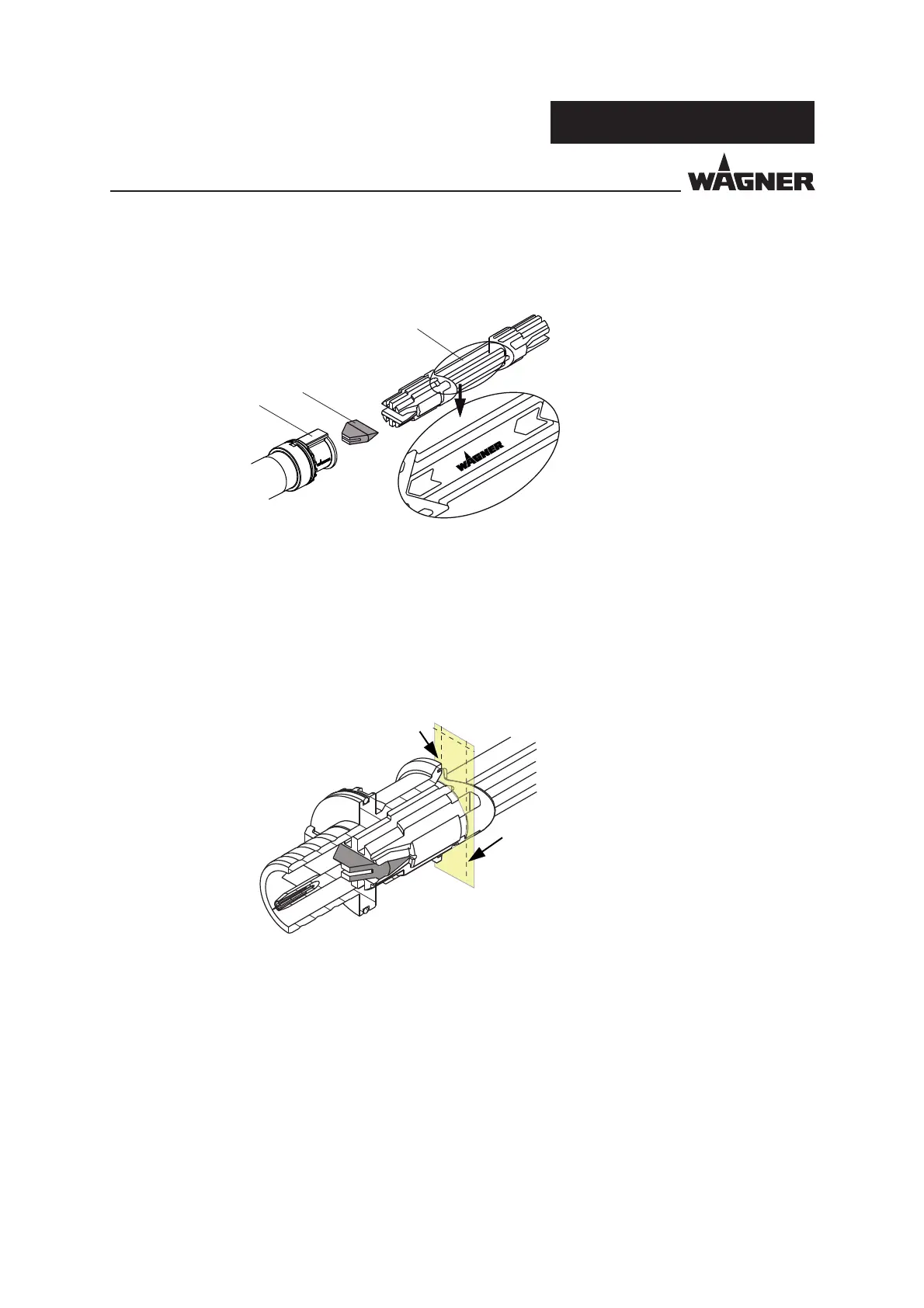

7. Guide the protective wedge 10 into the wedge tool 8.
8. Insert both parts in the opening on the electrode holder 9 to the stop.
9. If it is not possible to push the wedge tool in as far as the mark X, rotate the wedge tool
a little until it can be pushed into the mark. The mark X must be fl ush with the end Y of
the electrode holder.
10. The protective wedge is now correctly assembled and the wedge tool can be
pulled back out of the electrode holder. The protective wedge remains inserted in the
electrode holder.
11. Prior to re-fi tting, check whether the mating surface on the electrode holder and in
the spray gun housing have been thoroughly cleaned so that the electrode tip is
electrically connected to the high-voltage generator.
