Assembly Instructions C23i
26
DS60-3 Deck Leveling
The mower deck and support frame are jig welded
and the deck support linkage is factory adjusted.
Within normal tolerances, very little, if any, adjust-
ment should be required to level the deck. Tire
size and pressure will a󰀨ect the levelness of the
deck. Assure that all tires (tractor and deck
caster wheels) are properly inated prior to
checking deck levelness or performing the
deck leveling procedure.
Measuring Deck Levelness
1. Position the mower on a smooth, level sur-
face, and set the deck height to the most
common cutting position. Refer to Adjusting
Cutting Height on page 39.

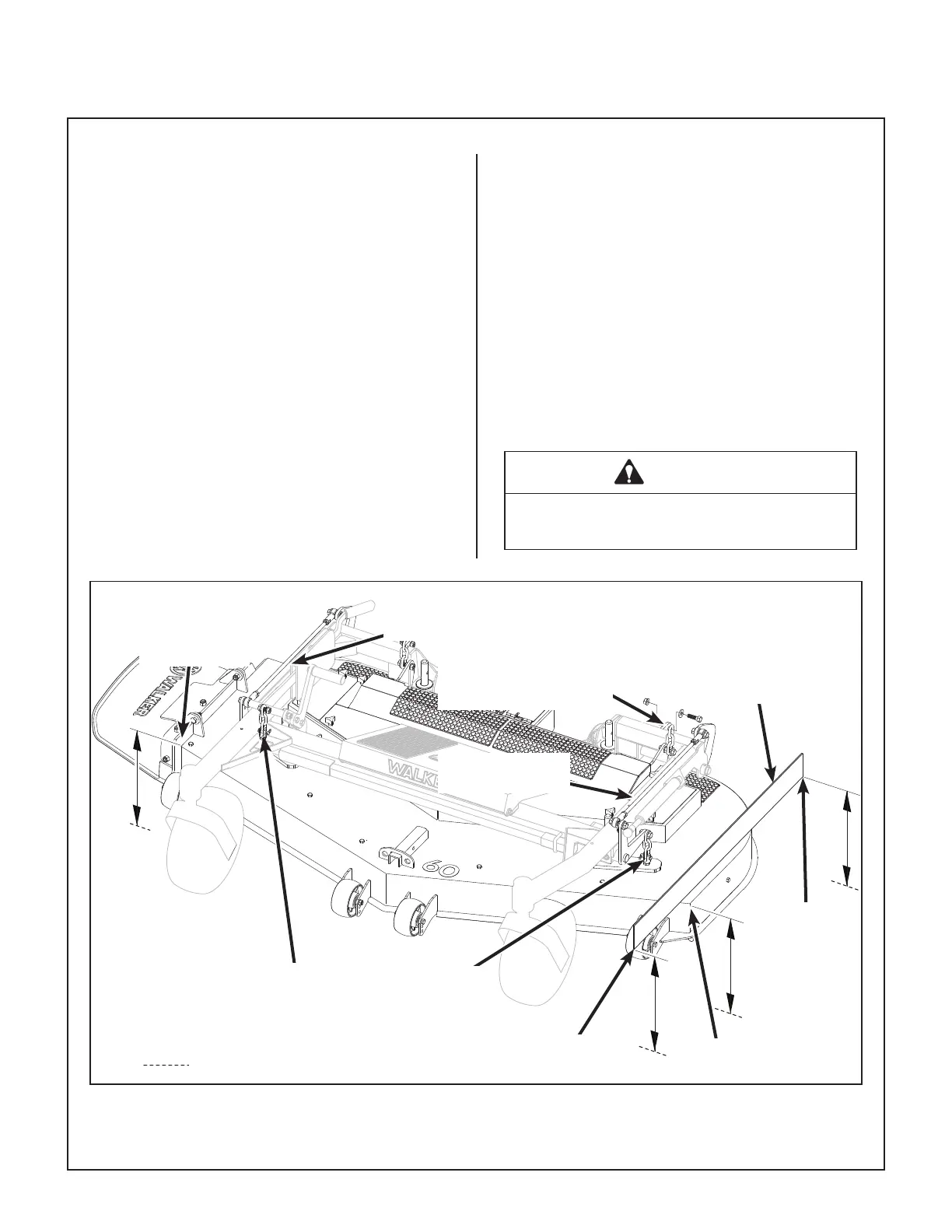

2. See the DS60-3 Deck Leveling illustration for
side-to-side and front-to-back deck level mea-
surement points. Side-to-side measurements
should not vary more than 1/8 in. (3 mm).
Front-to-rear measurements should have the
rear 1/4 in. (6 mm) to 3/8 in. (10 mm) higher
than the front. If either set of measurements
are not within tolerance, perform the Deck
Leveling Procedure.
Deck Leveling Procedure
1. Position the mower on a smooth, level sur-
face, and set the deck height to the most
common cutting position. Refer to Adjusting
Cutting Height on page 39.
WARNING
The machine must be shut o󰀨 during this
procedure.
Ground
Approx. 36 in. (914 mm)
Long Straight Edge
Right Height
Adjustment Rod
Rear
Measurement
Point
Left Side
Measurement Point
Right Support
Chain Clevis
Left Support
Chain Clevis
Left Height
Adjustment Rod
Front
Measurement Point
Left Rear Deck Support
Chain (Remove Upper
Bolt for Leveling)
Right Side
Measurement
Point
DS60-3 Deck Leveling
