Operating Instructions C23i
48
Dumping the Catcher
DANGER
Do not mow or dump grass within 5 feet
(1.5 meters) of an embankment or retaining
wall with drop o.
For dumping, the catcher either tailgate dumps into
a disposal area or dumps into the optional dump
bag. The dump bag is a reusable nylon fabric bag
designed to conveniently move grass clippings
from the catcher to a remote disposal area or
container.
CAUTION
Use leg muscles and rm footing when lift-
ing the catcher to dump; avoid bending at
the waist and using back muscles in order
to prevent back injury.
Tailgate Dumping
1. Open the back door by lifting on the door
handle.
2. Tilt the catcher back to dump by lifting on the
catcher lift/dump handle on the lower front
corner of the catcher.
3. Lower the catcher smoothly down to the nor-
mal operating position. DO NOT allow the
catcher to drop down—the gas spring, that
holds the catcher in the raised position, is
not a shock absorber for lowering the
catcher.
4. Close the door by pulling down on the door
handle. The door should close smoothly with
the assistance of the gas springs. If the damp-
ening springs are not functioning properly, they
should be replaced to prevent the door from
slamming closed and possibly causing a pinch
point.
Using the Dump Bag
1. Open the back door by lifting on the door
handle.
2. Orient the dump bag with one of the handle
straps on the bag opening facing up.
Hook Bag
on Bumper
Tailgate Door Handle
(Not Visible)

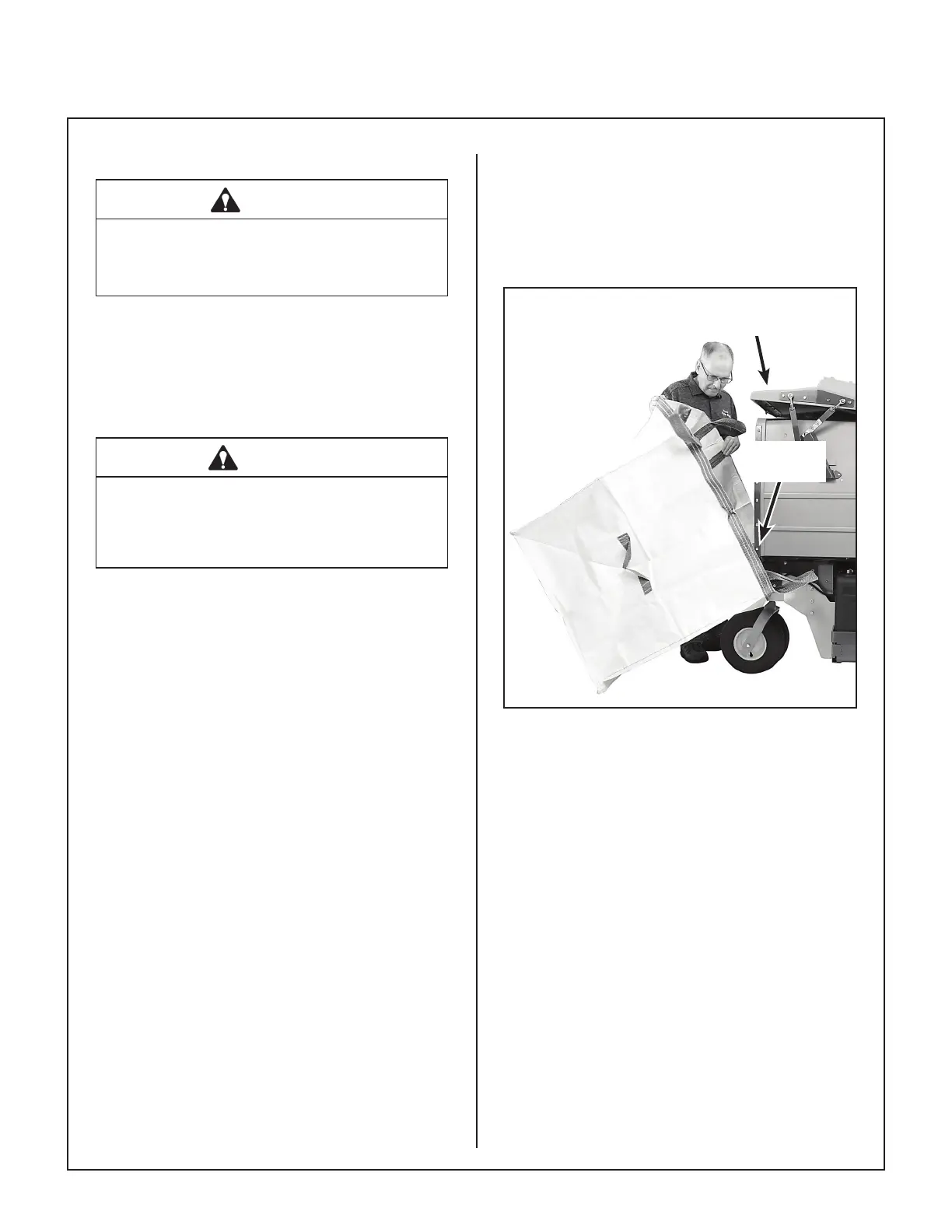

Positioning Dump Bag on Catcher
3. Hook the bottom of the bag over the rear
bumper while lifting on the handle strap on
bag opening.
4. Tilt the catcher back to dump into the bag by
lifting on the catcher lift/dump handle on
the lower front corner of the catcher with the
one hand while continuing to hold up on the
bag strap with the other hand. Refer to
photos for posi tioning the bag and dumping.
