Maintenance Instructions C23i
Cleaning
62
Cylinder Head Cooling Fins
It is essential for performance and longevity of the
air-cooled engine to keep the cylinder head cooling
ns clean and free of obstruction. After every 8
hours of operation, check the performance of the
cooling system by starting the engine, holding a
hand adjacent to the cylinder head, and feeling the
cooling airow. If there is little or no airow, clean
the cooling ns as follows:
DANGER
Make sure to keep hands clear of exhaust
pipe, mu󰀪er, and moving parts when
checking airow.
Check for Airow
with Hand
Cylinder Head
(Not Visible)

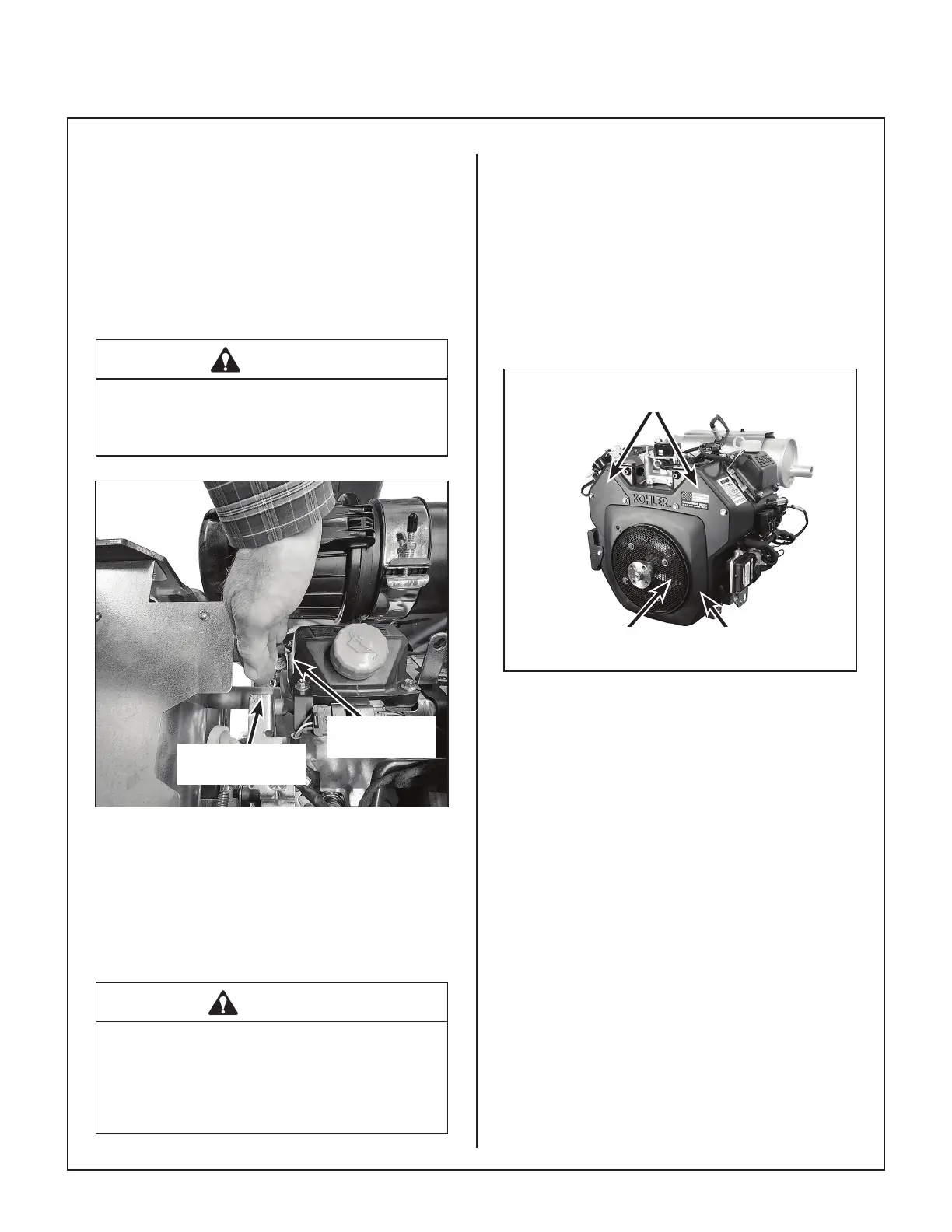

Check Cooling System Airow
Every 100 hours, inspect and clean the cooling
ns (more often when operating in extremely dusty,
dirty conditions). Remove the two (2) cooling n
access panels in the engine shroud and clean the
cooling ns and external surfaces using com-
pressed air. Make sure to reinstall the access
panels before oper ating the engine.
CAUTION
DO NOT use a pressure washer to clean the
cooling system on an air-cooled engine;
mud may form under the cooling shroud on
the cylinder head and cooling fan resulting
in engine overheating.
NOTE: If dirt is packed into the cooling ns it may
be necessary to remove the engine shroud in order
to thoroughly clean the cooling ns.
IMPORTANT: Yearly, it is good maintenance prac-
tice to remove the engine cooling shroud and clean
the cylinder head cooling ns and cooling fan
thoroughly to prevent overheating and extend
engine life. Make sure cooling shroud is reinstalled
properly. This procedure will require removing the
engine from the chassis.
Engine Cooling
Fin Access Panels
Rotating Engine Cooling
Air Intake Screen
Kohler Engine
Shroud
Keep Rotating Cooling Air Intake
Screen and Cooling Fins Clean
