Walker C23i User Manual

72
Maintenance Instructions C23i
Replacing and Repairing
2. To replace the engine belt:
a. Reverse the removal procedure to replace
the engine belt. Start with positioning the
belt around the spring-loaded idler pulley
and route the belt around the remaining
pulleys according the illustrations provided.
Engine Belt
1. To remove the engine belt:
a. Lift up on the belt to move the spring-load-
ed idler pulley and loosen the belt.
b. Slide the belt o󰀨 the pulleys and remove
the belt.

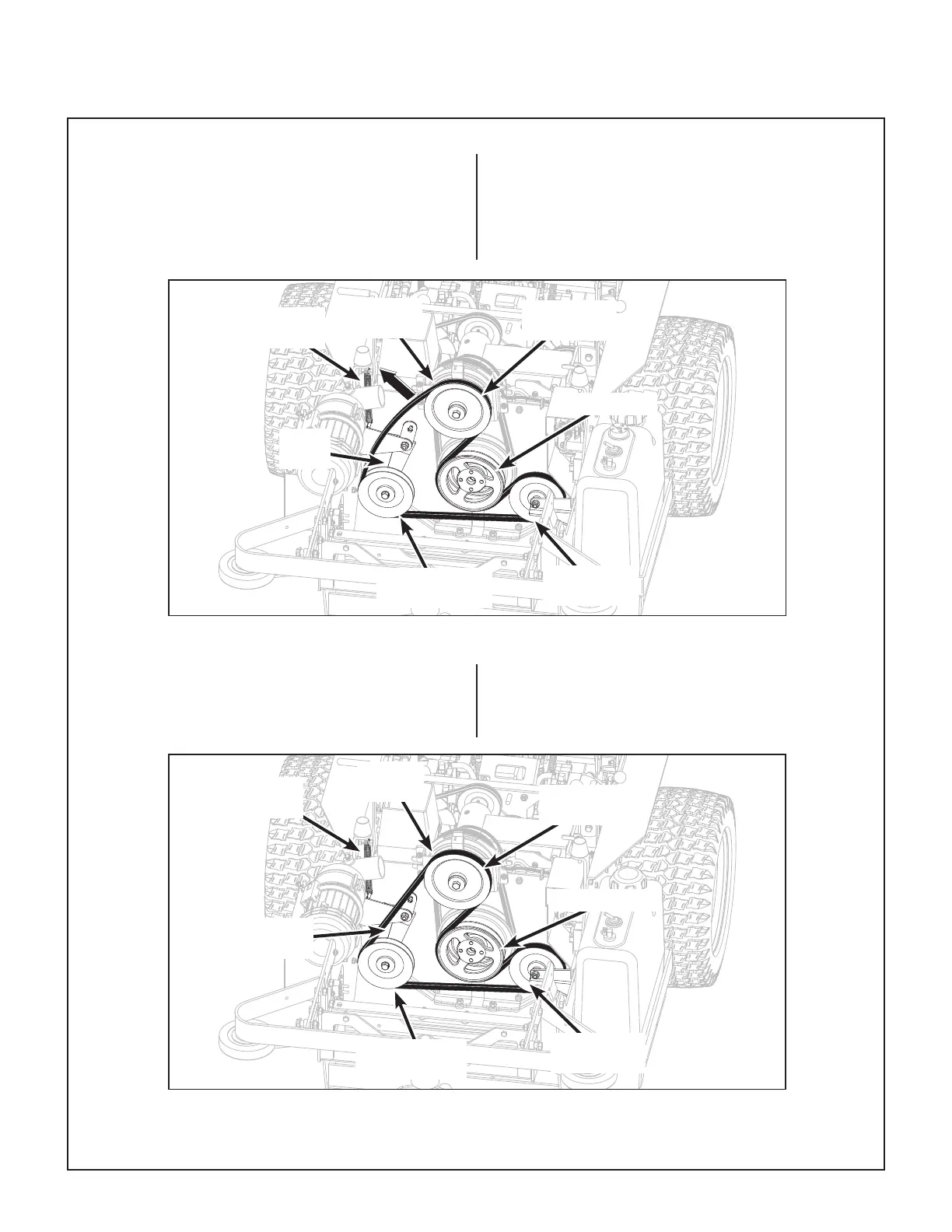

Engine Belt (Disengaged)
Engine Belt (Engaged)
Tension
Spring
Jackshaft
Pulley
Engine Pulley
Spring-Loaded
Idler Pulley
Idler
Arm
Fixed Idler
Pulley
Engine
Belt
Jackshaft
Pulley
Engine Pulley
Tension
Spring
Idler
Arm
Engine
Belt
Spring-Loaded
Idler Pulley
Fixed Idler
Pulley
