Walker C23i User Manual

73
C23i Maintenance Instructions
Replacing and Repairing
Ground Drive Belt
1. To remove the ground drive belt:
a. Raise the spring-loaded idler pulley to
relax belt.
b. Slide belt o󰀨 pulleys, then slowly release
the idler pulley.

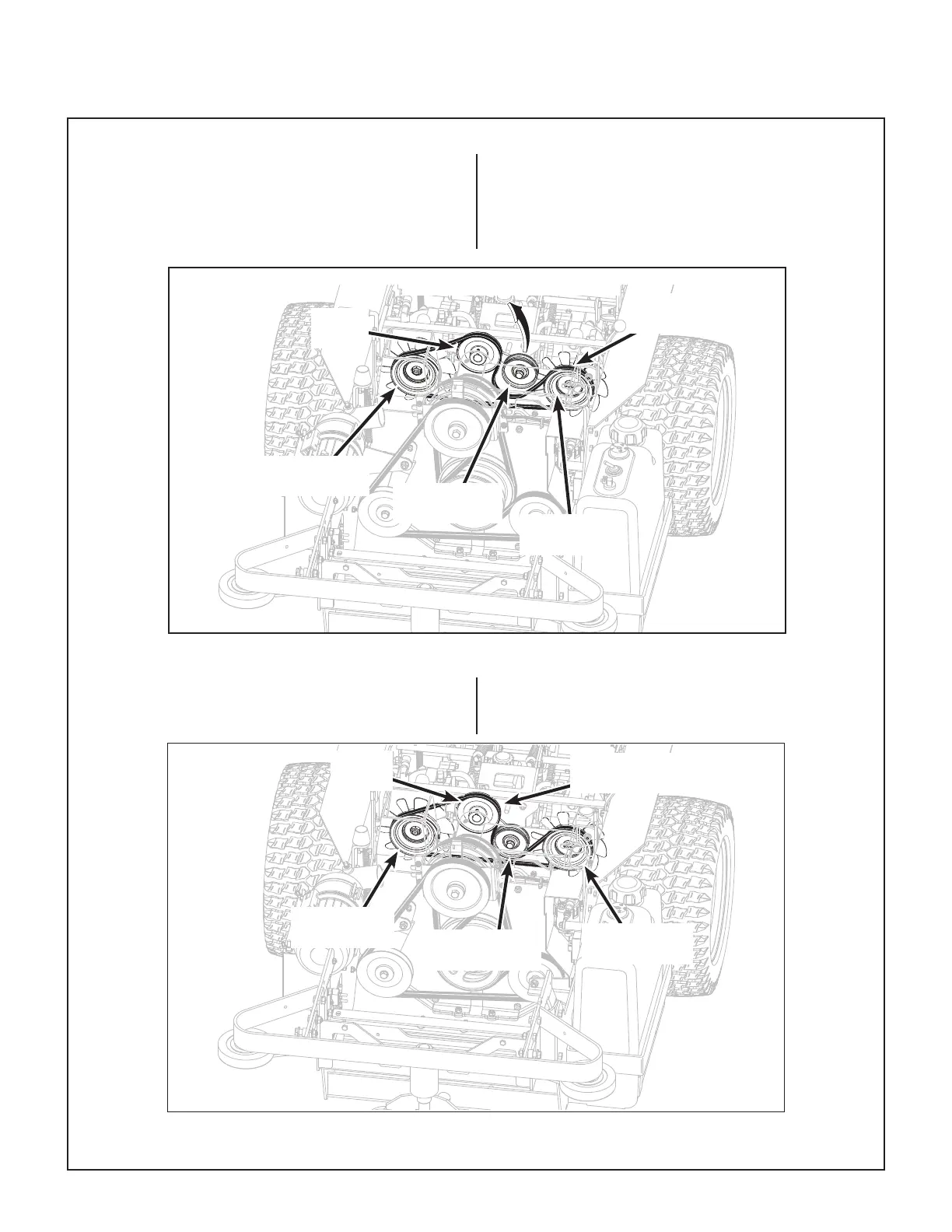

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Raise Idler Pulley to Relax Belt
LH Transaxle
Drive Pulley
Spring-Loaded
Idler Pulley
RH Transaxle
Drive Pulley
Drive
Pulley
Ground Drive
Belt
Spring-Loaded
Idler Pulley
RH Transaxle
Drive Pulley
LH Transaxle
Drive Pulley
Ground Drive
Belt
Drive
Pulley
