Walker C23i User Manual

74
Maintenance Instructions C23i
Replacing and Repairing

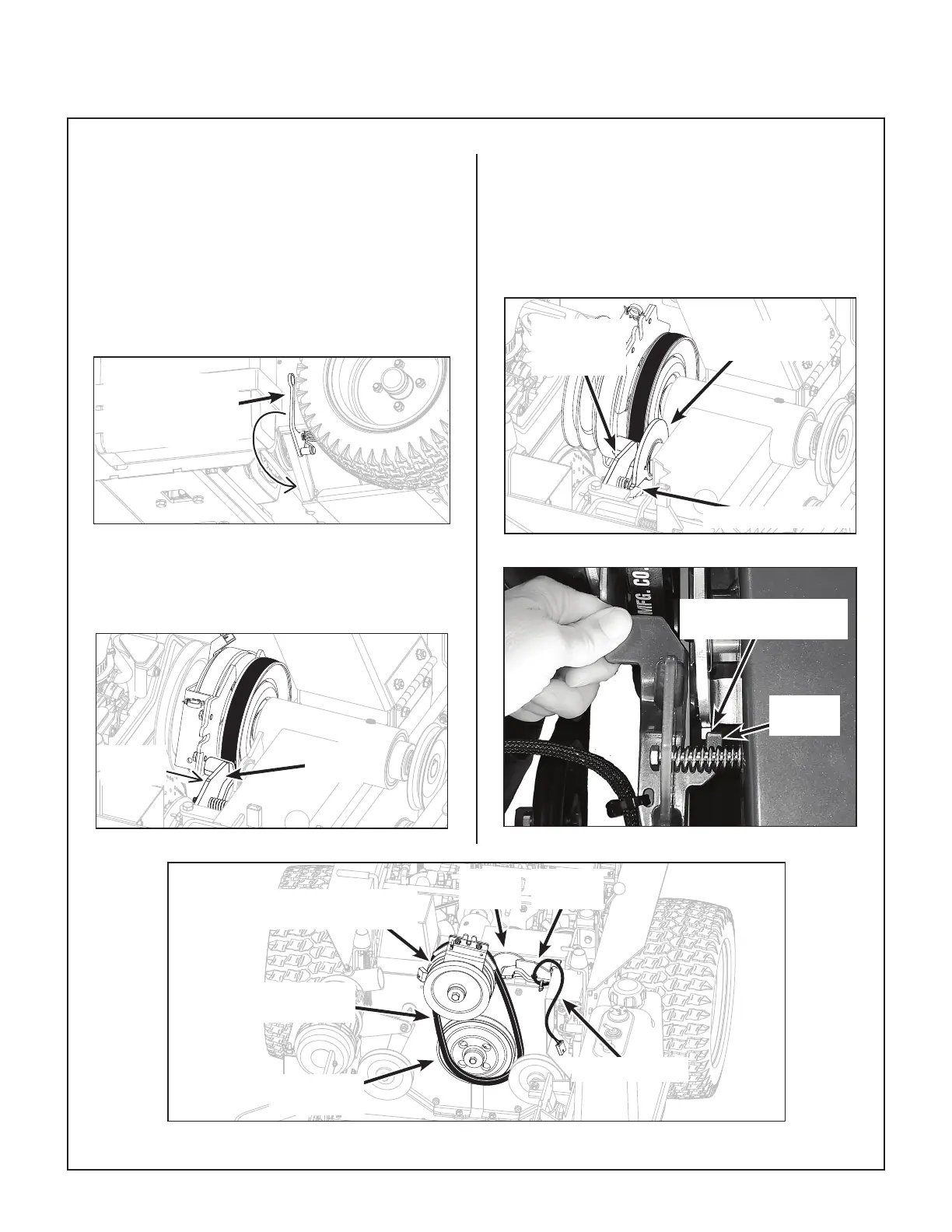

PTO/Blower Drive Belt Removal
PTO/Blower Drive Belt
1. To remove the PTO/blower drive belt:
a. Disconnect the electric clutch plug, and
remove the wire from the plastic clip. Tuck
wire out of the way.
b. Slowly disengage the jackshaft tensioning
spring using the lever behind the RH drive
tire.
Pull Down Lever
to Disengage
Jackshaft
Tensioning Spring
Disengage Jackshaft Tensioning Spring
c. Push the clutch stop arm forward to unlock
clutch body and rotate the clutch 90 de-
grees counterclockwise.
Push
Forward
Clutch
Stop Arm
Push Clutch Stop Arm Forward
d. Again push the clutch stop arm forward,
rotate the tension cam clockwise, and lock
the tension cam with the clutch stop tab.
NOTE: If the cam doesn’t rotate freely, pull up
on the jackshaft to release pressure from the
cam while rotating.
Rotate Tension
Cam Clockwise
Push Clutch
Stop Arm
Forward
Engage Tab to Lock
Lock Tension Cam with Clutch Stop Arm Tab
Clutch
Stop Tab
Cam Tab Secured
Under Clutch Stop Tab
Tension Cam Locked
Rotate Clutch 90 Degrees
Counterclockwise
Clutch
Stop Arm
Tension
Cam
PTO/Blower
Drive Pulley
Tuck Wire Away
PTO/Blower
Drive Belt
